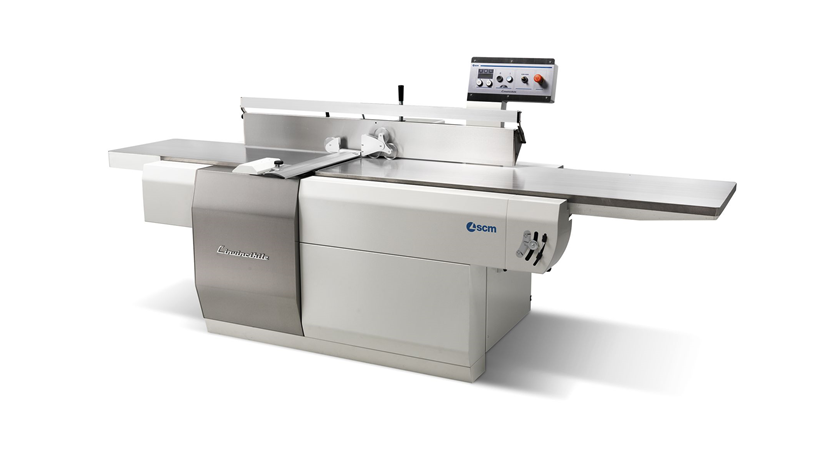

SCM F7X L’Invincible 20″ Long-Bed Jointer 118″ Xylent Cutterhead 230V 3Ph
$19,485.00Current price is: $19,485.00.
- 4 3/4"Cutter Block Diameter
- 5000Cutter Block Speed
- 5000 RPMCutter Head Speed
- 118" x 20 1/2"Cutting Capacity (W x D) (In.)
6 in stock
Overview
SCM F7X L'Invincible 20" Long-Bed Jointer 118" Xylent Cutterhead 230V 3Ph is documented as a Jointer from SCM Group North America Inc. The exact F7X configuration is mapped to GT Machinery Solutions SKU SCMCMF7-X. Recorded technical data includes horsepower: 11 HP, motor power: 9, and voltage: 230V. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Cutter Block Diameter | 4 3/4" |
|---|---|
| Cutter Block Speed | 5000 |
| Cutter Head Speed | 5000 RPM |
| Cutting Capacity (W x D) (In.) | 118" x 20 1/2" |
| Fence Tilt (Deg.) | 0 – 45 |
| Horsepower | 11 HP |
| Infeed Table Length (In.) | 70" |
| Length | 119" |
| Motor Power | 9 |
| Outfeed Table Length (In.) | 46 1/2" |
| Phase | 3 |
| Product Type | Jointer |
| Standard Knife Size (L x W x T)(mm) | 520 x 35 x 3 |
| Voltage | 230V |
| Warranty | 5 Years |
| Weight | 2,988.000 lbs |
| Width | 56" |
| Weight | 2988 lbs |
|---|---|
| Dimensions | 119 × 56 in |
| Brand | Inc., SCM Group North America |
