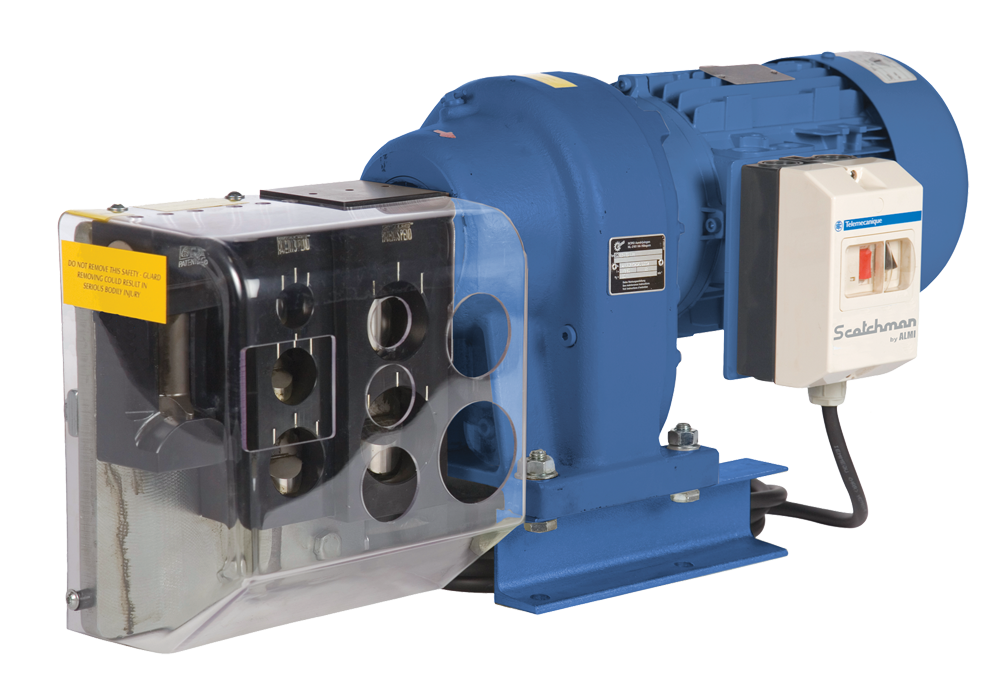

Scotchman AL1-2U 460V Three Phase Electric Tube and Pipe Notcher A030.00009
$7,299.96Current price is: $7,299.96.
- O.D. Pipe Sizes: 3/4", 1", 1-1/4", 1-1/2" and 2"; Schedule 40
- Includes vent notcher to quickly create a uniform vent-notch for galvanizing outflow
- Motor: 3-1/2 hp, 460 Volt, Three Phase
- Manufactured in the Netherlands with a 3-year parts warranty
Scotchman AL1-2U 460V Three Phase Electric Tube and Pipe Notcher A030.00009 is a Scotchman product in the Notchers collection.
Product Details
- O.D. Pipe Sizes: 3/4", 1", 1-1/4", 1-1/2" and 2"; Schedule 40
- Includes vent notcher to quickly create a uniform vent-notch for galvanizing outflow
- Motor: 3-1/2 hp, 460 Volt, Three Phase
- Manufactured in the Netherlands with a 3-year parts warranty
- Description
- Can notch 3/4", 1", 1-1/4", 1-1/2" and 2" up to schedule 40 wall thickness; plus it's equipped with a vent notch to quickly create a uniform vent-notch for galvanizing outflow.
- Features
- Equipped to notch 3/4", 1", 1-1/4", 1-1/2" and 2" up to schedule 40 wall thickness
- Safety guards to surround and protect notching dies
- Electric operation
- Warranty: Three years on parts
- Manufactured in the Netherlands
- Specifications
- Max. Wall Thickness: 0.197" steel 0.118" stainless steel
- 0.197" steel
- 0.118" stainless steel
- Vent Notch: yes
- Profile Applications: Round Tube & Pipe
- Dimensions (L x W x H): 30" x 13-1/2" x 11-1/2"
- Shipping Weight: 230 lbs
Specifications
- Manufacturer: Scotchman
- SKU: A030.00009
- Shipping Method: LTL Freight
- Weight: 230 lb
- Dimensions: 30 × 20 × 15 in
- Country of Origin: Netherlands
- Warranty: 3 Years (Parts)
| Weight | 230.0 lbs |
|---|---|
| Dimensions | 30.0 × 20.0 × 15.0 in |
| Brand | Scotchman |
