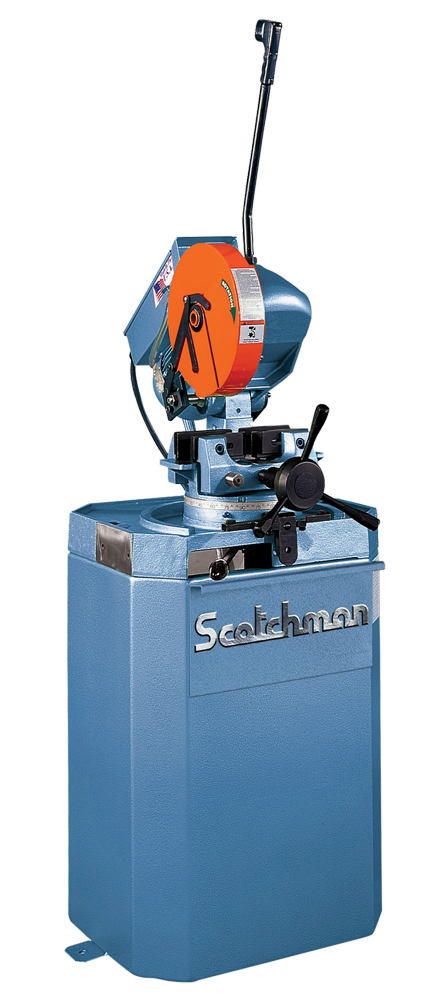

Scotchman CPO 275 208V Manual Three Phase High Turn Dual Speed Circular Cold Saw 076010
$6,562.73Current price is: $6,562.73.
- Maximum Diameter Blade: 275 mm
- Motor: 60/120 RPM, 208 Volt, 3 Phase
- Made in the USA with a 3-year parts warranty
Scotchman CPO 275 208V Manual Three Phase High Turn Dual Speed Circular Cold Saw 076010 is a Scotchman product in the Cold Saws collection.
Product Details
- Maximum Diameter Blade: 275 mm
- Motor: 60/120 RPM, 208 Volt, 3 Phase
- Made in the USA with a 3-year parts warranty
- Features
- Manual double self-centering vise assures burr-free cuts
- Operator controlled trigger switch
- Miter locking device stops: 45 degree left, 90 degree and 45 degree right
- Capable of slotting
- Double reduction, hardened and ground worm and wheel gear box
- Chip drawer
- 7 Gallon flood coolant tank with pump
- One 250 mm diameter HSS blade
- One blade wrench
- One gallon coolant
- Complies with ANSI B11.10 safety standards
- Warranty: Three years on parts
- Made in USA
- Specifications
- Cutting Speeds: HT (High Turn) – designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material: 60/120 rpm
- Maximum Cutting Capacities (with 275 mm blade): Tubing: Round 90°: 3-3/8" Square 90°: 3" x 3" Rectangle 90°: 3" x 2-3/8" Round 45°: 2" Square 45°: 2" x 2" Rectangle 45°: 2" x 2" Solid Round 90°: 1-1/2" Square 90°: 1-1/2" x 1-1/2" Round 45°: 1" Square 45°: 1" x 1"
- Tubing: Round 90°: 3-3/8" Square 90°: 3" x 3" Rectangle 90°: 3" x 2-3/8" Round 45°: 2" Square 45°: 2" x 2" Rectangle 45°: 2" x 2"
- Round 90°: 3-3/8"
- Square 90°: 3" x 3"
- Rectangle 90°: 3" x 2-3/8"
- Round 45°: 2"
- Square 45°: 2" x 2"
- Rectangle 45°: 2" x 2"
- Solid Round 90°: 1-1/2" Square 90°: 1-1/2" x 1-1/2" Round 45°: 1" Square 45°: 1" x 1"
- Round 90°: 1-1/2"
- Square 90°: 1-1/2" x 1-1/2"
- Round 45°: 1"
- Square 45°: 1" x 1"
- Motor: 60/120 RPM, 208 Volt, Three Phase
- Arbor Bore: 32 mm
- Pin Spacing: 2/8/45
- Width: 21-7/8"
- Depth: 43-1/2"
- Height (not including feed handle): 53-1/4"
- Height (floor to vise): 36-1/8"
- Shipping Weight (may vary): 550 lbs.
- Optional Tooling
- 5' to 32' Material Supply Track
Specifications
- Manufacturer: Scotchman
- SKU: 076010
- Shipping Method: LTL Freight
- Weight: 550 lb
- Dimensions: 25 × 45 × 55 in
- Country of Origin: United States of America
- Warranty: 3 Years (Parts)
| Weight | 550.0 lbs |
|---|---|
| Dimensions | 25.0 × 45.0 × 55.0 in |
| Brand | Scotchman |
