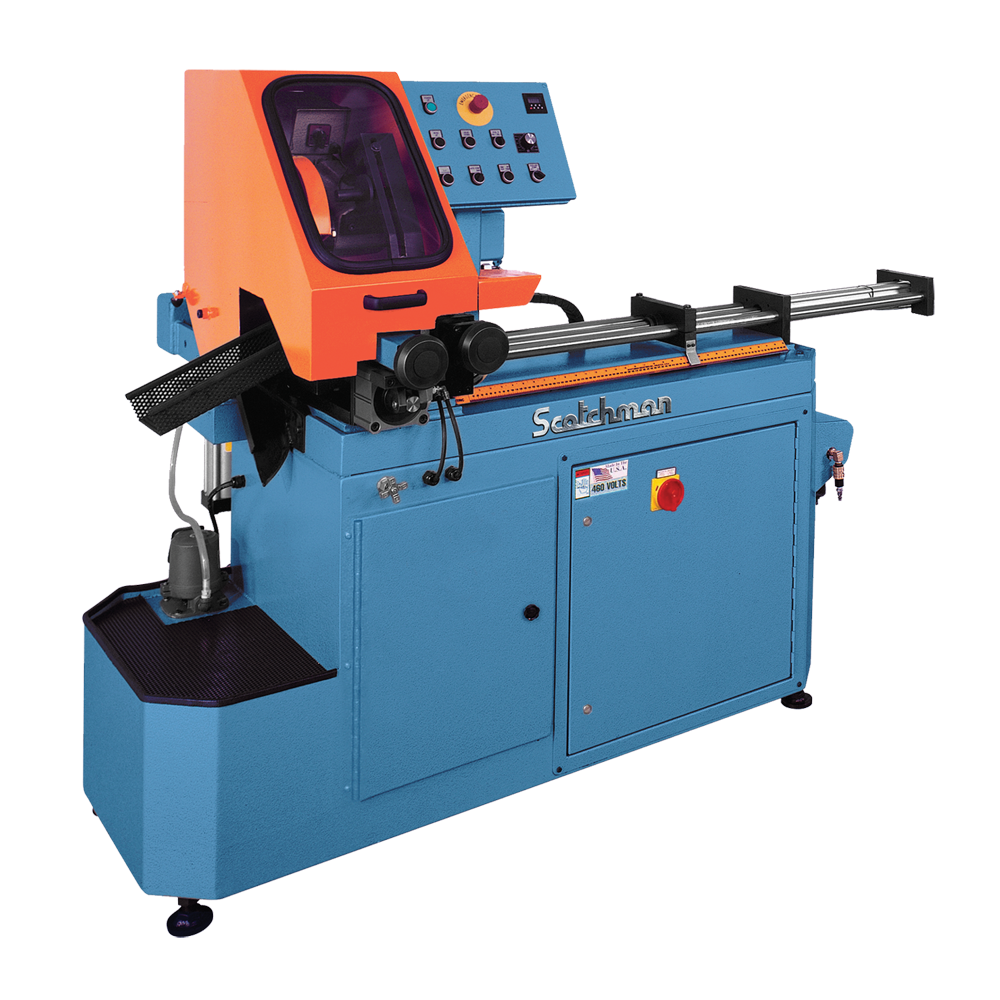

Scotchman CPO 315 HFA 12.5″ Ferrous Hitch Feed Automatic 460V Circular Cold Saw 045035
$20,728.75Current price is: $20,728.75.
- Cutting Speeds: Variable Speed 11 to 177 RPM
- Maximum Saw Blade Diameter: 315 mm
- Motor: 5 hp 460 Volt, 3 Phase
- Made in the USA with a 2-year parts warranty
Scotchman CPO 315 HFA 12.5″ Ferrous Hitch Feed Automatic 460V Circular Cold Saw 045035 is a Scotchman product in the Cold Saws collection.
Product Details
- Cutting Speeds: Variable Speed 11 to 177 RPM
- Maximum Saw Blade Diameter: 315 mm
- Motor: 5 hp 460 Volt, 3 Phase
- Made in the USA with a 2-year parts warranty
- Features
- Fully automatic cycle
- Push button controls actuate the complete cycle
- Interlocking safety hood
- Emergency stop button
- Clamping both sides of blade – highest quality, burr-free cuts
- Blade guides for accurate tolerances
- Mist coolant lubrication system
- Adjustable stroke control on the saw head
- Adjustable down feed control on the saw head for feed rate
- Length scale in both inches and metric
- Quick and easy fine adjustment of length setting
- 30" Single shuttle length (three shuttles max)
- Piece counter
- One saw blade
- One gallon coolant
- Complies with ANSI B11.10 safety standards
- Warranty: Two years on parts
- Made in USA
- Specifications
- Cutting Speeds: 5 hp Variable Speed 11 to 177 RPM
- Maximum Cutting Capacities (based on mild steel): Tubing Round 90°: 3-1/2" Square 90°: 3-1/8" x 3-1/8" Solid Round 90°: Up to 1-3/4" Square 90°: Up to 1-1/2" x 1-1/2"
- Tubing Round 90°: 3-1/2" Square 90°: 3-1/8" x 3-1/8"
- Round 90°: 3-1/2"
- Square 90°: 3-1/8" x 3-1/8"
- Solid Round 90°: Up to 1-3/4" Square 90°: Up to 1-1/2" x 1-1/2"
- Round 90°: Up to 1-3/4"
- Square 90°: Up to 1-1/2" x 1-1/2"
- Length Tolerance: ± 0.006" per index
- Squareness Tolerance: ± 0.002" per dia. inch
- Minimum Cut Length: 1/8"
- Maximum Cut Length: Single Index 30" Double Index 60" Triple Index 90"
- Single Index 30"
- Double Index 60"
- Triple Index 90"
- Motor: 5 hp 460 Volt, Three Phase
- Air Pressure: 90 psi
- Arbor Bore Size: 40 mm
- Pin Spacing: 4/12/64
- Dimensions (L x W x H): 100" x 44" x 64"
- Shipping Weight (may vary): 1,800 lbs.
Specifications
- Manufacturer: Scotchman
- SKU: 045035
- Shipping Method: LTL Freight
- Weight: 1,800 lb
- Dimensions: 100 × 44 × 64 in
- Country of Origin: United States of America
- Warranty: 2 Years (Parts)
| Weight | 1800.0 lbs |
|---|---|
| Dimensions | 100.0 × 44.0 × 64.0 in |
| Brand | Scotchman |
