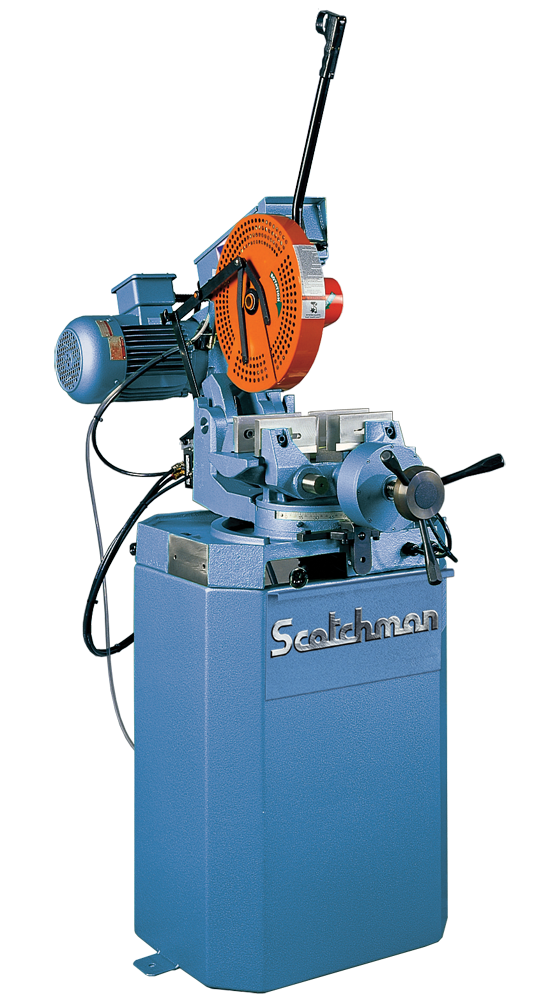

Scotchman CPO 350 NFPK 14″ Manual Non-Ferrous 230V Three Phase Circular Cold Saw 076727
$8,629.73Current price is: $8,629.73.
- Cutting Speeds: 5 hp, 3,000 rpm
- Air operated double self-centering vise assures burr-free cuts
- Motor: 5 hp, 230 Volt, 3 Phase
- Made in the USA with a 3-year parts warranty
Scotchman CPO 350 NFPK 14″ Manual Non-Ferrous 230V Three Phase Circular Cold Saw 076727 is a Scotchman product in the Cold Saws collection.
Product Details
- Cutting Speeds: 5 hp, 3,000 rpm
- Air operated double self-centering vise assures burr-free cuts
- Motor: 5 hp, 230 Volt, 3 Phase
- Made in the USA with a 3-year parts warranty
- Features
- Operator controlled trigger switch
- Miter capabilities 45 degrees left to 45 degrees right
- Miter locking device: Quick, accurate settings-stops at 45 degrees left, 90 degrees, and 45 degrees right
- Capable of slotting
- Positive-driven cogged belt system
- Chip drawer
- Mist coolant lubrication system
- One 350 mm diameter carbide-tipped blade
- One blade wrench
- One gallon coolant
- Complies with ANSI B11.10 safety standards
- Warranty: Three years on parts
- Made in USA
- Specifications
- Max. Cutting Capacities (Non-Ferrous & PVC): Tubing: Round 90°: 4-1/2" Square 90°: 4-1/4" x 4-1/4" Rectangle 90°: 5-1/2" x 4" Round 45°: 4-1/4" Square 45°: 4” x 4" Rectangle 45°: 4" x 4" Solid Round 90°: 3" Square 90°: 3" x 3" Round 45°: 2-1/2" Square 45°: 2-1/2" x 2-1/2"
- Tubing: Round 90°: 4-1/2" Square 90°: 4-1/4" x 4-1/4" Rectangle 90°: 5-1/2" x 4" Round 45°: 4-1/4" Square 45°: 4” x 4" Rectangle 45°: 4" x 4"
- Round 90°: 4-1/2"
- Square 90°: 4-1/4" x 4-1/4"
- Rectangle 90°: 5-1/2" x 4"
- Round 45°: 4-1/4"
- Square 45°: 4” x 4"
- Rectangle 45°: 4" x 4"
- Solid Round 90°: 3" Square 90°: 3" x 3" Round 45°: 2-1/2" Square 45°: 2-1/2" x 2-1/2"
- Round 90°: 3"
- Square 90°: 3" x 3"
- Round 45°: 2-1/2"
- Square 45°: 2-1/2" x 2-1/2"
- Motor: 5 hp, 230 Volt, Three Phase
- Max. Diameter Blade: 350 mm
- Arbor Bore: 40 mm
- Pin Spacing: 4/12/64
- Width: 21-7/8"
- Depth: 43-1/2"
- Height (not including feed handle): 56-1/4"
- Height (floor to vise): 37-7/16"
- Shipping Weight (may vary): 655 lbs.
Specifications
- Manufacturer: Scotchman
- SKU: 076727
- Shipping Method: LTL Freight
- Weight: 655 lb
- Dimensions: 25 × 45 × 60 in
- Country of Origin: United States of America
- Warranty: 3 Years (Parts)
| Weight | 655.0 lbs |
|---|---|
| Dimensions | 25.0 × 45.0 × 60.0 in |
| Brand | Scotchman |
