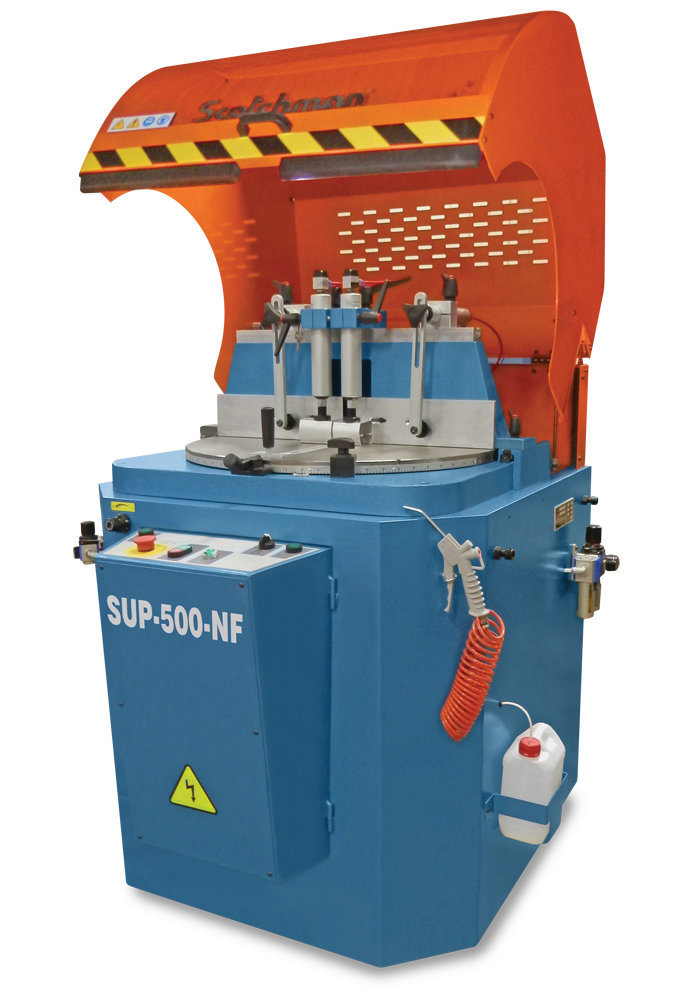

Scotchman SUP-500 20″ Non-Ferrous 230V Three Phase Semi-Automatic Upcut Circular Cold Saw 694
$12,918.75Current price is: $12,918.75.
- Maximum Diameter Blade: 500 mm
- Cutting Speed: 3,000 RPM
- Motor: 5.5 hp, 230 Volt, 3 Phase
- Made in the Spain with a 3-year parts warranty
Scotchman SUP-500 20″ Non-Ferrous 230V Three Phase Semi-Automatic Upcut Circular Cold Saw 694 is a Scotchman product in the Cold Saws collection.
Product Details
- Maximum Diameter Blade: 500 mm
- Cutting Speed: 3,000 RPM
- Motor: 5.5 hp, 230 Volt, 3 Phase
- Made in the Spain with a 3-year parts warranty
- Features
- Precision miter upcut non-ferrous saw
- Miter capabilities with fixed ftops at 22.5°, 45°, 90°, 135° & 157.5°
- Safety hood with safety interlock switch
- Blade door with safety interlock switch
- Dual palm buttons
- Adjustable feed rate on saw head
- Two horizontal pneumatic clamps
- Two vertical pneumatic clamps
- Capable of slotting
- Moveable back fence for larger capacity
- One gallon coolant
- Mist coolant lubrication system
- One 500 mm diameter, 120-tooth carbide blade
- One blade wrench
- Air hose
- Chip collection drawer in base and a 4-3/4" chip collection port
- Adjustable leveling pads
- Meets CE standards
- Warranty: Three years on parts
- Made in Spain
- Specifications

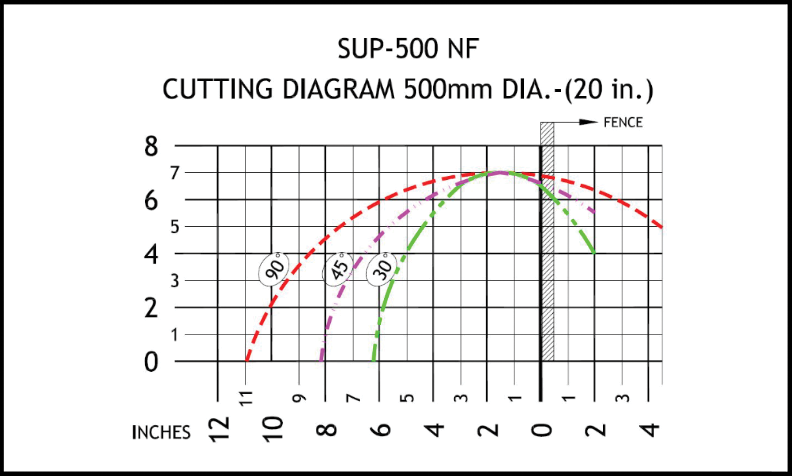

- Maximun Cutting Capacities (Non-Ferrous & PVC ): Round 90°: 7" Square 90°: 6" Rectangle 90°: 11-3/4" x 5" Round 45°: 7" Square 45°: 4-3/4" Rectangle 45°: 5-3/4" x 4-3/4"
- Round 90°: 7"
- Square 90°: 6"
- Rectangle 90°: 11-3/4" x 5"
- Round 45°: 7"
- Square 45°: 4-3/4"
- Rectangle 45°: 5-3/4" x 4-3/4"
- Motor Rate: 5.5 HP
- Motor Options: 230 Volt, Three Phase
- Air Pressure: 90 psi
- Arbor Bore: 50 mm
- Width: 42"
- Depth: 45-3/8"
- Height (top of hood): 60-1/4"
- Height (floor to table): 38-5/8"
- Shipping Weight (may vary): 1,200 lbs.
Specifications
- Manufacturer: Scotchman
- SKU: 694
- Shipping Method: LTL Freight
- Weight: 1,200 lb
- Dimensions: 48 × 48 × 48 in
- Country of Origin: Spain
- Warranty: 3 Years (Parts)
| Weight | 1200.0 lbs |
|---|---|
| Dimensions | 48.0 × 48.0 × 48.0 in |
| Brand | Scotchman |
