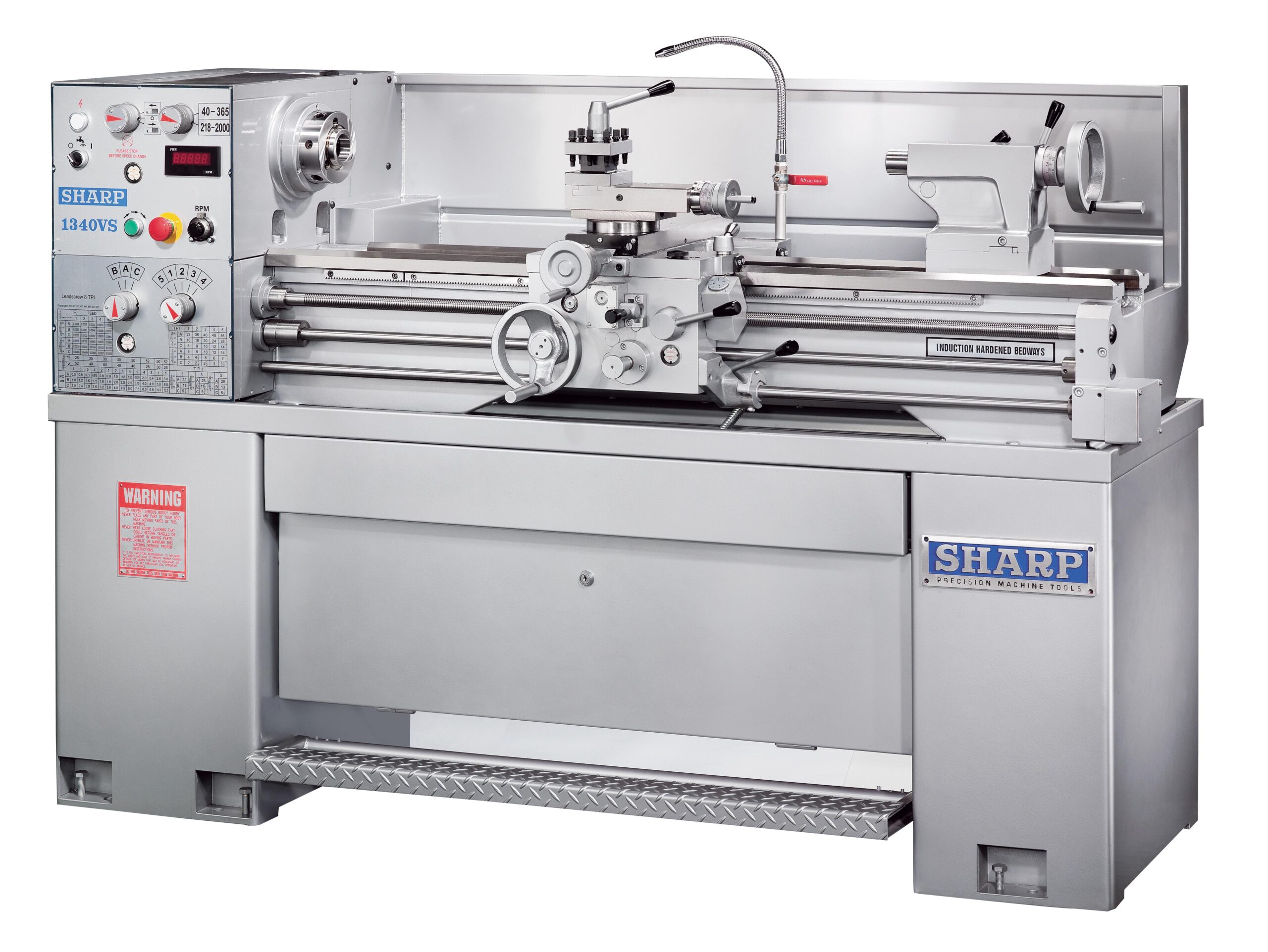

Sharp Industries 220V 13” x 40” Precision Lathe with Digital Variable Speed 1340VS

Sharp Industries 220V 13” x 40” Precision Lathe with Digital Variable Speed 1340VS is a Sharp Industries product in the Lathes collection.

Product Details

• Spindle Bore: 1.56”
• Swing Over Bed: 13”
• Spindle Speed: 40 – 2000 RPM
• Motor: 220V, 3 HP
• Description
• The 13” swing precision lathe offer simple and easy operation for doing light work with all the features as a larger engine lathe. The economy value is ideal for schools, training for the next generation of skilled workers. This manual lathe is ideal for individual home machine shops. The electrics will accept single phase power supply.
• Standard Features
• 3 HP motor
• Digital Vari Speed (DVS) (40-2,000 rpm)
• Cross slide movement control at apron
• D1-4 camlock spindle 1 ½” bore
• Gap bed
• Hardened and ground chrome-moly gears
• 3-jaw 8" chuck, steady rest (1/4" – 3-3/4")
• Removeable gap, back plate
• Coolant system, 4 way toolpost
• Full length splash guard
• Center sleeves, dead center, tool kit
• Wired 220v
• Can run on single phase motor
• Specifications
• Swing Over Cross Slide: 7.6”
• Swing Over Gap: 19”
• Gap Width (In Front of Face Plate): 9.43”
• Distance Between Centers: 40”
• No. of Spindle Speeds: Variable (high/low)
• Spindle Nose: D1-4 camlock
• Threads, Number: 2-56 TPI
• Longitudinal Feeds: 0.0016 – 0.046”
• Cross Feeds: 0.0005 – 0.015”
• Leadscrew Pitch, Diameter: 8 TPI, 0.87”
• Cross Slide Travel: 6.18”
• Compound Travel: 3.75”
• Compound Width: 4.5”
• Bed Length: 64”
• Bed Width: 8.5”
• Quill Diameter: 1.56”
• Quill Travel: 4”
• Quill Center Taper: MT #3
• Spindle Motor: 3 HP
• Voltage: 220V
• Phase: 3 Ph
• Power Consumption(220V): 3KVA / 10 amps
• Power Consumption(440V): 3KVA / 5 amps
• Approximate Weight: 1,550 lbs
• Dimensions: 6.19’ x 1.68’ x 3.81’
• Available Options & Accessories
• 440V available with the purchase of an additional transformer
• 1340VS-K Package (Includes): 13" X 40", Digital Vari Speed (40-2,000rpm), 1.56" Bore, D1-4 Camlock, 3 Hp 2 Axes Digital Readout (Newall), Follow Rest, Chuck Guard with Limit Switch, Work Light
• 13" X 40", Digital Vari Speed (40-2,000rpm), 1.56" Bore, D1-4 Camlock, 3 Hp
• 2 Axes Digital Readout (Newall), Follow Rest, Chuck Guard with Limit Switch, Work Light
• 3-jaw chuck , different sizes
• 4-jaw chuck, different sizes
• Chuck guard w/ limit switch
• Follow rest
• Roller jaw set for steady rest
• Taper attachment
• Quick change tool holder set (7 pcs. Holder) • Live center – MT#3
• Drill & arbors • Face plate (12″)
• 4-way carriage stop
• Micrometer carriage stop safety cover on end of spindle
• Halogen work light
• tool guard (at front of compound slide with limit switch)
• Lead screw cover (accordion style)
• 5C collet set (1/8″ to 1-1/16″ by 1/16″) 16 pcs.
• 5C lever collet closer

Specifications

• Manufacturer: Sharp Industries
• SKU: 1340VS
• Shipping Method: LTL Freight
• Weight: 1,900 lb
• Dimensions: 30 × 77 × 60 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
