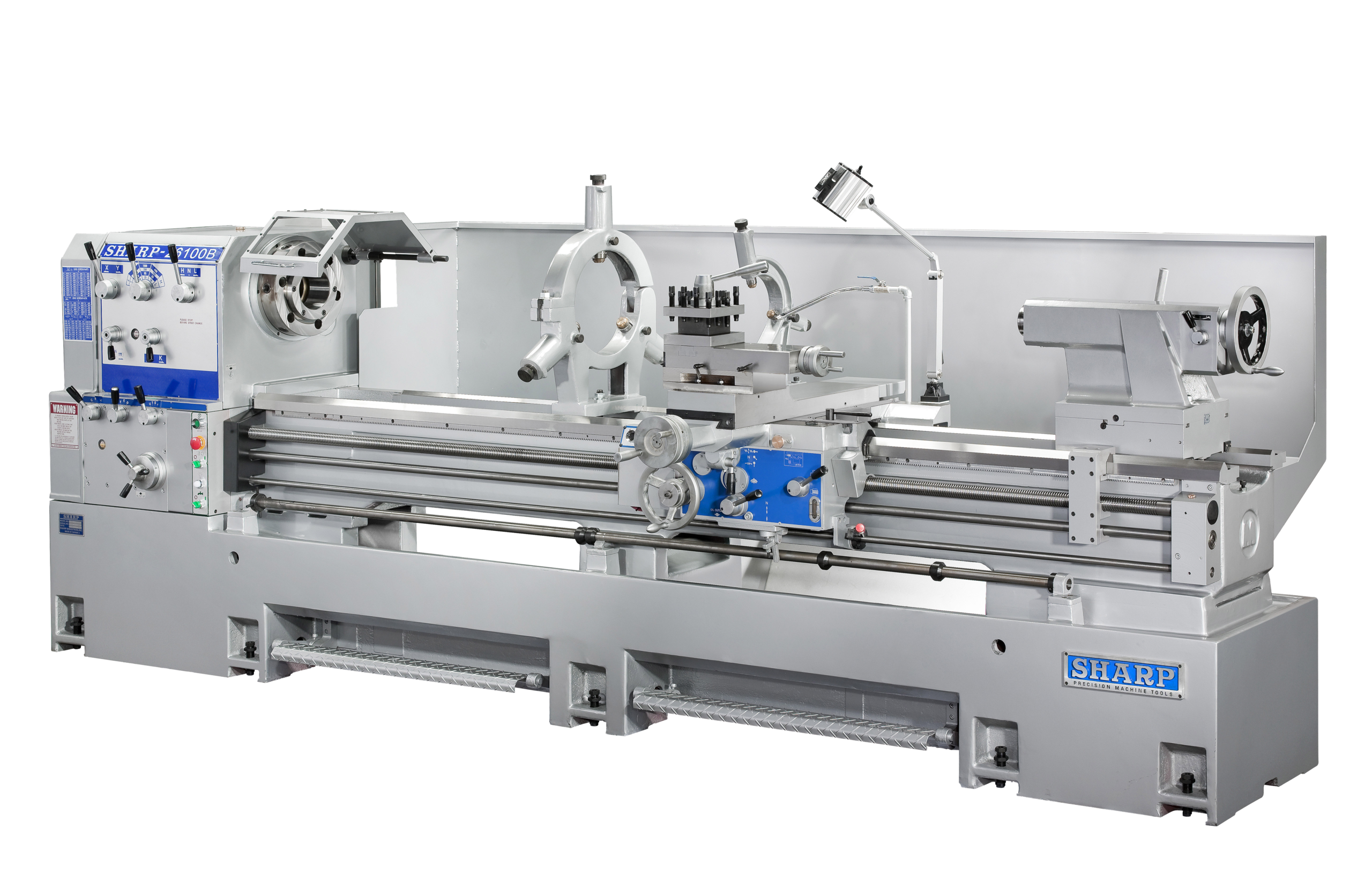

Sharp Industries 220V 22” x 40” B Series Heavy Duty Precision Lathes 2240B

Sharp Industries 220V 22” x 40” B Series Heavy Duty Precision Lathes 2240B is a Sharp Industries product in the Lathes collection.

Product Details

• Swing Over Bed: 22”
• Distance Between Centers: 40”
• Spindle Speed: 12 Speeds (10-1,000 RPM)
• Motor: 220V, 15 HP
• Description
• This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.
• Standard Features
• D1-11 camlock
• 4.5" spindle bore
• 15 hp motor
• 12 speeds (10-1,000 rpm)
• Quick change gearbox
• One piece cast meehanite bed
• Direct selection for inch / metric threads
• Double chucks available as option
• 4-jaw 16" chuck, face plate (20")
• Steady rest (4" – 11.5"), 4 ways toolpost
• Coolant system, halogen light
• 4-way carriage stop
• Splash guard & 16" chuck guard
• Tailstock, follow rest, tool kit
• Rapid transverse on longitudinal (on 100" and up only)
• Specifications
• Swing Over Cross Slide: 13.2”
• Swing Over Gap: 31”
• Spindle Speed: 10 – 1,000 RPM
• No. of Spindle Speeds: 12
• Spindle Nose: D1-11 camlock
• Spindle Bore: 4.5”
• Threads, Number: 2-56 TPI, 44
• Modular Threads, Number: 0.019 – 0.55”, 24
• Diametral Pitch Threads, Number: 0.157 – 2.20”, 36
• Longitudinal Feeds: 0.0022 – 0.032”/Rev
• Cross Feeds: 0.00026 – 0.035”/Rev
• Leadscrew Pitch, Diameter: 4 tpi, 1.5”
• Cross Slide Travel: 14.75”
• Compound Travel: 8”
• Compound Width: 6”
• Bed Length: n/a
• Bed Width: 15.75”
• Quill Diameter: 3”
• Quill Travel: 6.5”
• Quill Center Taper: MT #5
• Spindle Motor: 15 HP
• Voltage: 220V
• Phase: 3 Ph
• Power Consumption (220V): 16 KVA / 45 amps
• Approximate Weight: 5,280 lbs
• Dimensions: 7.08’ x 3.41’ x 4.16’
• Available Options & Accessories
• 3-jaw chuck, different sizes
• 4-jaw chuck, different sizes
• Taper attachment
• Chuck guard w/ limit switch
• Tool guard w/ limit switch,at front of compound
• Lead screw wrapped around screw (accordion style)
• Lead screw guard, cover entire front of machine bed
• Safety cover at the end of spindle
• UL or CSA electrical components, UL spindle motor, CSA pump motor
• Steady rest
• Quick change tool holder (aloris) (7 pcs holder) 1.25″ tool
• Live center – (dual bearing) MT #5
• 5C lever collet closer
• 5C collet set (1/8 to 1/16″ x 1/16″) (16 pcs) • Micrometer carriage stop
• Roller jaws set (3 pc)

Specifications

• Manufacturer: Sharp Industries
• SKU: 2240B (220V)
• Shipping Method: Flatbed
• Weight: 5,280 lb
• Dimensions: 94 × 46 × 77 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
