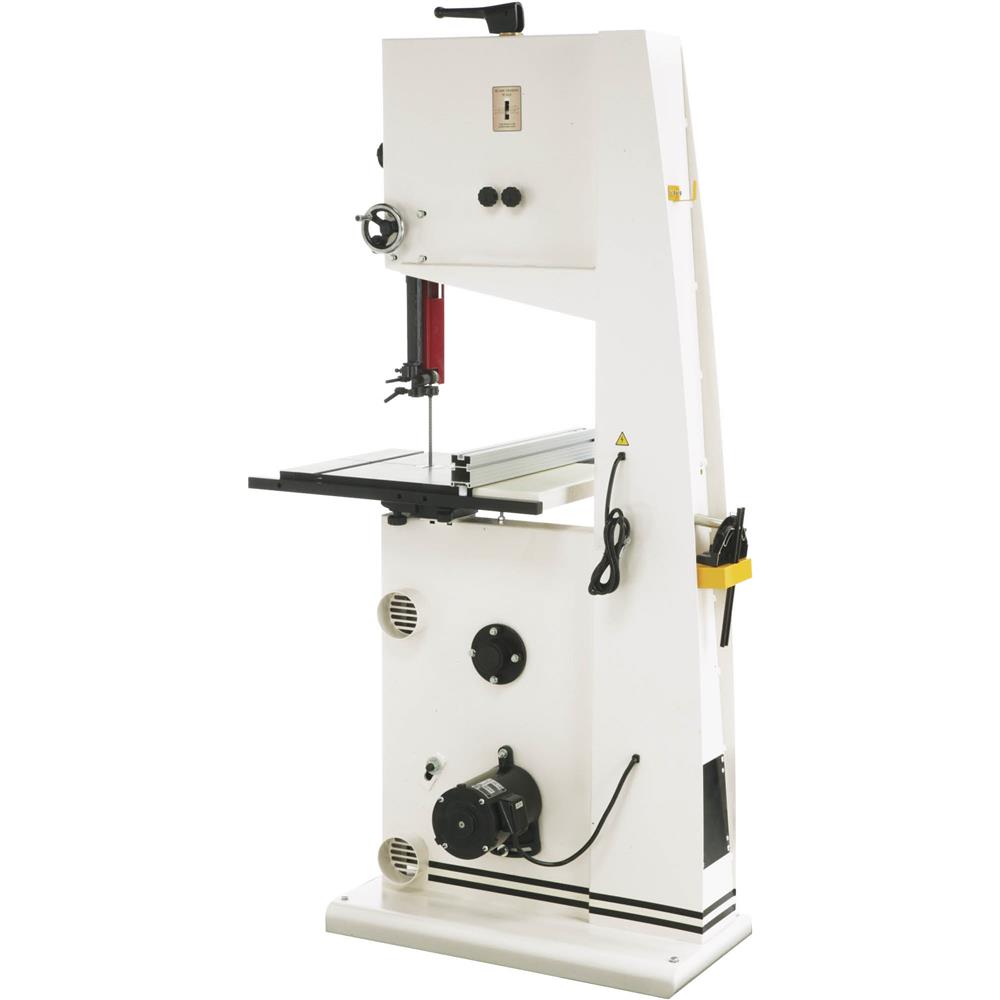

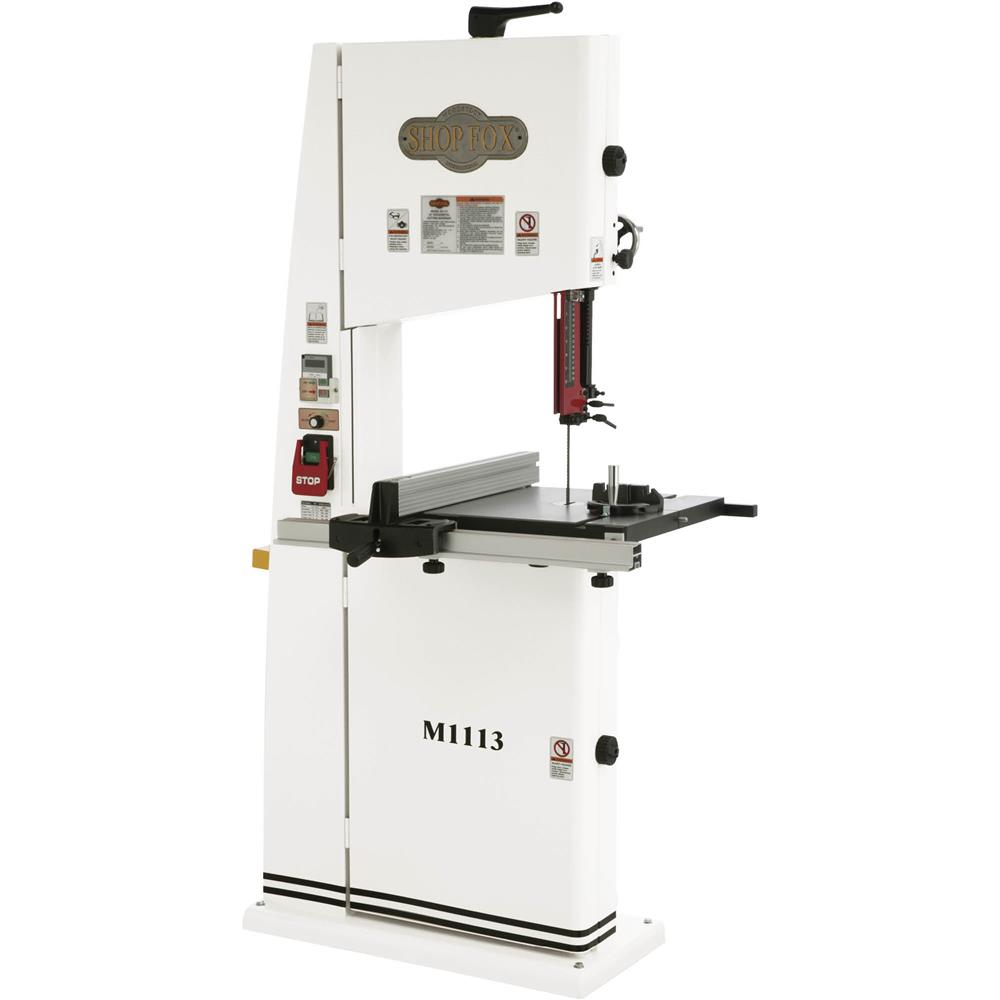

Shop Fox 220V Three Phase Variable Speed Vertical Bandsaw M1113
$2,174.25Current price is: $2,174.25.
- Motor Speed: 1725RPM
- Throat Capacity: 17-1/2"
- Blade Speed: Variable, 150-3000 FPM
- Motor: 1.5 HP, 220V, 3 Phase
Shop Fox 220V Three Phase Variable Speed Vertical Bandsaw M1113 is a Shop Fox product in the Band Saws collection.
Product Details
- Motor Speed: 1725RPM
- Throat Capacity: 17-1/2"
- Blade Speed: Variable, 150-3000 FPM
- Motor: 1.5 HP, 220V, 3 Phase
- Description

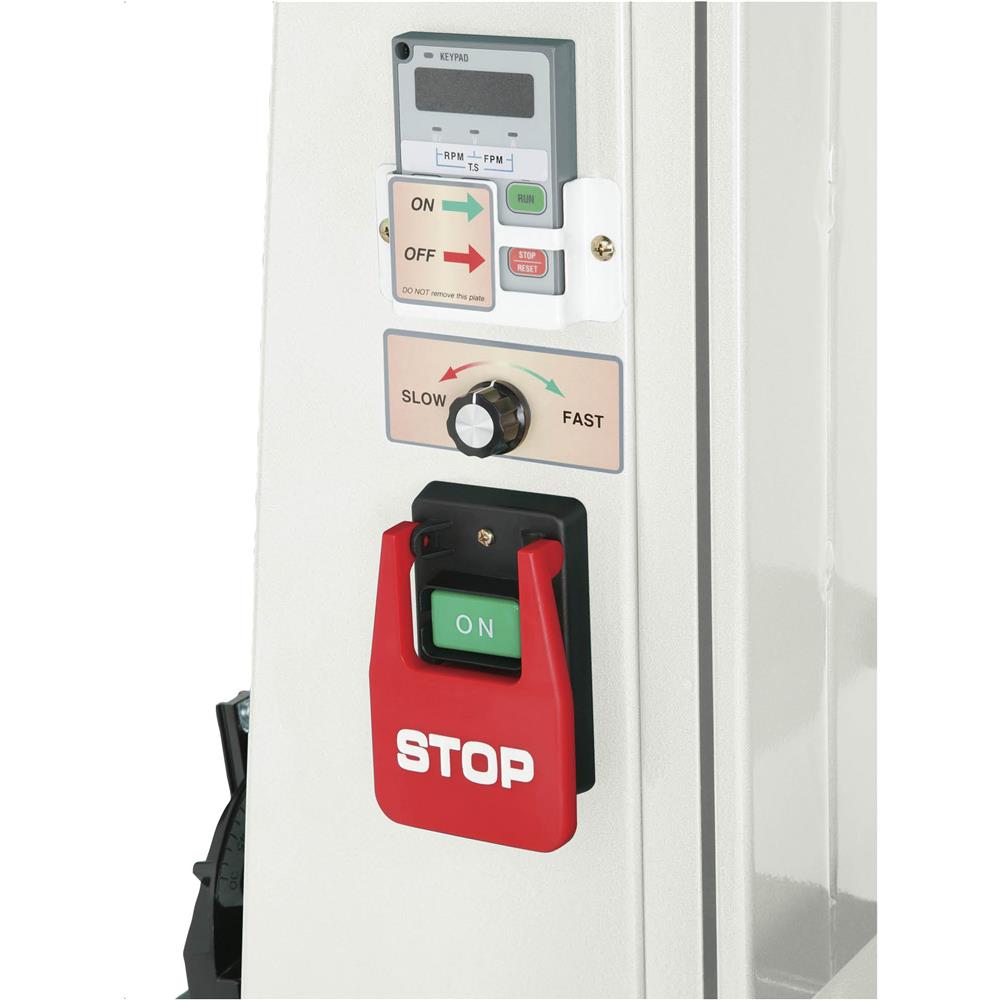

- A VFD (Variable Frequency Drive) with digital readout provides infinitely variable blade speeds between 150 and 3000 FPM, making this saw great for cutting wood and metal alike! Just turn the speed control dial to set the perfect cutting speed for each type of material you're cutting. Besides providing the variable-speed control, the VFD also allows this machine to take full advantage of the high-torque/low-speed characteristics of a 3-phase motor—while only requiring a single-phase power supply. The vertical cutting configuration and massive cast-iron table also makes it easy to feed intricate, curved cuts. All in all, the strong versatility of this 18" Vertical Wood/Metal Bandsaw makes it an ideal choice when shop space is limited and the range of profect types is diverse!
- Features
- Precision‐Ground Cast‐Iron Table
- Variable Frequency Drive Speed Control
- Left And Right Table Tilting Control
- Upper And Lower Blade Guides
- Rack And Pinion Adjustment on Upper Blade Guide Support
- Fully Balanced, Cast‐Iron Wheels with Rubber Tires
- Quick‐Release Blade Tension
- Steel Guide Blocks
- Two Dust Ports
- Wheel Brush On Lower Wheel
- Blade Tension Scale with Magnified Cursor
- Twin Drive Belts
- Includes Rip Fence and Miter Gauge
- Rip Fence Comes with Right And Left Reading Indicators, T‐Slots, Dead Lift Quick Release, Ball Bearing Slide, Solid Lever Lock
- Specifications
- Motor: 1.5 Hp, 220V, Three Phase
- Full-Load Current Rating: 5a
- Minimum Circuit Size: 15a
- Connection Type: Cord & Plug
- Power Cord Included: Yes
- Power Cord Length: 6ft.
- Power Cord Gauge: 16 AWG
- Plug Included: No
- Recommended Plug Type: 6-15
- Switch Type: On/Off Push Button Switch W/Large Shut‐Off Paddle
- Inverter (VFD) Type: Rhymebus Rm5g‐200v 1
- Inverter (VFD) Size: 1 Hp
- Amps: 5a
- Speed: 1725 RPM
- Type: TEFC Induction
- Drive: V‐Belt
- Bearings: Shielded & Permanently Lubricated
- Max. Cutting Height: 12"
- Blade Length: 133"
- Blade Size Range: 1/8"—1-1/4"
- Table Tilt: 45° Right, 5° Left
- Floor To Table Height: 37-1/4"
- Overall Size (L X W X H): 40" X 76" X 31"
- Approximate Shipping Weight: 327 Lbs.
- Optional Accessories
- D3959 — 133" x 1/8" x .025" x 14 TPI Raker Bandsaw Blade
- D3960 — 133" x 1/4" x .025" x 6 TPI Hook Bandsaw Blade
- D3961 — 133" x 1/4" x .025" x 18 TPI Raker Bandsaw Blade
- D3962 — 133" x 3/8" x .025" x 10 TPI Raker Bandsaw Blade
- D3963 — 133" x 1/2" x .025" x 6 TPI Hook Bandsaw Blade
- D3964 — 133" x 1/2" x .025" x 10 TPI Raker Bandsaw Blade
- D3965 — 133" x 3/4" x .032" x 3 TPI Hook Bandsaw Blade
- D3966 — 133" x 1" x .035" x 2 TPI Hook Bandsaw Blade
Specifications
- Manufacturer: Shop Fox
- SKU: M1113
- UPC: 754001511132
- Shipping Method: LTL Freight
- Weight: 430 lb
- Dimensions: 19 × 33 × 79 in
- Country of Origin: Taiwan
- Warranty: 2 Years (Parts)
| Weight | 430.0 lbs |
|---|---|
| Dimensions | 19.0 × 33.0 × 79.0 in |
| Brand | Shop Fox |
