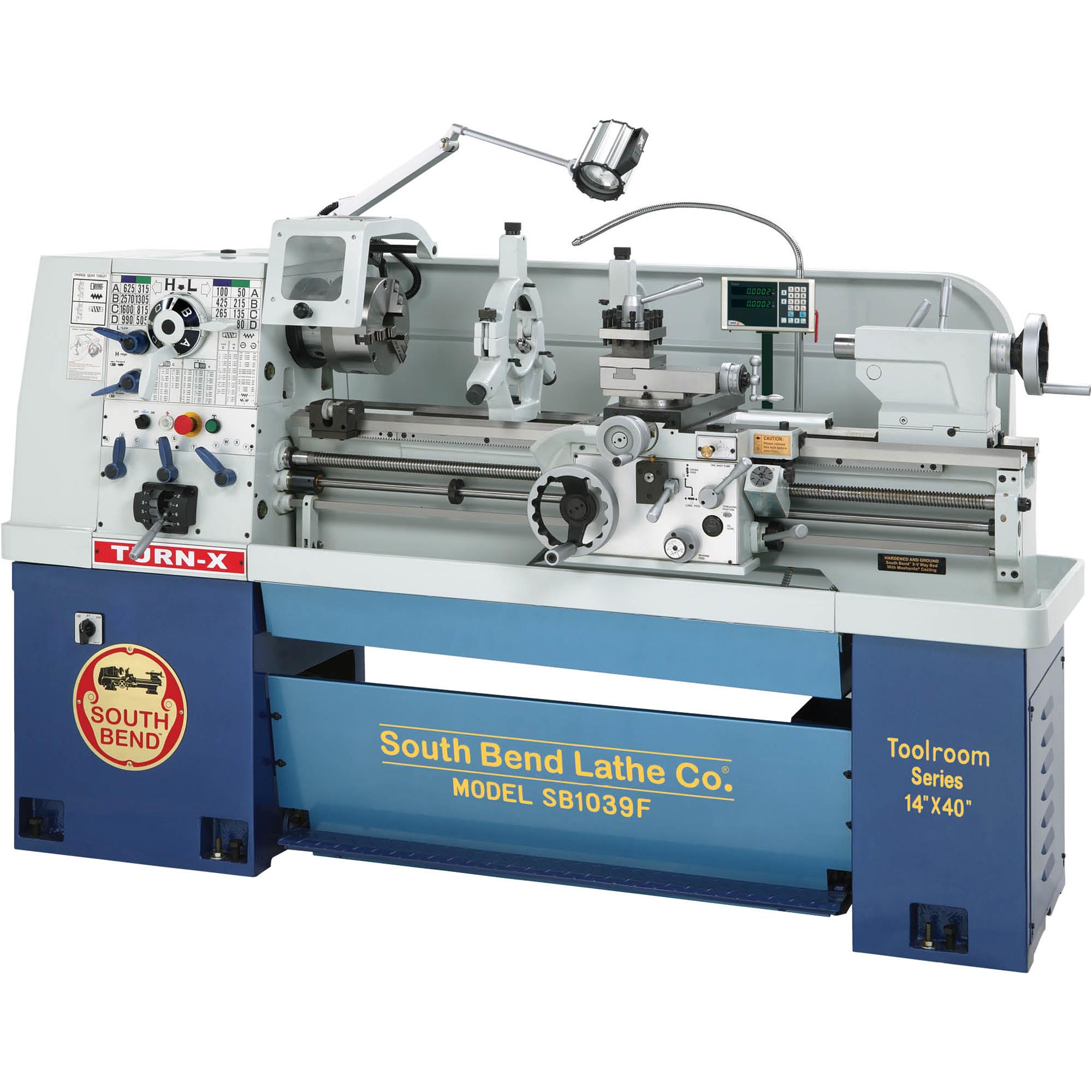

South Bend 14” x 40” 16-Speed 220V Three Phase Lathe with Fagor DRO SB1039F
$20,796.75Current price is: $20,796.75.
- Spindle motor size: 5 HP/ 2-1/2 HP, 220V, 3-phase, 14A/10A
- Swing over bed: 14"
- Distance between centers: 40"
- Width of bed: 9"
South Bend 14” x 40” 16-Speed 220V Three Phase Lathe with Fagor DRO SB1039F is a South Bend product in the Lathes collection.
Product Details
- Spindle motor size: 5 HP/ 2-1/2 HP, 220V, 3-phase, 14A/10A
- Swing over bed: 14"
- Distance between centers: 40"
- Width of bed: 9"
- Description
- he SB1039F 14" x 40" 16-Speed 220V 3-Phase Lathe with Fagor DRO is packed with standard features and equipment, including a complete coolant system, one-shot way lubrication system, powered cross feed and premium Allen-Bradley controls. Spindle speeds are controlled by headstock levers and set the spindle speed within the available range of 50-2570 RPM. Spindle speed is displayed on a Fagor digital readout.

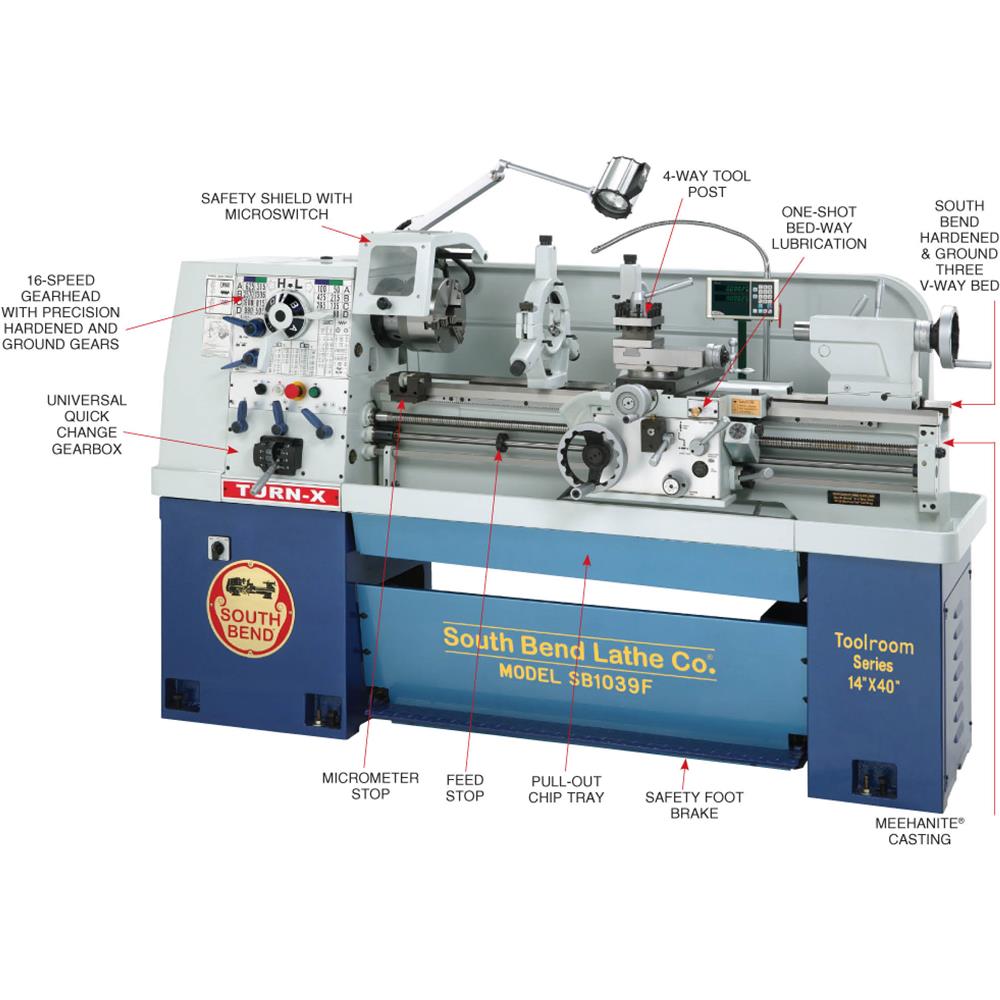

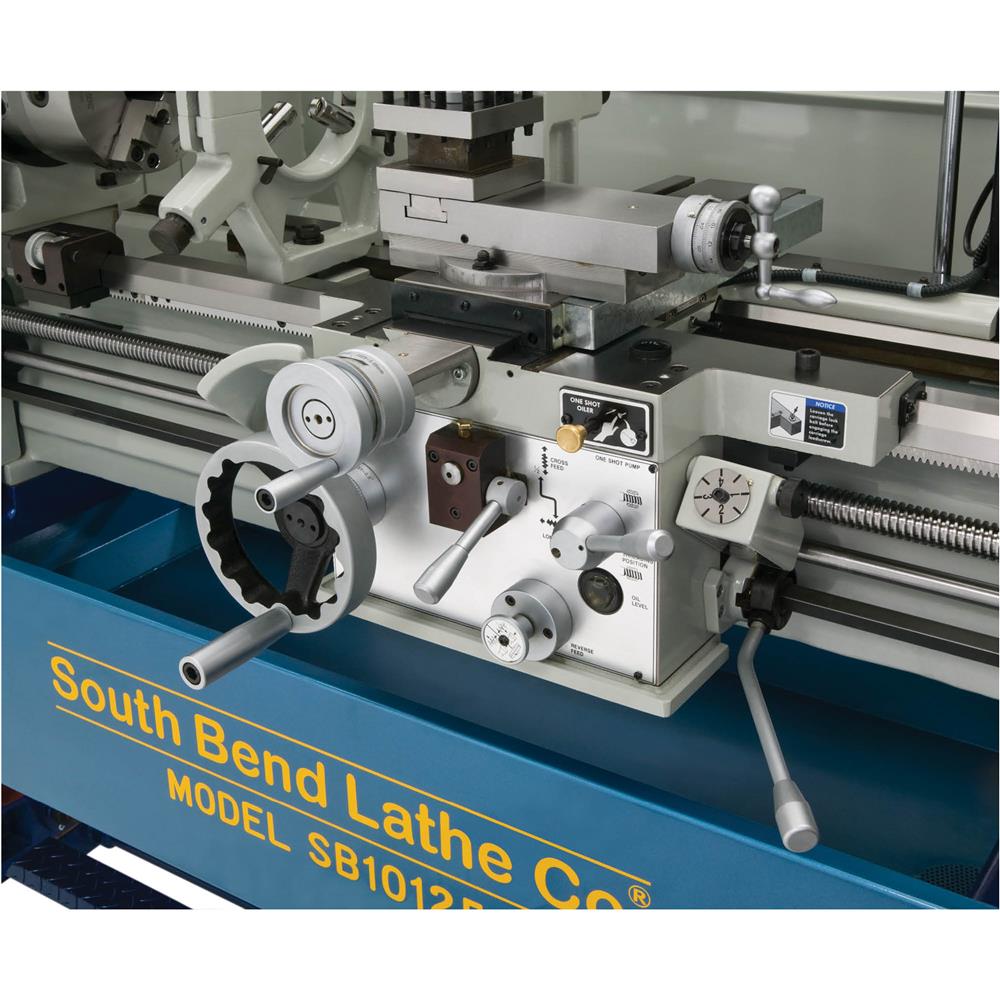

- The bed of the lathe is constructed with Meehanite castings that are hardened and precision-ground in the traditional three V-way prismatic design. The headstocks feature quick-change gear levers and the carriages include an adjustable clutch that disables automatic carriage feed when it contacts the feed stop or in the event of a crash. These lathes are equipped with Japanese spindle bearings. The spindles are D1-5 camlock with an MT#5 taper and 1.57" bore. The tailstocks have an MT#3 taper and 4.5" of quill travel.
- Features
- Fagor 2-axis DRO
- Meehanite casting, signature South Bend 3 V-bed
- 10" 4-jaw independent chuck D1-5
- 8" 3-jaw scroll chuck mounted to D1-5 plate
- NTN Japanese spindle bearing
- Full-length splash guard
- Front removable sliding chip tray
- Micrometer carriage stop
- Threading dial indicator
- Jog button and emergency stop
- US Based Customer Service and Technical Support
- Specifications
- Coolant motor size: 1/8 HP
- Swing over cross slide: 8.66"
- Swing over gap: 20.94"
- Cross slide travel: 7"
- Compound slide travel: 4"
- Spindle nose: D1-5 camlock
- Spindle taper: MT #5
- Spindle speeds: (16) from 50 – 2570 RPM
- Tailstock taper: MT #3
- Tailstock travel: 4-1/2"
- Inch thread range: 2 to 72 TPI (45 pitches)
- Metric thread range: 0.2 to 14 mm (39 pitches)
- Modular threads: 0.3 to 3.5 (18 pitches)
- Diametral threads: 8 to 44 (21 pitches)
- Overall dimensions: 80-3/4" W x 32-1/8" D x 54-3/8" H
- Approximate shipping weight: 2498 lbs.
Specifications
- Manufacturer: South Bend
- SKU: SB1039F
- UPC: 690550976865
- Shipping Method: LTL Freight
- Weight: 2,498 lb
- Dimensions: 90 × 40 × 69 in
- Country of Origin: Taiwan
- Warranty: 2 Years (Parts)
| Weight | 2498.0 lbs |
|---|---|
| Dimensions | 90.0 × 40.0 × 69.0 in |
| Brand | South Bend |
