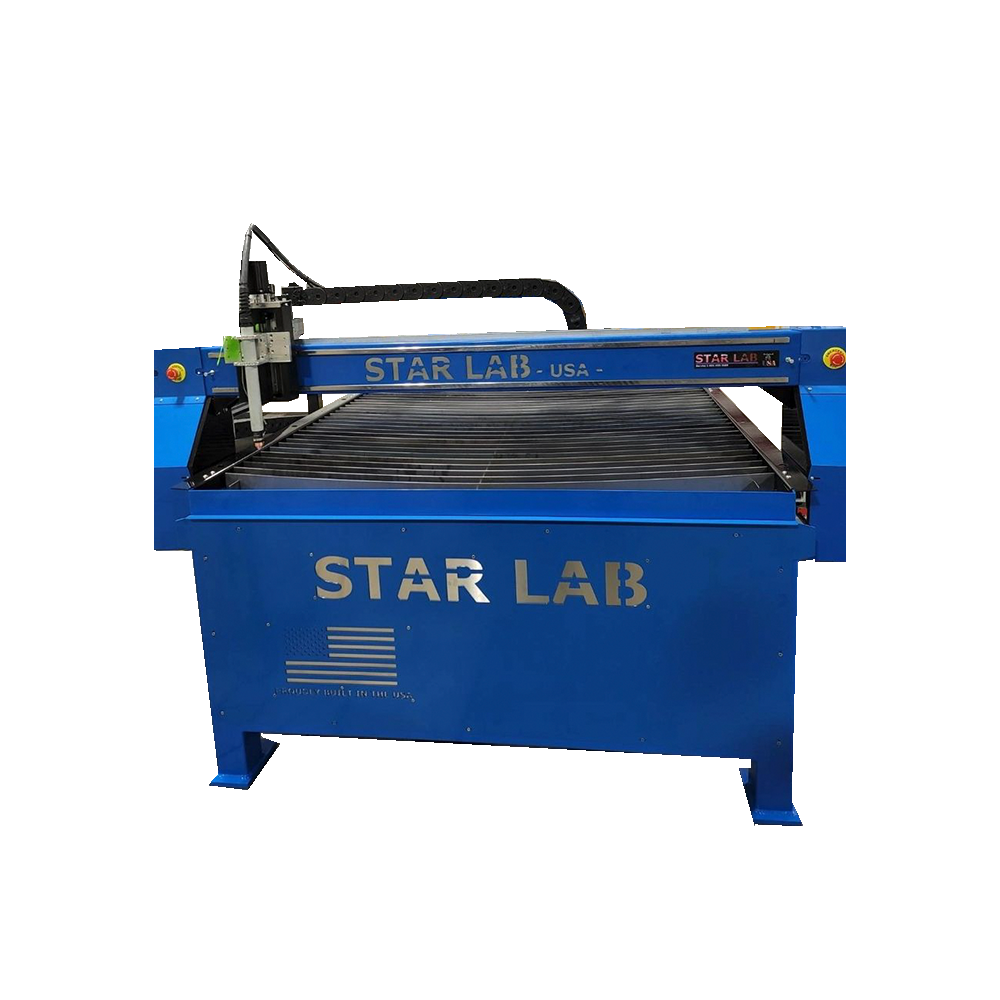

Star Lab 5×10 Plasma Cutting CNC
$12,387.50Current price is: $12,387.50.
- Travels 61.5×121.5
- Cutting speed up to 1500ipm (With optional high speed servo)
- Clearance from table to gantry approx. 8.00"
- Ultra-fast Linux operating system or Windows OS system options
Star Lab 5×10 Plasma Cutting CNC is a Star Lab product in the CNC Plasma Tables collection.
Product Details
- Travels 61.5×121.5
- Cutting speed up to 1500ipm (With optional high speed servo)
- Clearance from table to gantry approx. 8.00"
- Ultra-fast Linux operating system or Windows OS system options
- Description
- Star Lab machines are built like CNC Lasers and are in countries all over the world. From Structural to Art to HVAC the Star Lab has the absolute broadest range of material thickness capability and capacity in the market. Now you can add CNC plasma cutting to your list of capabilities with not just any machine but with a top performing machine. Each Star Lab machine is an HSP (High speed plasma) capable platform that will also handle HEAVY plate oxy fuel cutting and up to a 3hp router.
- Every facet of this well crafted machine has been maxed out for efficiency and performance. From the oversize fully welded and OSHA powder coated frame to the super fast efficient Z axis and Star Lab’s unique collision detection system. These machines are the latest in engineering with real world testing and a proven track record. The Star Lab system is built from precision machined and qualified components. No extruded aluminum, No wheel bearings, No taped on gear rack. Star Lab machines are and have been pure industrial grade yet affordable for entry level owners!!
- Features
- Choose cutting speed up to 1500ipm (With optional high speed servo)
- Rapid travel 560ipm, 750ipm, 1100ipm or 2000ipm (With optional high speed servo)
- Dual drive
- Precision reduction units
- Magnetic breakaway
- Auto home/Auto square switches
- Precision hardened and ground rail
- With wipers (protectors)
- Frame Powder coated OSHA safety blue
- Precision and Fast Z axis ball screw drive
- Complete system with controller PC (Mouse, monitor, keyboard)
- Available Upgrades
- Flashcut operating system
- Servo upgrade either operating system
- Available Accessories
- EXT Extended gantry ( 12” cutting capacity off table right side only (for gantry width 5’,6’ and 8’)
- Down draft (5×10)
- Jewelers air scribe
- Router mount (Fits Bosch1617EVS or 3.75” barrel equivalent)
- Oxy fuel (Additional mount/relay, software setup and mount bracket)
- Rotacut with 2.5” through hole/8 inch chuck
- Rotacut with 3” through hole/10” chuck
- Dual cable carrier
Specifications
- Manufacturer: Star Lab
- SKU: StarLab 5×10
- Shipping Method: Flatbed
- Weight: 2,400 lb
- Dimensions: 89 × 140 × 65 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 2400.0 lbs |
|---|---|
| Dimensions | 89.0 × 140.0 × 65.0 in |
| Brand | Star Lab |
