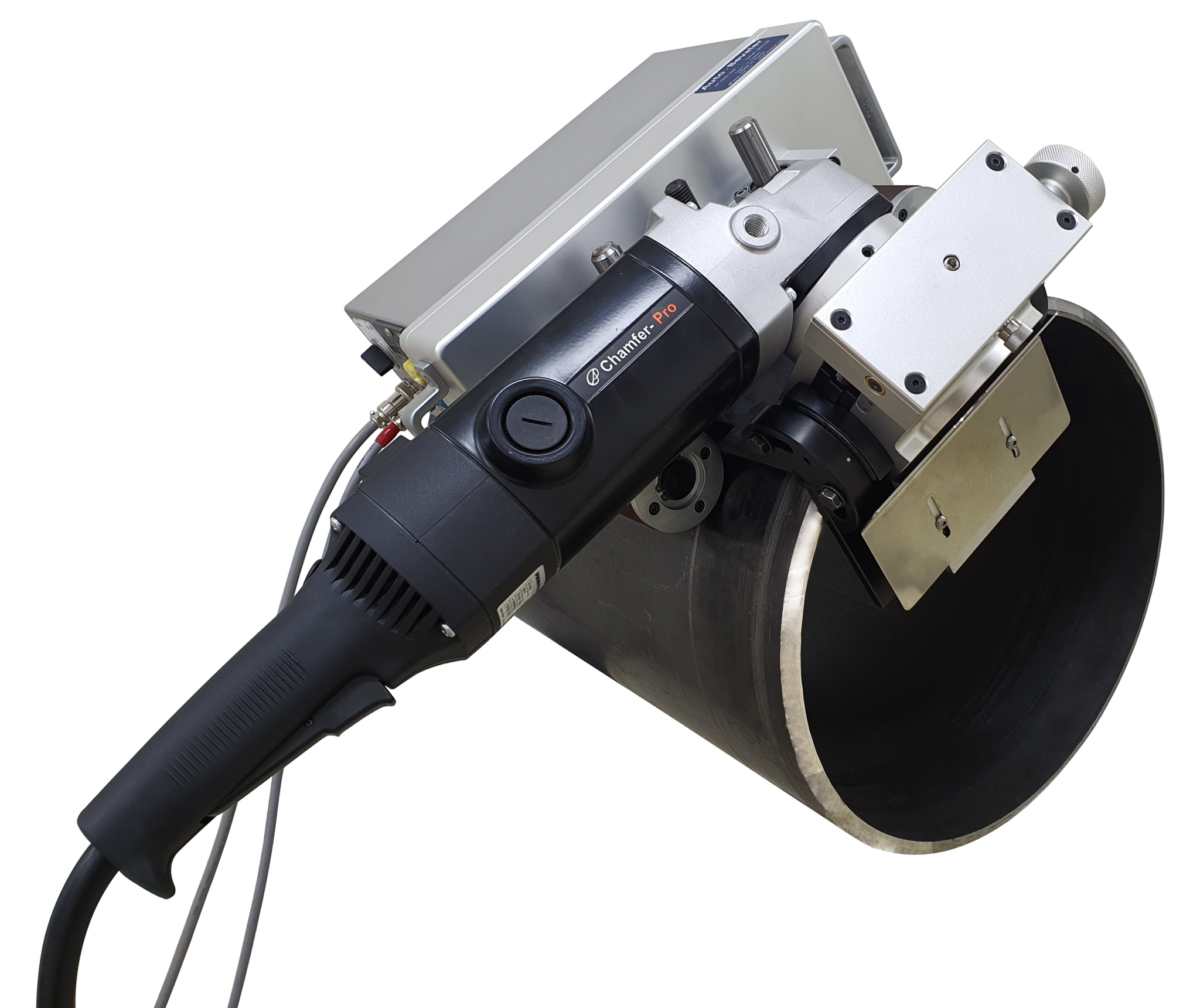

Steelmax APB32 Pro 115V Single Phase Variable Speed Automatic 32” Pipe Beveling System SM-PB-APB-32-PRO
$10,234.25Current price is: $10,234.25.
- Pipe diameter: 10” and larger
- Bevel angle range: 15-45°
- Max OD bevel width: 5/8” @ 45°
- Min pipe wall thickness: 1/8”
Steelmax APB32 Pro 115V Single Phase Variable Speed Automatic 32” Pipe Beveling System SM-PB-APB-32-PRO is a Steelmax product in the Beveling Machines collection.
Product Details
- Pipe diameter: 10” and larger
- Bevel angle range: 15-45°
- Max OD bevel width: 5/8” @ 45°
- Min pipe wall thickness: 1/8”
- Description
- The APB 32 Pro Automatic Pipe Beveling System from Steelmax will produce accurate weld preparation in minutes. As with all Steelmax pipe beveling solutions, the APB 32 Pro will create highly repeatable and consistent fit-up, dramatically reducing cycle times and improving work flow.
- The APB 32 Pro mounts to the outside edge of pipe or tubing with a minimum outside diameter of 10”. In its standard configuration, the APB-32 Pro can bevel pipe up to 32” in diameter. With an optional attachment, the APB-32 Pro can bevel pipe of any diameter over 32”, making this an incredibly versatile solution. By attaching to the pipe’s circumference, the APB 32 automatically compensates for out-of-round pipe and tubing and produces a consistent land dimension and bevel angle around the pipe. Outfitted with a heavy-duty, industrial motor with variable speed control, the APB32 Pro turns at the optimal speed for efficient beveling of ferrous and non-ferrous pipes.
- Features
- Simple set-up and operation
- Complete weld preparation in a single pass (at 45°, max 15mm bevel width)
- Bevel any pipe with a diameter between 10” and 32” OD with a base machine
- Optional attachment enables beveling pipe of any diameter over 32” as well
- Suitable for pipe thickness from 1/8” up to ¾”
- Variable speed motor for optimized milling of various materials
- Specifications
- Power supply: 115V / Single Phase / 60Hz / 2,400W
- Max bevel width: 13/16”
- Max pipe wall thickness: ¾”
- Weight: 90 lbs
- Optional Accessories
- Pro pipe attachment for pipe diameters above 32”
- Cutter head assembly
- Cutting inserts
- Cutter wedge
- Cutter insert screw
Specifications
- Manufacturer: Steelmax
- SKU: SM-PB-APB-32-PRO
- Shipping Method: LTL Freight
- Weight: 200 lb
- Dimensions: 39 × 30 × 23 in
- Country of Origin: South Korea
| Weight | 200.0 lbs |
|---|---|
| Dimensions | 39.0 × 30.0 × 23.0 in |
| Brand | Steelmax |
