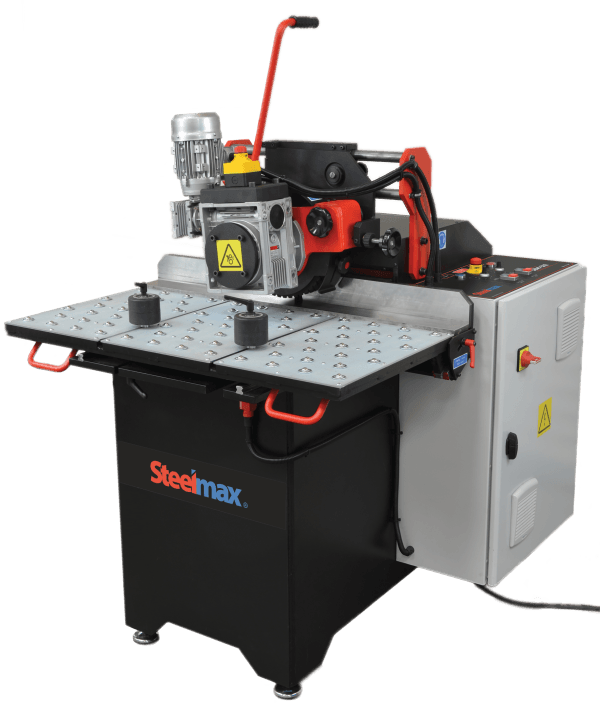

Steelmax SBM500 480V Three Phase Stationary 30mm Beveling Machine SM-SBM-500

Steelmax SBM500 480V Three Phase Stationary 30mm Beveling Machine SM-SBM-500 is a Steelmax product in the Beveling Machines collection.

Product Details

• Bevel angle range: 15-60°
• Max bevel width: 1-3/16” (30mm)
• Max bevel depth per pass: ¼”
• Min plate length: 6”
• Description
• The Steelmax SBM500 is a robust and efficient solution for beveling and deburring steel plate, angle, square/rectangular tubing and pipe. The SBM500 features a high-speed rotary milling head with carbide inserts that produces a clean, milled surface without thermal distortion or a heat affected zone. Variable feed rates and precise milling head speed control produce repeatable and accurately milled weld preparations in both ferrous and non-ferrous materials; improving part fit-up resulting in better welds. Accurate weld preparation reduces over welding, defect repair and production time, significantly lowering production costs. With the capacity to produce bevels up to 1-3/16” wide on plate up to 4” thick, the SBM500 is a unique solution for fabricators that need a high throughput beveling solution.
• Features
• Powerful 7,500 Watt electric motor for continuous operation
• Variable auto-feed to bevel both ferrous and non-ferrous materials
• Continuously adjustable bevel angle from 15 to 60 degrees
• Simple depth of cut adjustment
• High-speed rotary milling head with 10 replaceable carbide inserts produces a clean, milled surface free of thermal distortion with no heat affected zone
• Multiple cutting insert designs for optimal performance on different materials
• Versatile table top operation permits hand feeding of small plates, square/rectangular, pipe, angle iron and round stock
• Produces bevel widths up to 1-3/16”
• Plate thickness up to 4”
• Standard Set Includes
• SBM500
• Set of tools
• Operator’s manual
• Specifications
• Min plate width Standard: 2” w/optional accessory: 1-3/16”
• Standard: 2”
• w/optional accessory: 1-3/16”
• Plate thickness range: 1/8” to 4”
• Max material weight: 220 lbs
• Round stock diameter range: 2” to 6”
• Square/Rectangular tubing range: up to 4”x4”
• Min angle profile size: 2”x2”
• Feed rate range: 6-120 in/min
• Electrical requirements: 480V / Three Phase / 50-60 Hz
• Machine Weight: 1,910 lbs
• Optional Accessories
• Milling head
• Cutting insert for steel
• Cutting insert for aluminum
• Cutting insert for stainless steel
• Auxiliary table for long workpieces
• Pipe beveling attachment for pipes 2-6”
• Narrow plate attachment for 1-3/16” to 2” wide plates, Minimum plate thickness 31/32”

Specifications

• Manufacturer: Steelmax
• SKU: SM-SBM-500
• UPC: 848118005094
• Shipping Method: LTL Freight
• Weight: 2,116 lb
• Dimensions: 55 × 52 × 63 in
• Country of Origin: Poland
