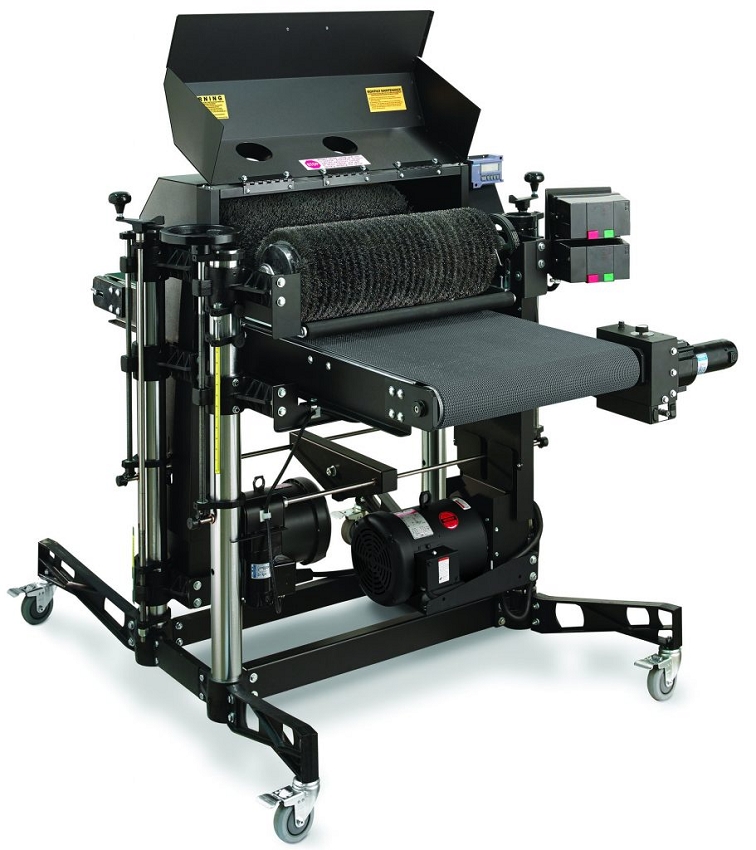

SuperMax SuperBrush 36″ 220V Three Phase Double Brush Sander SUPMX-93367-2

SuperMax SuperBrush 36″ 220V Three Phase Double Brush Sander SUPMX-93367-2 is a SuperMax Tools product in the Grinding & Sanding collection.

Product Details

• Max. Width: 36”
• Max. Thickness: 9”, varies with brush style
• Brush: 9”-12” typical diameter
• Motor: 7 1/2 HP, 220 Volt, Three Phase
• Description
• SuperMax Tools® offers a wide variety of SuperBrush™ sanders to meet the many needs of any woodworking shop. Our goal is to provide an excellent priced machine yielding an incredible return on investment by creating faster output, reduced rework, and greater product consistency. Just think of all the applications our machines can help with – here a just a few:
• Raw Wood Sanding
• White Wood Sanding
• Break sharp edges
• Blend out minor defects
• Sealer Sanding
• Primer Sanding
• Scuff Sanding
• Profile sanding
• Clean reclaimed wood
• Wire brushing to pull out soft grain to create textured surface
• These easy to use machines come with an extremely low learning curve and offer many different features which include: quick change brush heads, infinitely variable brush and conveyor speeds to allow for endless finish possibilities, adjustable tension rollers to prevent stock slippage, and precision height adjustments. Our SuperBrush™ sanders come in sizes ranging from 24″ to 49″ with single and/or double brush head offerings to meet all your finishing needs.
• Features
• Brush rotation is reversible (second brush)
• RPM gauge displays brush speed, variable 400-1200 RPM
• Power and manual height adjustment, high speed and adjustable speed, controls 3/32 per turn
• Digital Readout
• Displays how much material is being removed per pass
• Displays zero when the desired thickness is reached
• Displays the actual thickness of the stock as it exits the sander
• Specifications
• Sanding Capacity: Max. Width: 36” Min. Length: 11” Max. Thickness: 9”, varies with brush style Min. Thickness: 1/32”, varies with brush style
• Min. Length: 11”
• Min. Thickness: 1/32”, varies with brush style
• Dimensions (H x W x D): 67” x 58” x 54”
• Typical Bristle Length: 1 1/2” -3
• Speed: Ranged carriable, 400-1200 RPM brush
• Dust Hood: (6), 4” vacuum ports, 1800 CFM min.
• Drive Motor (TEFC): (2) 7 1/2 HP
• Power Requirements: 208-230V, 60HZ, Three Phase, 20 Amp Service
• Shipping Weight: 1340 lbs
• Conveyor Motor: 220 in.-lb. torque, direct drive D.C. motor, ranged variable 0-30 FPM

Specifications

• Manufacturer: SuperMax Tools
• SKU: SUPMX-93367-2
• UPC: 195444200618
• Shipping Method: LTL Freight
• Weight: 1,340 lb
• Dimensions: 54 × 58 × 67 in
• Country of Origin: Taiwan
• Warranty: 2 Years (Parts)
• Warranty Details: Machines must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty.
