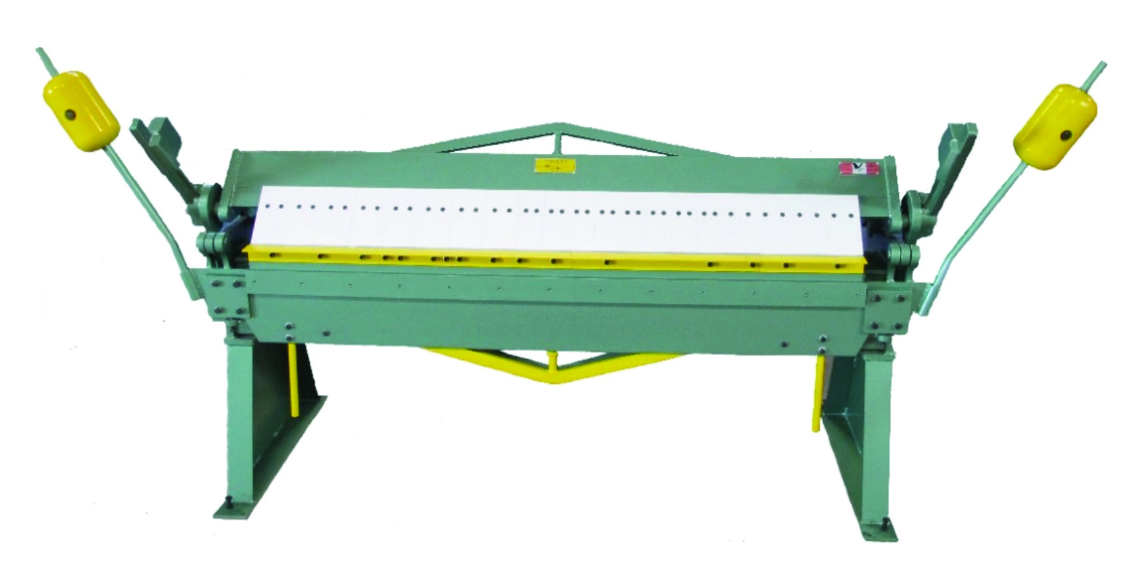

Tin Knocker 16 Gauge x 72″ Universal Hand Brake TK 616
$6,636.50Current price is: $6,636.50.
- Capacity with lower tooling flanges: 72" x 16Ga
- Capacity without lower tooling flanges: 72" x 20Ga
- Lift of beam: 1.5"
- Min reverse bend: 5/8"
Tin Knocker 16 Gauge x 72″ Universal Hand Brake TK 616 is a Tin Knocker product in the Sheet Metal Brakes collection.
Product Details
- Capacity with lower tooling flanges: 72" x 16Ga
- Capacity without lower tooling flanges: 72" x 20Ga
- Lift of beam: 1.5"
- Min reverse bend: 5/8"
- Description
- An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. With strategically positioned counter weights this brake makes for easy and smooth manual bending.
- Specifications
- Front to back ram adjustment: 1/2"
- Min flange width: 1"
- Finger widths: 1", 3", and 4"
- Lower segment tooling widths: 1", 1.5", 4", 6", 8", 12", and 20"
- Bending beam tooling (segmented) lengths: 1", 1.5", 4", 6", 8", 12", and 20"
- Maximum transverse bend in center of machine: 2"
- Maximum transverse bend at end of machine: 3"
- Footprint with counter weights: 95" x 38" x 54"
- Shipping weight: 1,850 lbs
Specifications
- Manufacturer: Tin Knocker
- SKU: TK616
- Shipping Method: LTL Freight
- Weight: 1,850 lb
- Dimensions: 96 × 32 × 43 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 1850.0 lbs |
|---|---|
| Dimensions | 96.0 × 32.0 × 43.0 in |
| Brand | Tin Knocker |
