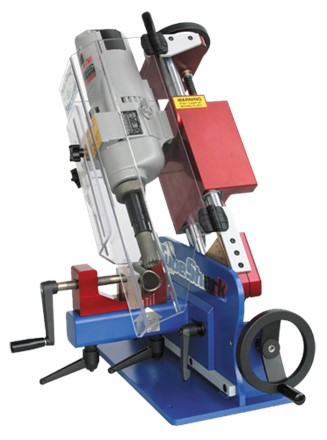

TubeShark 120V Single Phase Electric Tube Notcher TSN-1
$2,799.50Current price is: $2,799.50.
- Motor: 120V Single Phase
- Gap Free Notches from 0° to 60°
- Can notch material from ½” to 3” diameter
- Adapters Included: ½”-20, 5/8”-18, and ¾”-10 threaded ends
TubeShark 120V Single Phase Electric Tube Notcher TSN-1 is a TubeShark product in the Notchers collection.
Product Details
- Motor: 120V Single Phase
- Gap Free Notches from 0° to 60°
- Can notch material from ½” to 3” diameter
- Adapters Included: ½”-20, 5/8”-18, and ¾”-10 threaded ends
- Description
- Now you can cut precision notches in virtually any material from ½” to 3” diameter. The TubeShark® Tube Notcher produces gap-free notches from 0° to 60° in thin or thick-wall tubing and pipe.
- The TubeShark Notcher is built using heavy-duty ½” steel frame eliminating vibration. This notcher is precision machined, anodized aluminum billet block with oil-impregnated bronze bushings. This powerful machine features a heavy-duty industrial two-speed drill motor for the toughest jobs. This is a fast machine with precision gauges and adjustable hand crank and handles for easy set up and operation. The TubeShark Notcher features v-block vise adjusts for centerline or offset notching and uses standard bi-metal or carbide-tipped hole saws. This notcher accepts ¾” Weldon shank and also doubles as a drill press.
- Features
- #3 Morse Taper Socket
- Top quality American made components
- Powder coated finish
- Specifications
- 11.5 amp, 250 & 500 rpm
- Dimensions: 48 x 48 x 48
- Weight: 250 lbs
Specifications
- Manufacturer: TubeShark
- SKU: TSN-1
- Shipping Method: LTL Freight
- Weight: 300 lb
- Dimensions: 48 × 48 × 48 in
| Weight | 300.0 lbs |
|---|---|
| Dimensions | 48.0 × 48.0 × 48.0 in |
| Brand | TubeShark |
