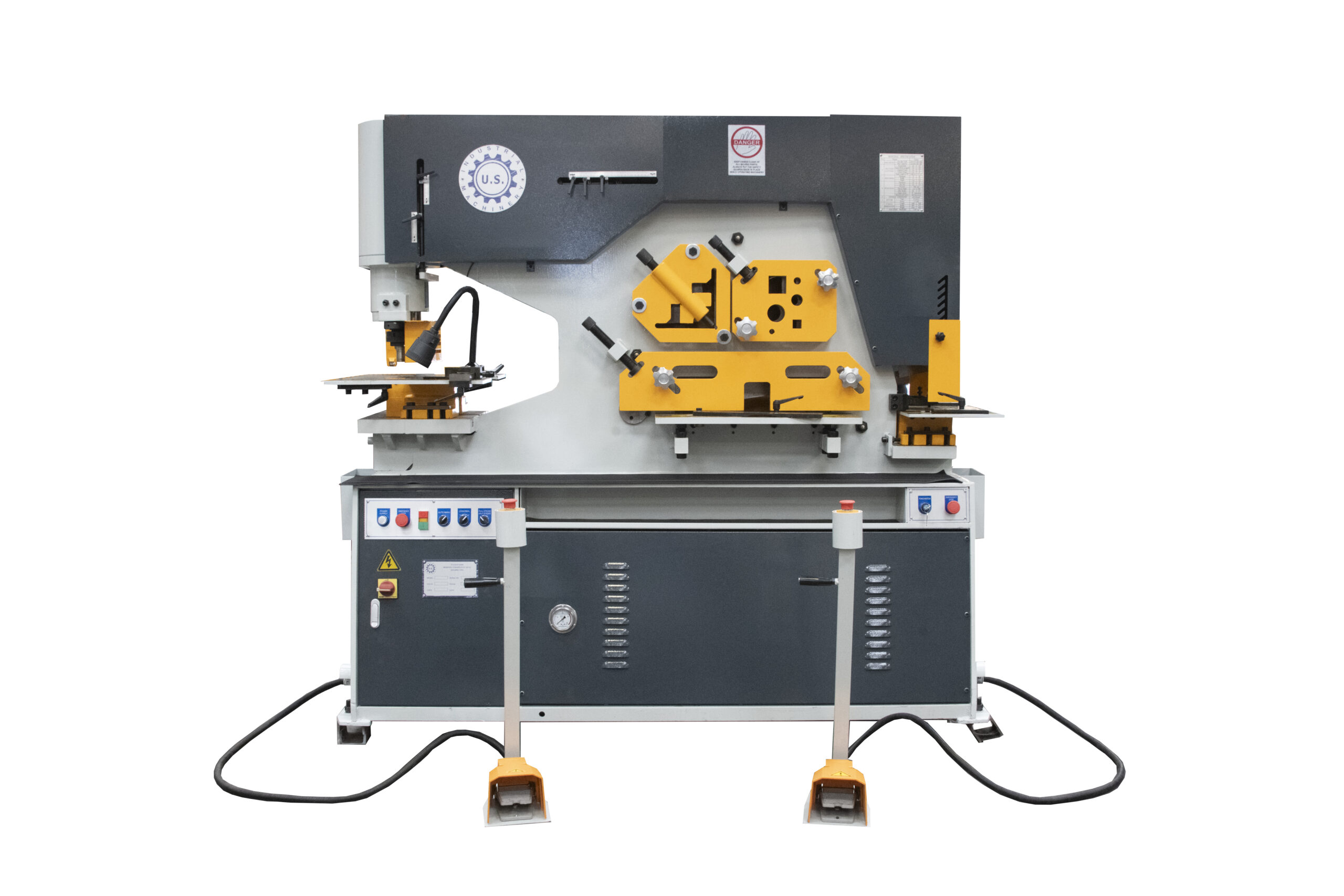

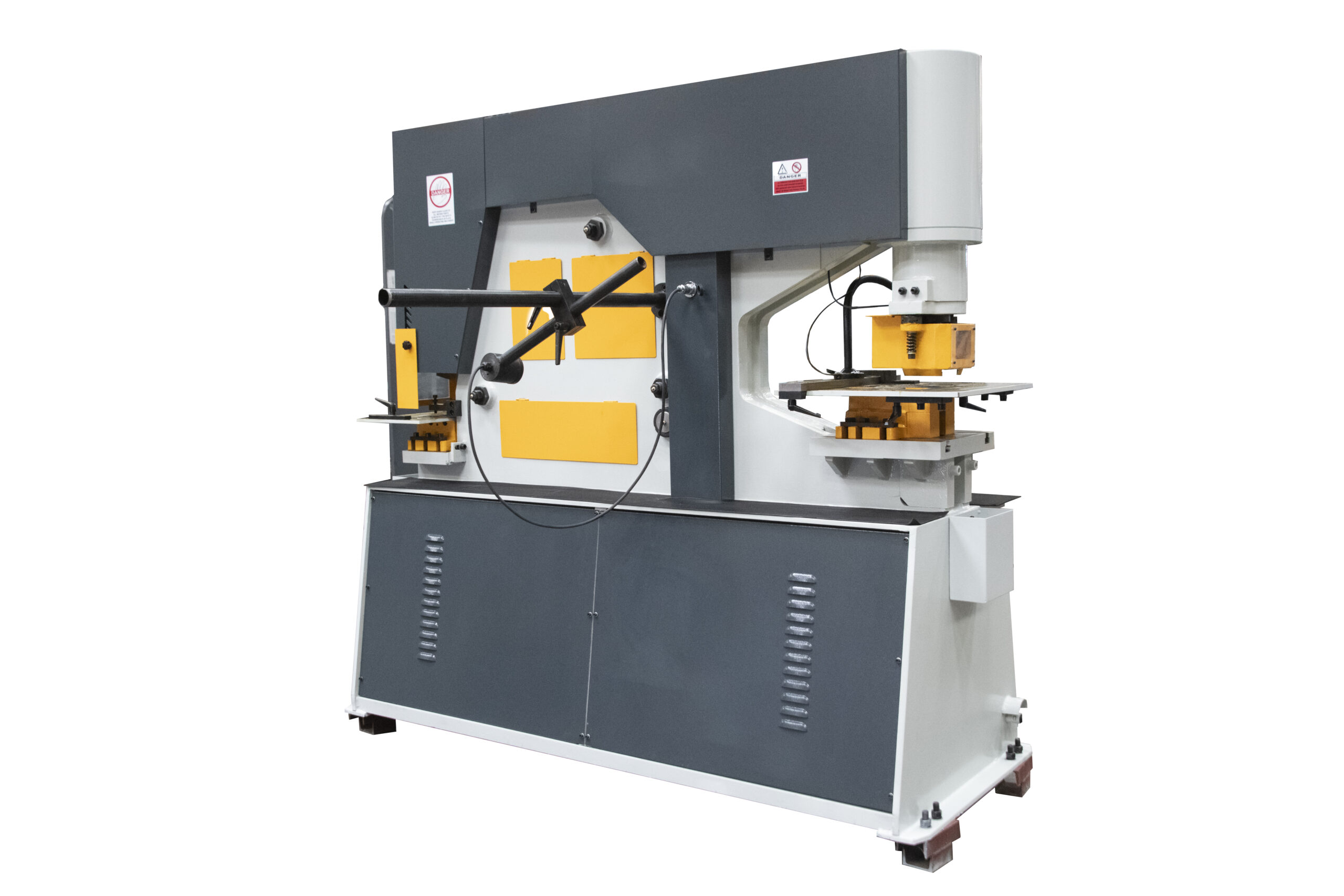

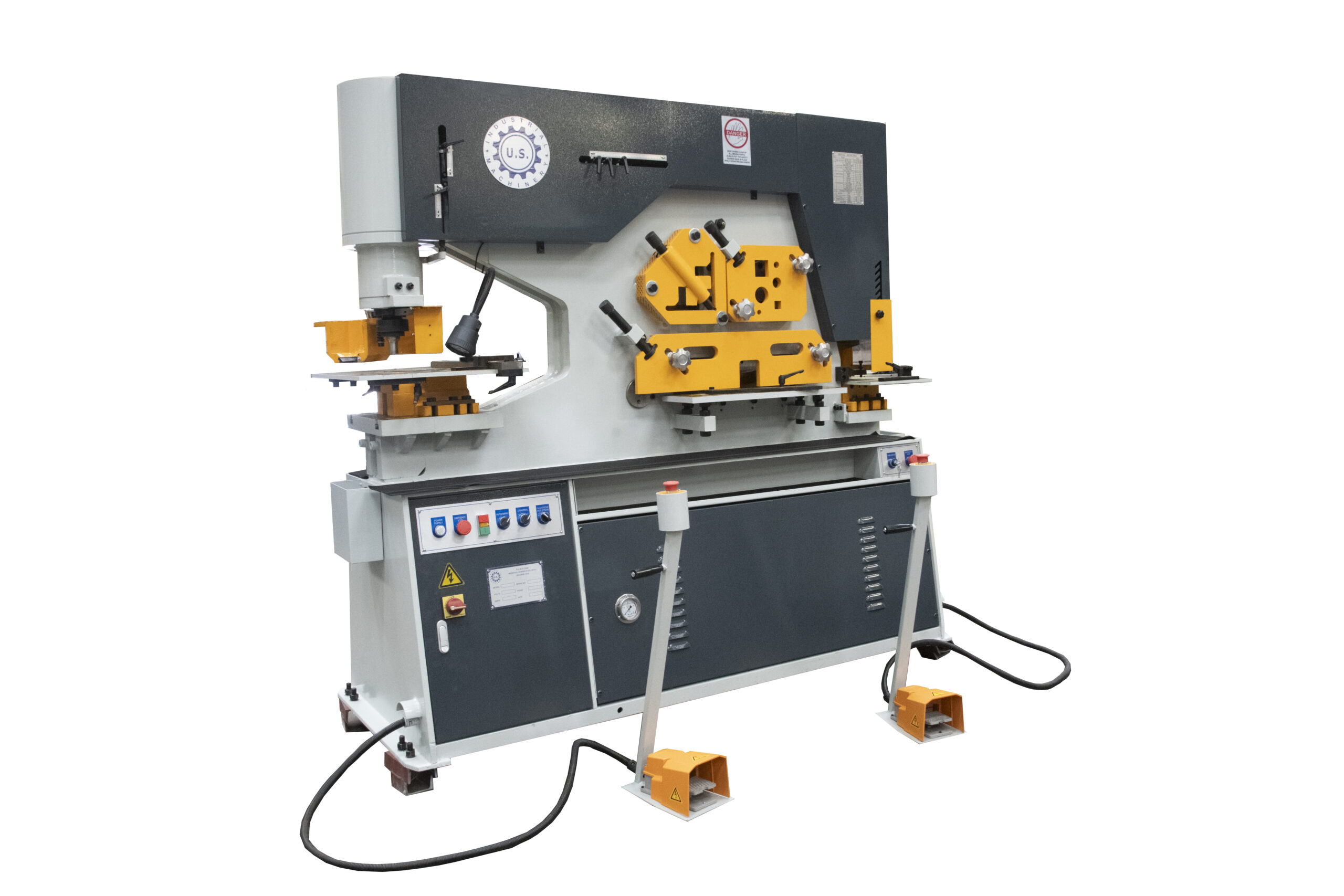

U.S. Industrial Machinery 125 Ton Dual Operated Hydraulic Ironworker USHI125XT

U.S. Industrial Machinery 125 Ton Dual Operated Hydraulic Ironworker USHI125XT is a U.S. Industrial Machinery product in the Ironworkers collection.

Product Details

• Punch Throat Depth: 24"
• Shear Blade Length: 23-1/2"
• Depth of Notcher: 4”
• Motor: 15 HP
• Description
• For more than three decades, U.S. Industrial Machinery has been delivering industrial-grade ironworker machines to handle the toughest jobs nationwide. Whether you’re a local iron business serving the needs of customers in your community or a national brand shaping the next generation of automobiles, we have high-grade equipment at affordable prices to meet every level of job.
• Standard Equipment
• Dual hydraulic cylinders allowing for simultaneous or independent operation
• Two foot pedals with emergency stops
• Five workstations: punching station, plate shearing station, angle shearing station, rod shearing station, and notching station
• Punch gauging table for accuracy and alignment
• Notching table gauging for accuracy and alignment
• Press brake attachment (can be equipped on the punch station side)
• Quick change coupling nut and sleeve for punch
• 3’ electric automatic back gauge w/ inlaid scale
• Safety guard for punching and notching stations
• Magnetic base work light
• Set of metric punches and dies
• Dual voltage motors in either 220 volt or 440 volt (3-phase)
• Features
• For the most durable machines to punch, shear, notch, and bend iron, you can count on the industry’s best by U.S. Industrial Machinery. Their machines range in punch tonnage from 66 tons to 155 tons with motor horsepower between 7.5 and 20 HP. Need a customized piece of equipment? They build those too. Other standard features on each model include:
• Punch station
• Angle shear station
• Flat bar shear station
• Notching station
• Rod shear station
• Electric back-gauge
• Oversize work table with fences
• Press brake attachment
• Punch slug chute and bucket
• Specifications
• PUNCH STATION Punching Tonnage: 125 tons Maximum Punching – Round (Thick x Diameter): 1” x 1-3/8” Throat Depth: 24” Number of Strokes Per Minute: 28
• Punching Tonnage: 125 tons
• Maximum Punching – Round (Thick x Diameter): 1” x 1-3/8”
• Throat Depth: 24”
• Number of Strokes Per Minute: 28
• PL ATE SHEAR STATION **Plate shear gapped for 1/4” thickness and up. Cutting gauge thickness may require shimming to reduce gap. Maximum Thickness (Thick x Width): 1” x 12” Maximum Length (Thick x Width): 5/8” x 23-1/2” Blade Length: 23-1/2”
• Maximum Thickness (Thick x Width): 1” x 12”
• Maximum Length (Thick x Width): 5/8” x 23-1/2”
• Blade Length: 23-1/2”
• ANGLE SHEAR STATION Capacity at 90 Degrees: 6” x 6” x 5/8” Capacity at 45 Degrees: 3” x 3” x 1/4”
• Capacity at 90 Degrees: 6” x 6” x 5/8”
• Capacity at 45 Degrees: 3” x 3” x 1/4”
• BAR SHEAR STATION Maximum Round Solid Bar: 2-3/8” Maximum Square Solid Bar: 2”
• Maximum Round Solid Bar: 2-3/8”
• Maximum Square Solid Bar: 2”
• REC TANGUL AR NOTCHER STATION **Notcher Station not gapped for small gauge thickness. Must centerload heavy notches. Maximum thickness capacity (Width x Depth x Thick): 2-1/4” x 3-7/8” x 1/2” Width of notcher: 3” Depth of notcher: 4”
• Maximum thickness capacity (Width x Depth x Thick): 2-1/4” x 3-7/8” x 1/2”
• Width of notcher: 3”
• OTHER SPECIF ICATIONS **All capacity based on 65Kpsi Ultimate Tensile Strength Horsepower: 15 Electrical: 220 or 440 Volts, 3 phase Full load amps: 45 at 220 volt / 22.5 at 440 volt AW46 Hydrualic Oil Capacity: 33 Gallons Weight: 10,750 lbs Dimensions (LWH): 92” x 37” x 82”
• Horsepower: 15
• Electrical: 220 or 440 Volts, 3 phase
• Full load amps: 45 at 220 volt / 22.5 at 440 volt
• AW46 Hydrualic Oil Capacity: 33 Gallons
• Weight: 10,750 lbs
• Dimensions (LWH): 92” x 37” x 82”
• Available Upgrades/Options
• Automatic hydraulic clamping for angle cutting and plate shearing
• Specialty tooling for specific jobs
• Training at customer’s site by a U.S. Industrial Machinery technician

Specifications

• Manufacturer: U.S. Industrial Machinery
• SKU: USHI125XT
• Shipping Method: Flatbed
• Weight: 10,600 lb
• Dimensions: 92 × 37 × 82 in
• Country of Origin: China
• Warranty: 1 Year (Parts)
