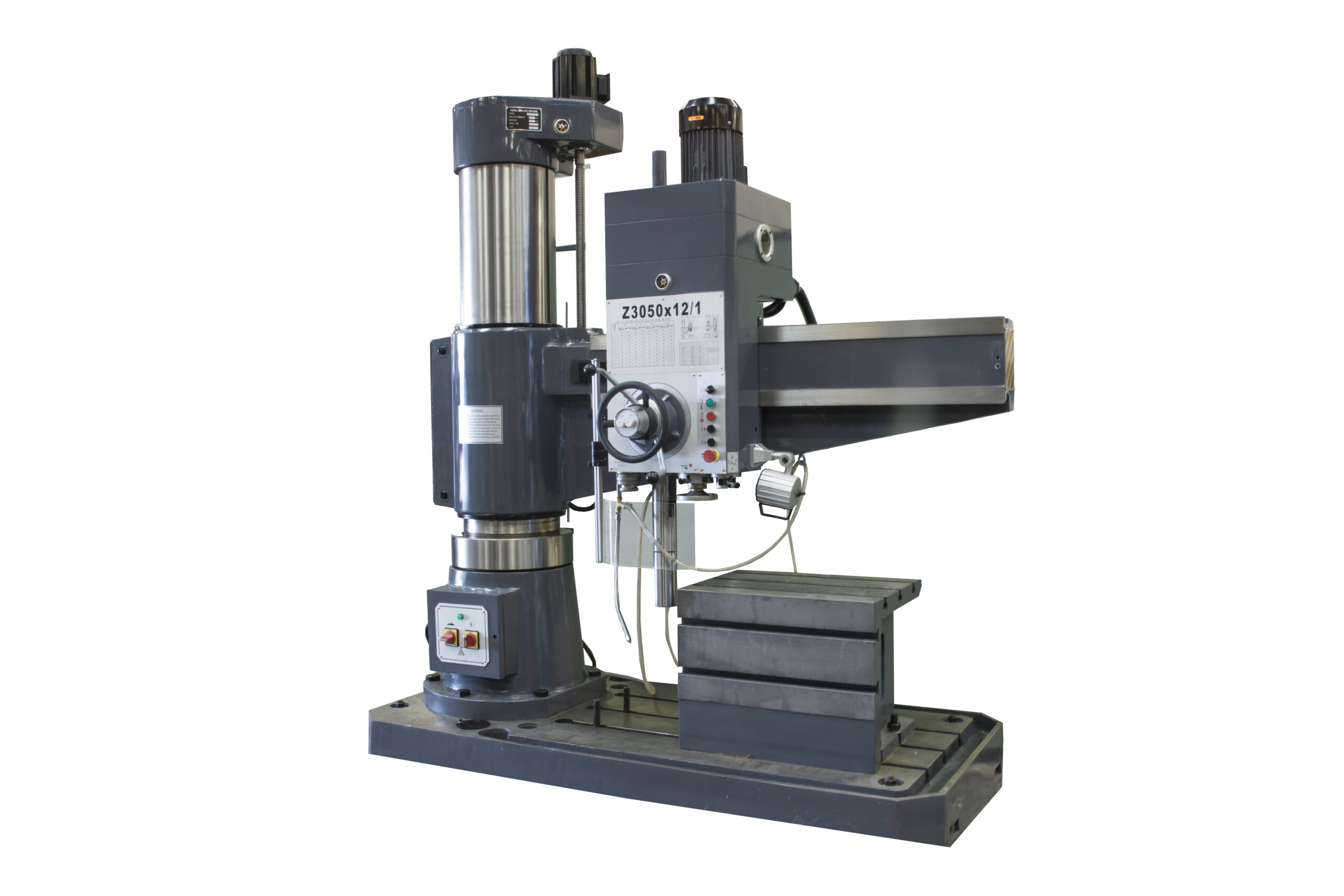

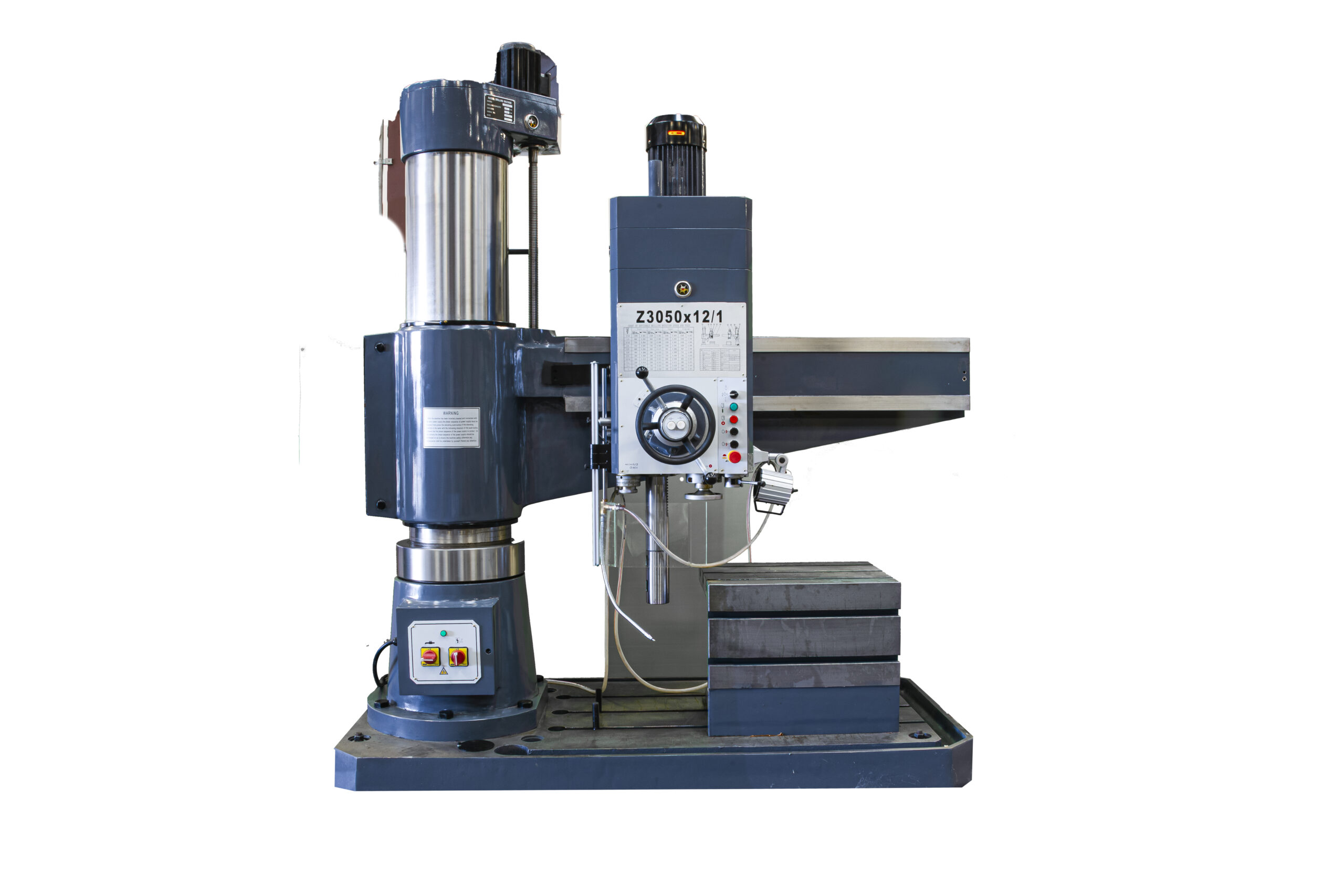

U.S. Industrial Machinery 49″ Radial Arm Drill Press USRD50-5
$23,738.72Current price is: $23,738.72.
- Drilling Capacity: 2"
- Spindle Travel: 12.4"
- Spindle Speeds: 25 to 2500 RPM
- Morse Taper 5 Spindle
U.S. Industrial Machinery 49″ Radial Arm Drill Press USRD50-5 is a U.S. Industrial Machinery product in the Drill Presses collection.
Product Details
- Drilling Capacity: 2"
- Spindle Travel: 12.4"
- Spindle Speeds: 25 to 2500 RPM
- Morse Taper 5 Spindle
- Standard Equipment
- Two side box work table, t-slotted
- T-slotted base
- Flood Coolant System
- Power Arm Elevation
- Power Arm Clamp
- High Precision, Low Noise Ground Gears
- 12” + drilling depth
- Specifications
- Min and Max Spindle to Column: 13.8" to 49.2"
- Diameter of Column: 13.8"
- Spindle Type: Morse Taper 5 Spindle
- Spindle Speeds: 25 to 2500 RPM (16 speed gear driven)
- Spindle Feeds Per Revolution: .0016" to .126" (16 feeds)
- Min and Max Distance Spindle to base: 13.8" to 48"
- Box Table Dimensions: 24.8" x 19.7" x 19.7"
- Base Dimensions: 80.7" x 39.4" x 7.9"
- Overall Dimensions: 84.6" x 41.7" x 104.3"
- Main Spindle Drive: 5.4 HP (208-240 or 440-480v, 3 ph)
- Gross/ Net Weight: 7716 lbs / 6820 lbs
Specifications
- Manufacturer: U.S. Industrial Machinery
- SKU: USRD50-5
- Shipping Method: Flatbed
- Weight: 7,800 lb
- Dimensions: 85 × 42 × 105 in
- Country of Origin: China
- Warranty: 1 Year (Parts)
| Weight | 7800.0 lbs |
|---|---|
| Dimensions | 85.0 × 42.0 × 105.0 in |
| Brand | U.S. Industrial Machinery |
