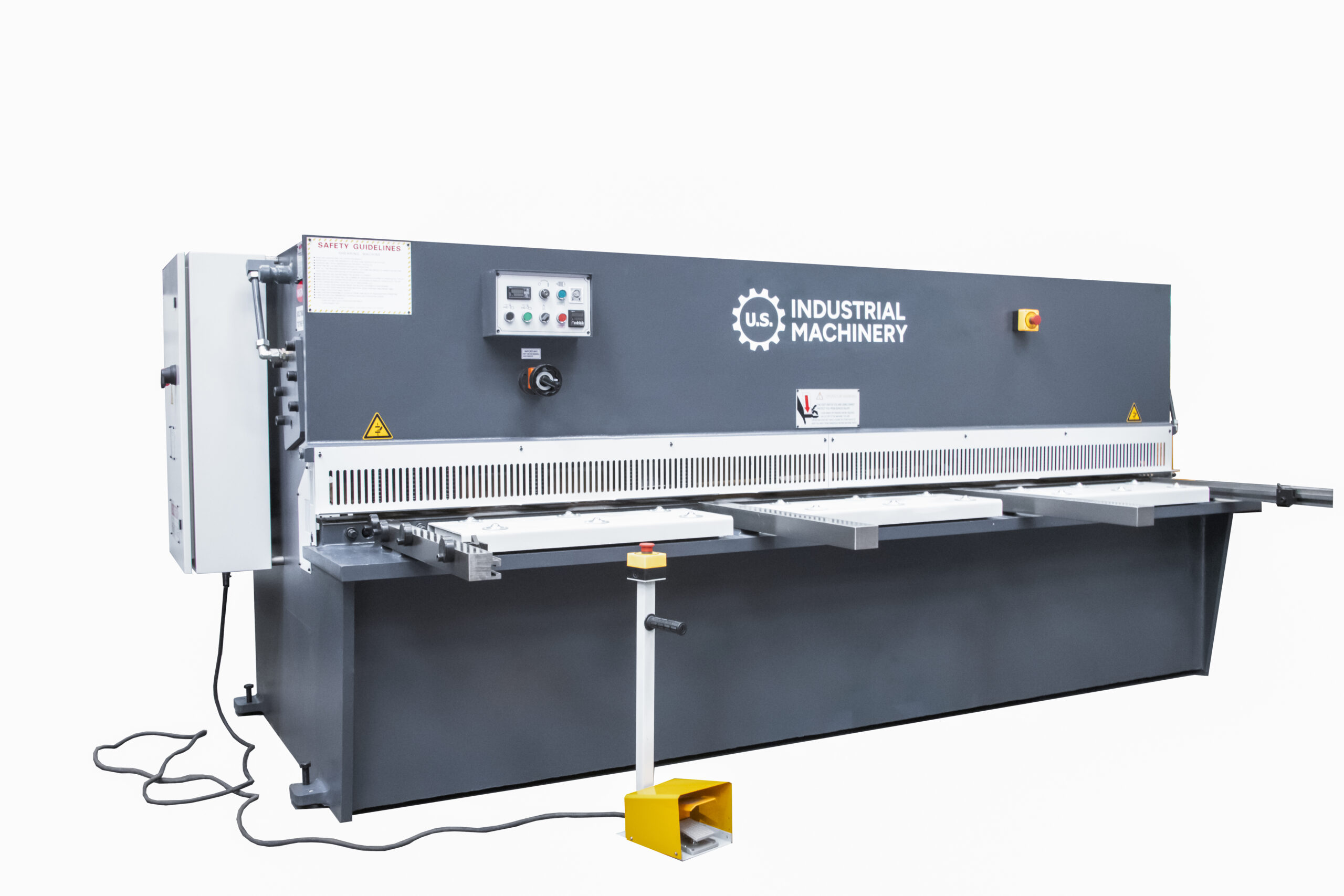

U.S. Industrial Machinery 8′ x 1/2″ Hydraulic Shear USHS8500
$51,442.34Current price is: $51,442.34.
- Max Thickness (MS): 1/2”
- Max Thickness (SS): 1/4”
- Max Cutting Length: 8’
- No Load Strokes/Minute: 14
U.S. Industrial Machinery 8′ x 1/2″ Hydraulic Shear USHS8500 is a U.S. Industrial Machinery product in the Shears collection.
Product Details
- Max Thickness (MS): 1/2”
- Max Thickness (SS): 1/4”
- Max Cutting Length: 8’
- No Load Strokes/Minute: 14
- Description
- U.S. Industrial Machinery offers a great selection of manual and CNC hydraulic shears ranging from ¼” mild steel capacity to ¾” mild capacity. Standard shear machines in our inventory are available in lengths ranging from 6′ to 13′, and we can build to order shears requiring increased capacity upon request. Contact us for a quote or to learn more about custom-built machines.
- Features
- The manual control hydraulic shears offer easy configuration to cut materials of varying thickness with stroke length adjustments as well. Other standard features include:
- Motorized front-operated power back-gauge with digital and mechanical readouts
- Fine adjustment handwheel
- Back-gauge adjustment range from ½” to 36”
- A swing-up mechanism for cut depths larger than 36″
- Standard Equipment
- Swing beam design
- Front operated power back gauge with digital readout
- OSHA finger guarding with microswitch for safety
- Automatic swing-up feature on back gauge
- 39” squaring arm with inlaid scale from blade to end
- Support arms across the front of the machine
- Bolt on table segments with roller ball transfers

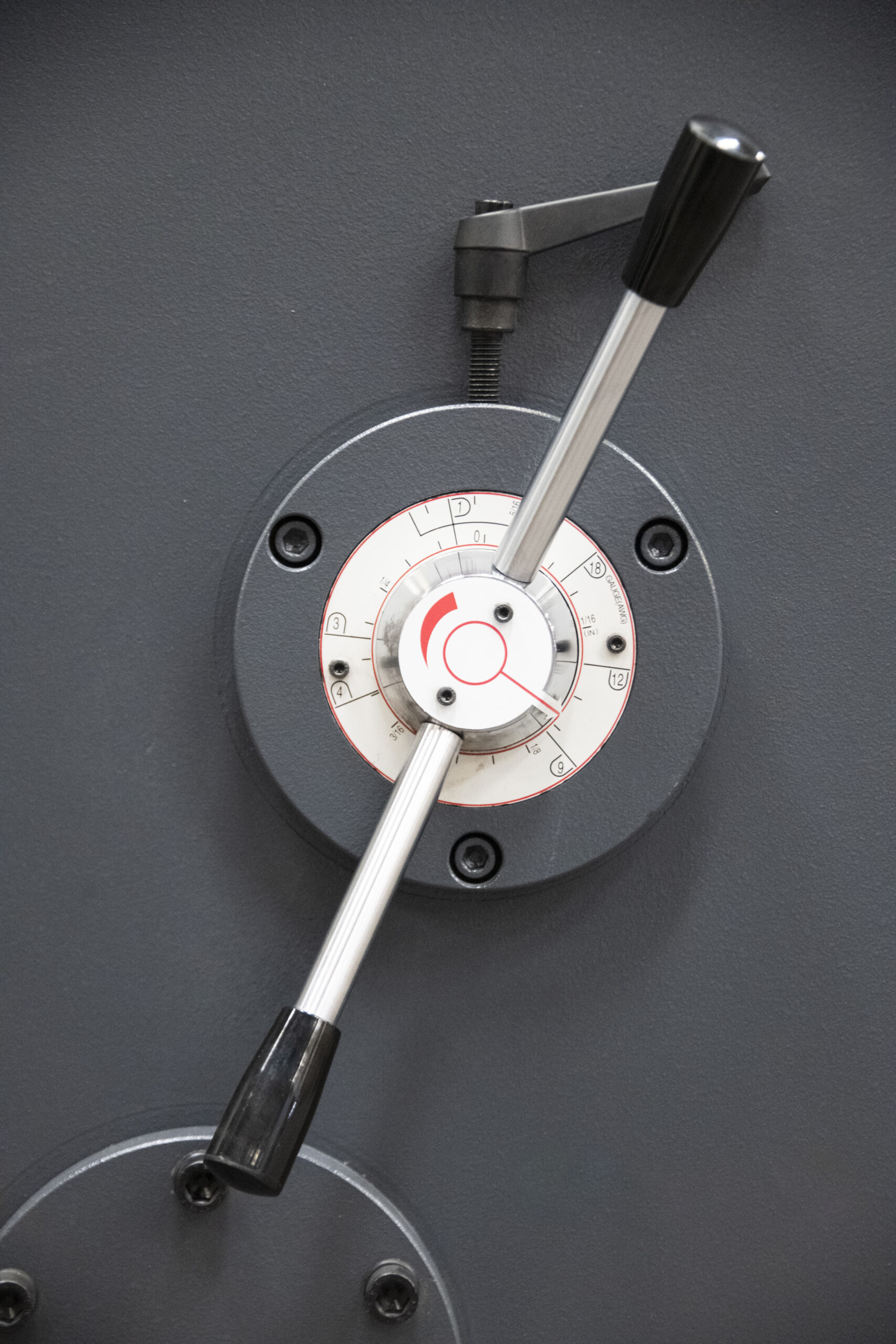

- Manual quick change blade gap adjustment
- Hydraulic hold downs with anti-scratch neoprene pads
- Electric stroke adjustment with stroke counter
- Full set of 6CrW2Si blades for cutting mild steel
- Low noise hydraulic gear pump
- Shadow line with LED lighting for visual cut alignment
- Thermal overload protection
- Foot pedal with extended cable
- Material drop support chute for ease of collecting trim pieces
- Specifications
- Tensile Strength of Mild Steel:65k psi
- Tensile Strength of Stainless Steel: 95k psi
- Main Motor HP: 25HP
- Oil Capacity (Gallons): 58
- Amperage at 220 Volt: 61
- Amperage at 440 Volt: 30
- # of Hold Downs: 11
- Weight (lbs): 14,991
- Dimensions (LWH) Inches: 130” x 86” x 89”
- Top # of Blade Segments: 2
- Bottom # of Blade Segments: 2
- Available Upgrades/Options
- ESA CNC computer control
- Pneumatic sheet support for cutting of thinner, lighter gauge material
- 48” back gauge with no swing-up feature
- Front light curtains for additional safety
- Rear light curtain with safety gates for additional safety
- Rear photo-electric eye with safety gates for additional safety
- Cr12MoV blades for cutting stainless steel and harder alloys
- 6’ squaring arm
- 8’ squaring arm
- 10’ squaring arm
- Training at customer’s site by a U.S. Industrial Machinery Technician
- ***Machines are shipped without oil. Please refill the oil before operating the machine. Also remember that the machines must be anchored and leveled***
Specifications
- Manufacturer: U.S. Industrial Machinery
- SKU: USHS8500
- Shipping Method: Flatbed
- Weight: 21,605 lb
- Dimensions: 131 × 80 × 70 in
- Warranty: 1 Year (Parts)
| Weight | 21605.0 lbs |
|---|---|
| Dimensions | 131.0 × 80.0 × 70.0 in |
| Brand | U.S. Industrial Machinery |
