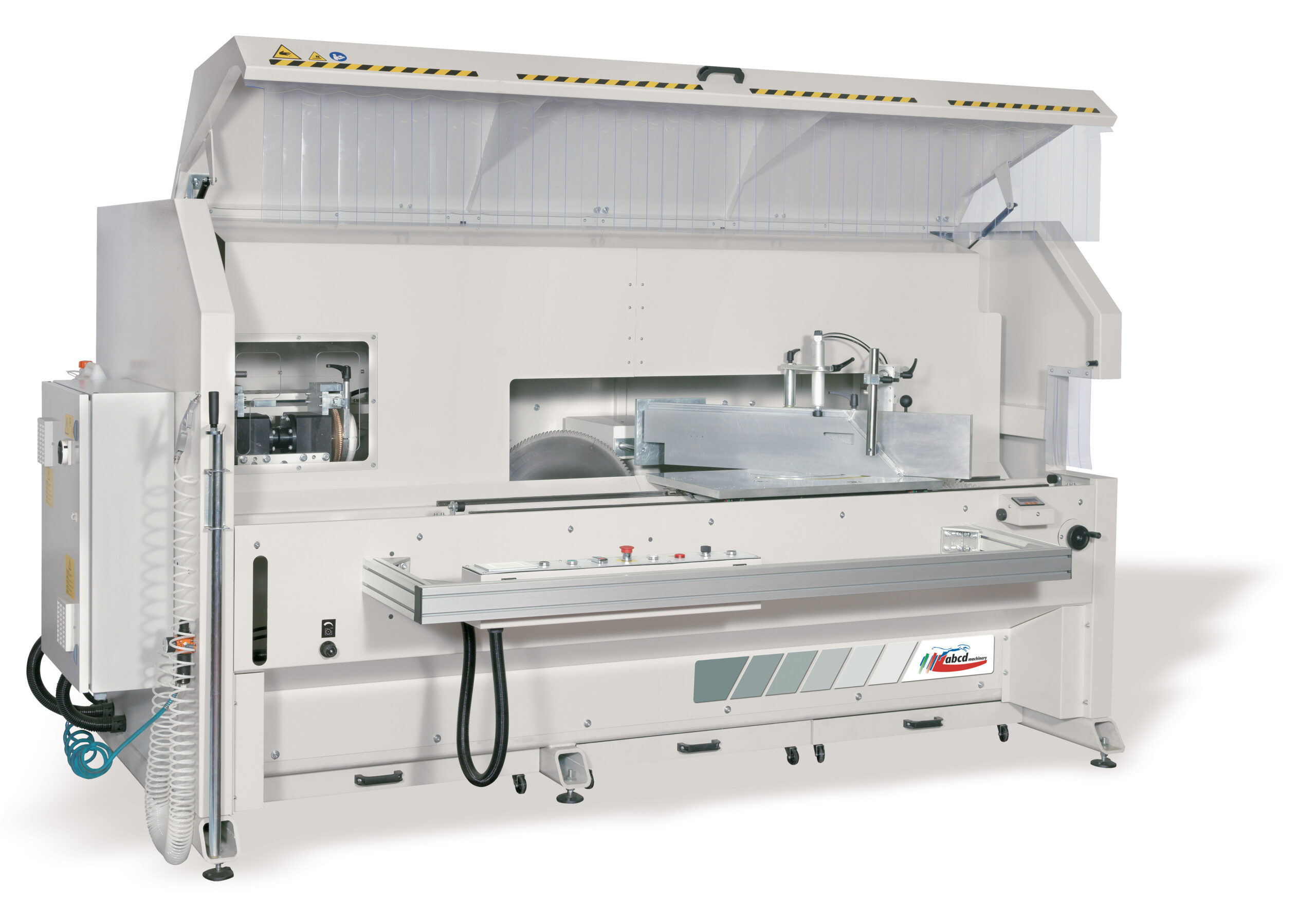

Audatech Notching Saw with Two Blade MAGMA RV
$60,885.50Current price is: $60,885.50.
- Motors: X2 4 HP each at 2800 RPM
- Vertical sawing unit: pivoting 45° outward, 60° inwards
- Horizontal sawing unit: tilting from + 60° to – 60°
- Pivoting angle fence: 30°-90°-30°
Audatech Notching Saw with Two Blade MAGMA RV is a Audatech product in the Band Saws collection.
Product Details
- Motors: X2 4 HP each at 2800 RPM
- Vertical sawing unit: pivoting 45° outward, 60° inwards
- Horizontal sawing unit: tilting from + 60° to – 60°
- Pivoting angle fence: 30°-90°-30°
- Description
- Notching saw for mullion and transom combinations. Vertical sawing unit Ø 600 mm. Horizontal sawing unit Ø 500 mm. Height adjustment of the sawing unit by hand wheel with digital display. Depth stop adjustable by numerical display. Tilting adjustment of the sawing unit with digital display. Sliding of the supporting table on linear guides. Vertical and horizontal clamping.
- Standard Equipment
- 1x TCT Saw blade Ø600mm
- 1x TCT Saw blade Ø500mm
- Air filter
- Air gun
- Specifications
- 2x self braking motors 4 HP (3kw) each at 2800 r.p.m
- Hydro-pneumatic saw feed max stroke : 970 mm
- Horizontal blade: Ø 500 mm
- Vertical blade: Ø 600 mm
- Max.cutting width at 90°: 300 mm
- Max.cutting width at 45°: 190 mm
- Max.cutting width at 30°: 100 mm
- Max.heigth of the Pc. To be cutted 280 mm
- Max – cutting depth at 90° Horizontal 185 mm Vertical 235 mm
- Horizontal 185 mm
- Vertical 235 mm
- Max – cutting depth at 45° Horizontal 185 mm Vertical 235 mm
- Max – cutting depth at 30° Horizontal 130 mm Vertical 235 mm
- Horizontal 130 mm
Specifications
- Manufacturer: Audatech
- SKU: MAGMA RV
- Shipping Method: LTL Freight
- Weight: 2,650 lb
- Dimensions: 129 × 60 × 71 in
| Weight | 2650.0 lbs |
|---|---|
| Dimensions | 129.0 × 60.0 × 71.0 in |
| Brand | Audatech |
