Laguna Tools M|Flux5 208V Single Phase 40.3 cu.ft. Wet Metal Dust Collector MDCWDC-5

Laguna Tools M|Flux5 208V Single Phase 40.3 cu.ft. Wet Metal Dust Collector MDCWDC-5 is a Laguna Tools product in the Wet Dust Collectors collection.

Product Details

• Motor Speed: 3450 rpm
• Suction capacity: 3103 CFM
• Impeller size: 13”
• Outlet size: 6”
• Description

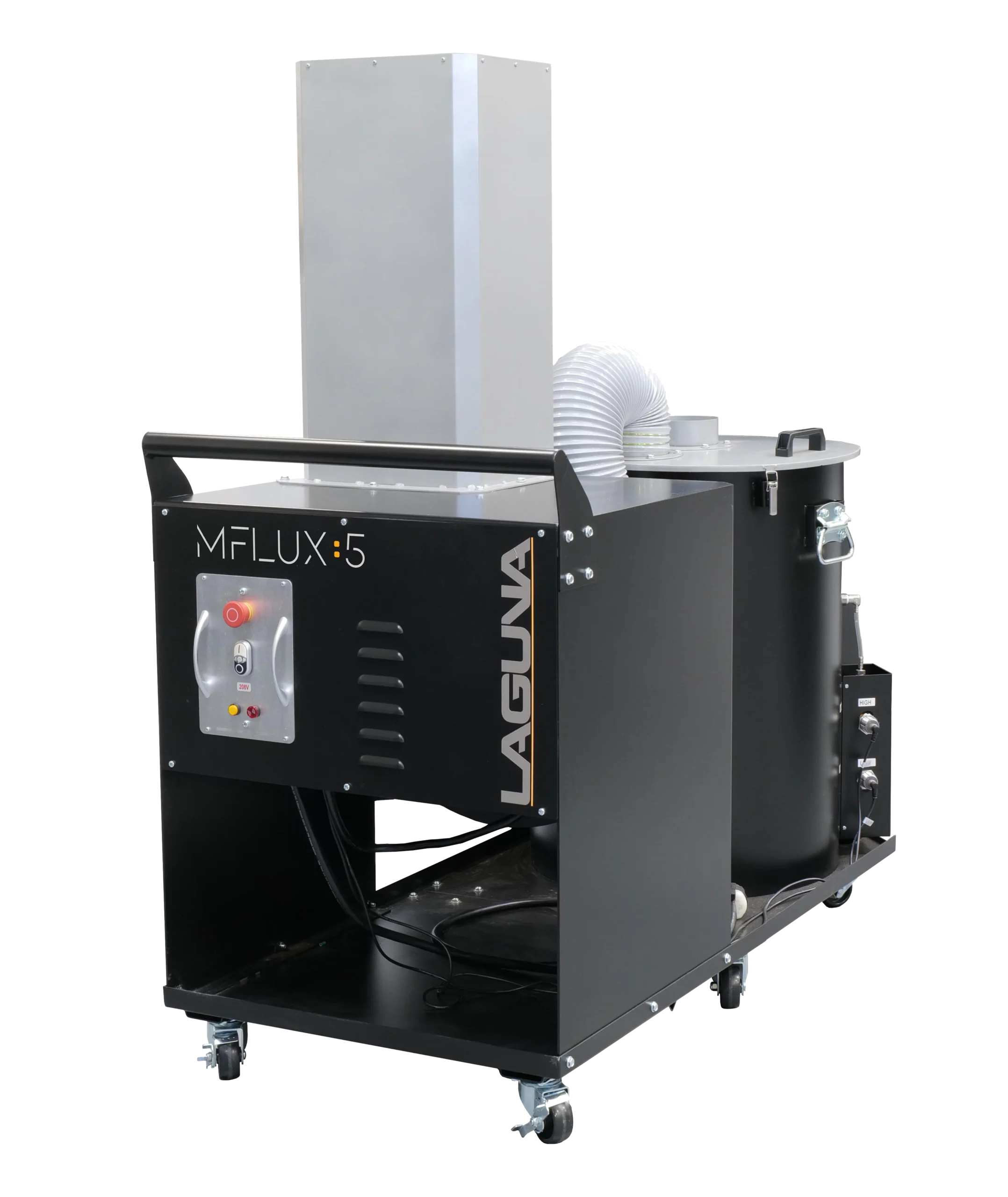

• The Laguna M|Flux 5 Wet Metal Dust Collector is a robust and high-performance industrial-grade dust collection system designed specifically for metalworking applications. This machine enhances workplace safety by efficiently collecting metal dust and preventing hazardous dust particles from dispersing. Its water-based filtration system ensures maximum dust absorption, providing a clean and healthy work environment. Built with durability and convenience in mind, the M Flux 5 is equipped with a powerful 5 HP motor, a spacious collection drum, and user-friendly controls.
• Ideal for professional workshops, the M|Flux 5 is engineered to meet stringent safety standards and can handle demanding operations with ease. Its compact footprint and advanced filtration capabilities make it a valuable addition to any metalworking setup.
• Specifications
• Power Requirements: 208V / 60 Hz / 1 Phase
• Amperage: 34 AMP
• Motor Power: 5 HP
• Suction Capacity: 3103 CFM (Cubic Feet per Minute)
• Static Pressure: 16.2 Inch H?O
• Impeller Size: 13 inches
• Inlet Size: 5 inches
• Outlet Size: 6 inches
• Switch Type: Magnetic Switch
• Net Weight: 493.5 lbs (223.3 kg)
• Gross Weight: 541.5 lbs (245.5 kg)
• Cubic Feet: 40.3 ft³
• Footprint (L x W x H): 60” x 28” x 66” (1520 mm x 710 mm x 1670 mm)
• Shipping Dimensions (L x W x H): 57” x 32.5” x 38” (1450 mm x 820 mm x 960 mm)

Specifications

• Manufacturer: Laguna Tools
• SKU: MDCWDC-5
• UPC: 195444297403
• Shipping Method: LTL Freight
• Weight: 550 lb
• Dimensions: 65 × 35 × 70 in
