Baileigh 30 Ton C-Frame Press CFP-30HD
$24,089.50Current price is: $24,089.50.
- Two speed pressing
- 480V 3-phase motor
- Throat Depth: 25.4"
- Table Height: 26.75"
Baileigh 30 Ton C-Frame Press CFP-30HD is a Baileigh Industrial product in the C-Frame Presses collection.
Product Details
- Two speed pressing
- 480V 3-phase motor
- Throat Depth: 25.4"
- Table Height: 26.75"
- Features
- 30 tons
- C-frame press
- Perfect for pressing or straightening
- Fully welded construction
- Hydraulically operated
- Adjustable slide pressure

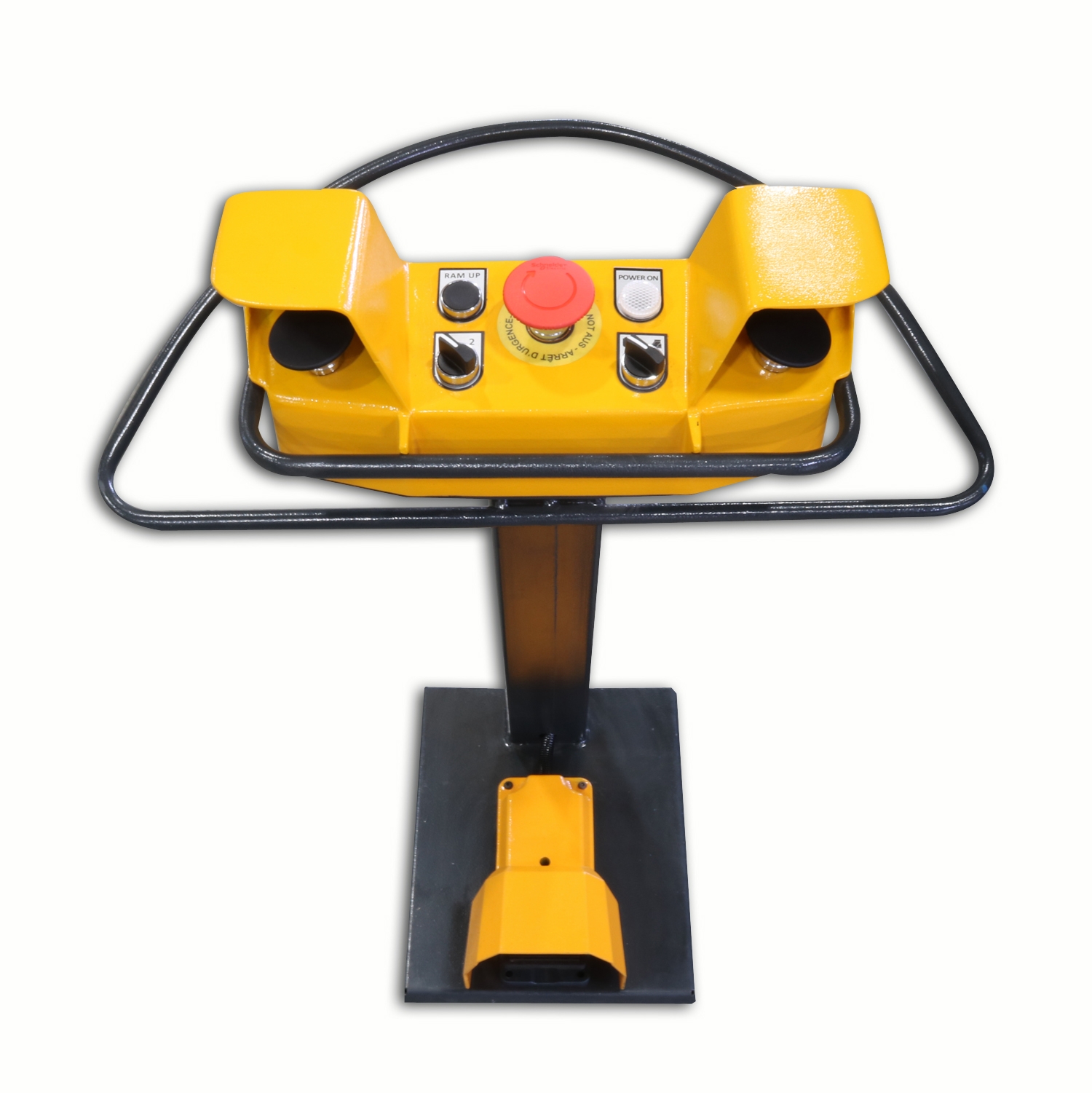

- Separate control pedestal
- Specifications
- Item Number: CFP-30HD
- Down Force: 30 tons
- Return Force: 9 tons
- Production Pressure: 3539 psi
- Return Speed: 1.1" / sec
- Bolster Size: 27.56” x 23.625” x 1.75”
- Shank Hole: 3.9”
- Motor: 5 hp
- Oil Capacity: 24 gal.
- Idle Speed: 1.26" per sec.
- Pressing Speed: .28" per sec.
- Power: 480V / 3-Phase
- Shipping Weight: 4410 lbs.
- Shipping Dimensions: 50" x 52" x 110"
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1015407
- UPC: 19907598756
- Shipping Method: Flatbed
- Weight: 5,800 lb
- Country of Origin: Turkey
| Weight | 5800.0 lbs |
|---|---|
| Brand | Baileigh Industrial |
