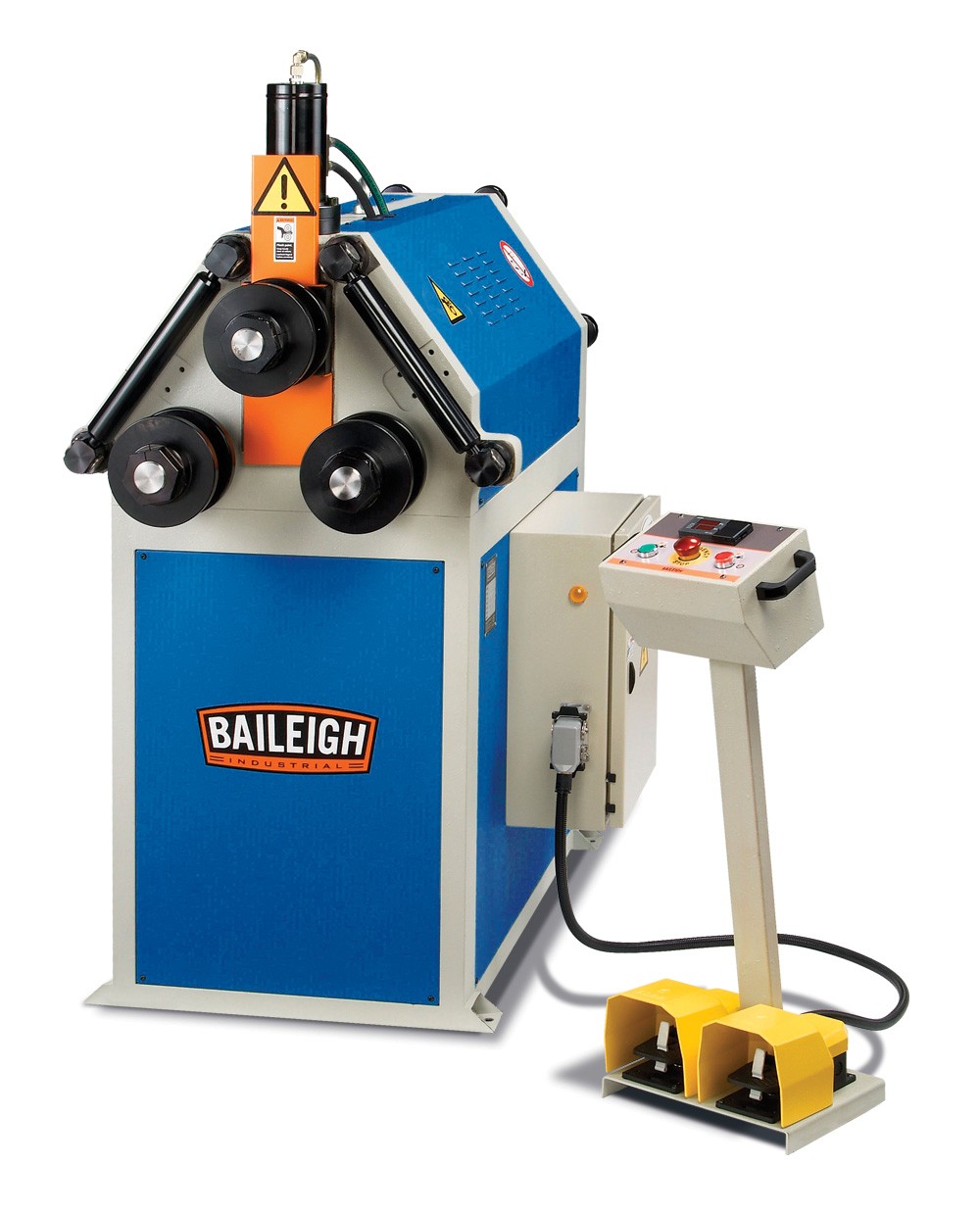

Baileigh Angle Roller R-H55
$18,315.22Current price is: $18,315.22.
- Hydraulic Adjustments
- Vertical And Horizontal Bender
- Foot Pedal Controlled
- Digital Readout
Baileigh Angle Roller R-H55 is a Baileigh Industrial product in the Roll Benders collection.
Product Details
- Hydraulic Adjustments
- Vertical And Horizontal Bender
- Foot Pedal Controlled
- Digital Readout
- The Baileigh Industrial R-H55 angle roller is perfect for bending round tube and pipe, sections, bar, and angle iron into large sweeping radii. This machine uses three driven rolls that are powered by a 220 volt three phase 5hp motor via a direct drive transmission that offer enough power to roll 4" round tubing with a .083 wall thickness. In order to achieve capacity like this the R-H55 is built from a heavy steel plate that is mounted on a fully welded steel housing. Like all section benders from Baileigh Industrial, this one can be operated in the vertical mode for smaller diameters and laid on its back for horizontal bending when larger diameters are required. The R-H55 angle roller has industrial grade hydraulics for positioning the top roll. The top roll position is controlled by the operator and the final descent and upward position is controlled by a hydraulic cylinder that has a digital readout for positioning. The DRO makes this roller bender repeatable which is very important for those multiple piece production runs. The R-H55 comes standard with a set of segment rolls, lateral roll guides for coiling, and an easy to use control station. Baileigh Industrial machines always offer great value for the investment using only the highest quality components on the market.
- Pipe Capacity: 2.5" (Sch. 40) / Min. Dia. 40"
- Round Tube Capacity: 4" (.083") / Min. Dia. 72"
- Square Tube Capacity: 2.75" (.083") / Min. Dia. 54"
- Solid Round Capacity: 2" / Min. Dia. 28"
- Flat Bar Easy Way: 5" (.75") / Min. Dia 258"
- Flat Bar Hard Way: 3.5" (.675") / Min. Dia. 32"
- Shaft Diameter: 2.165"
- Shaft Center Distance Lower Rolls: 11.875"
- Roll Adjustment: Hydrualic
- Lower Roll Dia.: 6.693"
- Pinch: Single
- Angle Iron Capacity: 3" (.250") / Min. Dia. 36"
- Digital Readout: Yes
- Power: 220V/3-Phase
- Shipping Weight: 1728lbs
- Shipping Dimensions: 60"x44"x68"
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1006836
- UPC: 19907415732
- Shipping Method: LTL Freight
- Weight: 1,320 lb
- Country of Origin: Portugal
| Weight | 1320.0 lbs |
|---|---|
| Brand | Baileigh Industrial |
