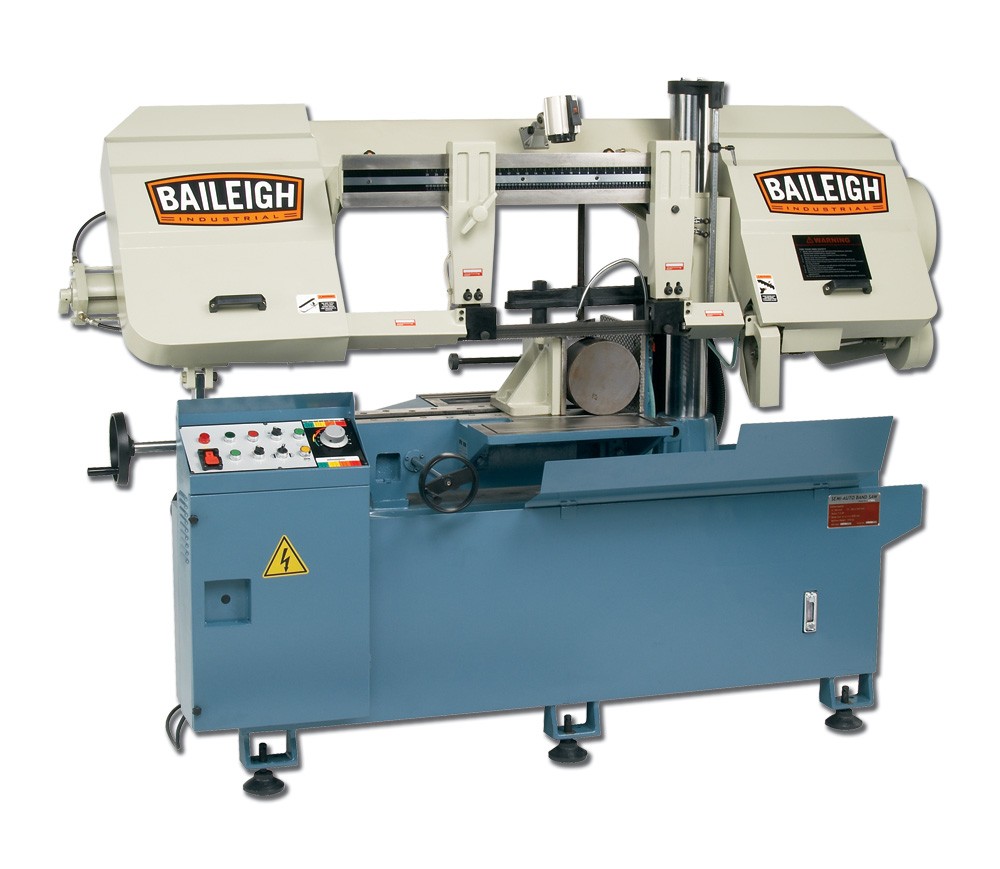

Baileigh BS-360SA Horizontal Bandsaw
$25,035.22Current price is: $25,035.22.
- 14.17" Round Capacity
- Column Type Production Saw
- Hydraulic Blade Tension
- Hydraulic Vise, Feed, And Return
Baileigh BS-360SA Horizontal Bandsaw is a Baileigh Industrial product in the Band Saws collection.
Product Details
- 14.17" Round Capacity
- Column Type Production Saw
- Hydraulic Blade Tension
- Hydraulic Vise, Feed, And Return
- If you need to cut steel all day, every day, then the BS-360SA semi-automatic column band saw is for you. This band saw has a huge 14" x 22" rectangle capacity. Like all Baileigh Industrial band saws, this single column saw is built with the highest quality components. The BS-360SA features a fully cast iron vise and bow that are machined to exacting tolerances to ensure that the cuts are as precise as possible. Fully sealed ball bearings are used as blade guides to ensure proper tracking of the blade on the BS-360SA.
- Powered by 220Volt 3 phase power, the BS-360SA has a robust 5hp motor that turns the blade and an industrial grade hydraulic system to semi-automatic features. Operation of the saw is easy and has a control panel that is simple and well labeled allowing the operator to be up and running quickly. The semi-automatic system has controls for that enable the vise to open and close as well as the bow to raise and lower hydraulically.
- Other important features of the BS-360SA column bandsaw are a hydraulic blade tension control with a blade brake switch, a flood coolant system, work light, and chip removal blade brush.
- Return: Hydraulic
- Miter Angle: NA
- Motor: 5HP
- Table Height: 29.21"
- Capacity Round: 14.17"
- Capacity Rectangular: 14.17"x22"
- Capacity Square: 14.17"
- Blade Guide: Carbide x Roller
- Blade Size (HxWxL): 1.3"x.04"x192.13"
- Blade Speed: 66-279 (Variable Speed)
- Descent Control: Pressure Assist Hydraulic
- Drive: Belt x Pulley
- Power: 220V / 3-Phase
- Shipping Weight: 3100lbs
- Shipping Dimensions: 110"x45"x78"
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1001582
- UPC: 731325398618
- Shipping Method: LTL Freight
- Weight: 3,000 lb
- Country of Origin: Taiwan
| Weight | 3000.0 lbs |
|---|---|
| Brand | Baileigh Industrial |
