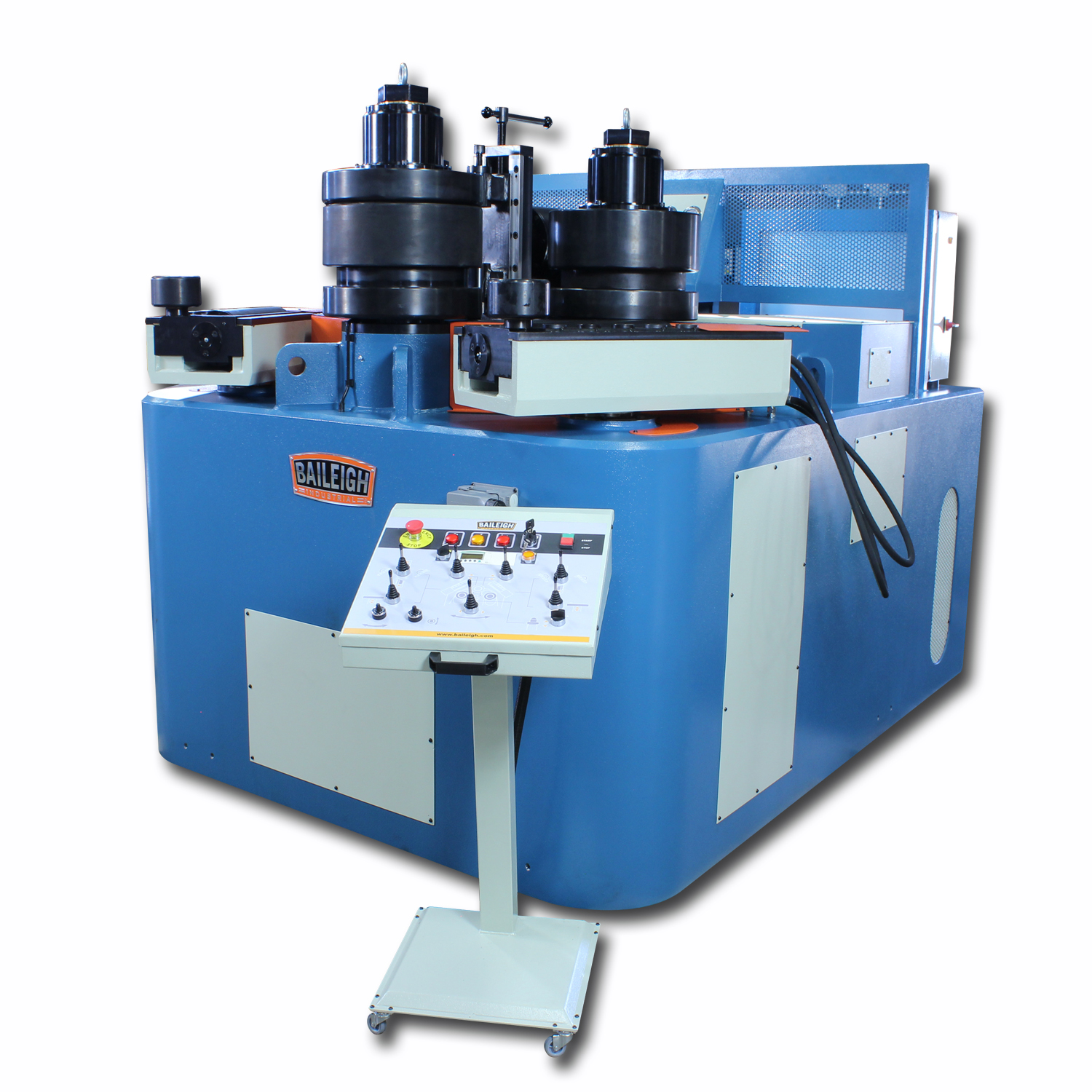

Baileigh Heavy Duty Roll Bender R-H170

Baileigh Heavy Duty Roll Bender R-H170 is a Baileigh Industrial product in the Roll Benders collection.

Product Details

• Roll Adjustment Hydraulic
• Pipe Capacity Size: 6" (sch. 40) / Min. Dia.: 98"
• Square Tube Capacity Size: 4.7" (.315")
• Solid Round Capacity Size: 4" / Min. Dia. 40"
• Description
• This fully-horizontal hydraulic roll bender draws on the strength of a heavy steel frame to tackle extended production runs of difficult segments in large ODs.
• Requires 220-volt 3-phase power.
• 3 variable-speed, driven rolls let you choose the right settings for a given part and material.
• Digital readout takes the hassle out of making repeatable parts.
• Movable operator podium allows you to control every function of the machine at once.
• Baileigh covers this angle roller with a 1-year parts warranty as well as lifetime technical support by phone.
• Use this machine for: Structural applications, playgrounds, shipyard building, or any high-production, low-waste project.
• Why choose the R-H170 over similar machines?
• We use the highest-grade steel to build this unit’s frame—unlike many other competing roll benders. Why settle for anything less than an upper-shaft diameter of just under 7.5”?
• Independently-controlled lateral roll guides and lower bending rolls come standard on a Baileigh machine, whereas other manufacturers might consider these features as upgrades.
• Intuitive controls and readouts make programming single-radius bends virtually effortless.
• We’ll collaborate with you to build a custom solution for your roll bending needs and applications.
• Baileigh’s team of knowledgeable team of reps will provide limitless project advice and machine troubleshooting by phone.
• Specifications
• Item Number R-H170
• Country of Manufacture Portugal
• Flat Bar Easy Way Size: 9.75" (1.5") / Min. Dia. 40"
• Flat Bar Hard Way Size: 5.875" (1.375")/ Min. Dia.: 40"
• Lower Shaft Dia. 6.69"
• Upper Shaft Dia. 7.48"
• Control DRO
• Motor 5.3 hp
• Pinch Double
• Power 220V 3- phase
• Shipping Weight 9.5 tons
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• *Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
• Dimensions L x W x H 94.5" x 146" x 69"
• *All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.*

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006834
• UPC: 19907596615
• Shipping Method: Flatbed
• Weight: 21,500 lb
• Dimensions: 90 × 146 × 69 in
• Country of Origin: China
