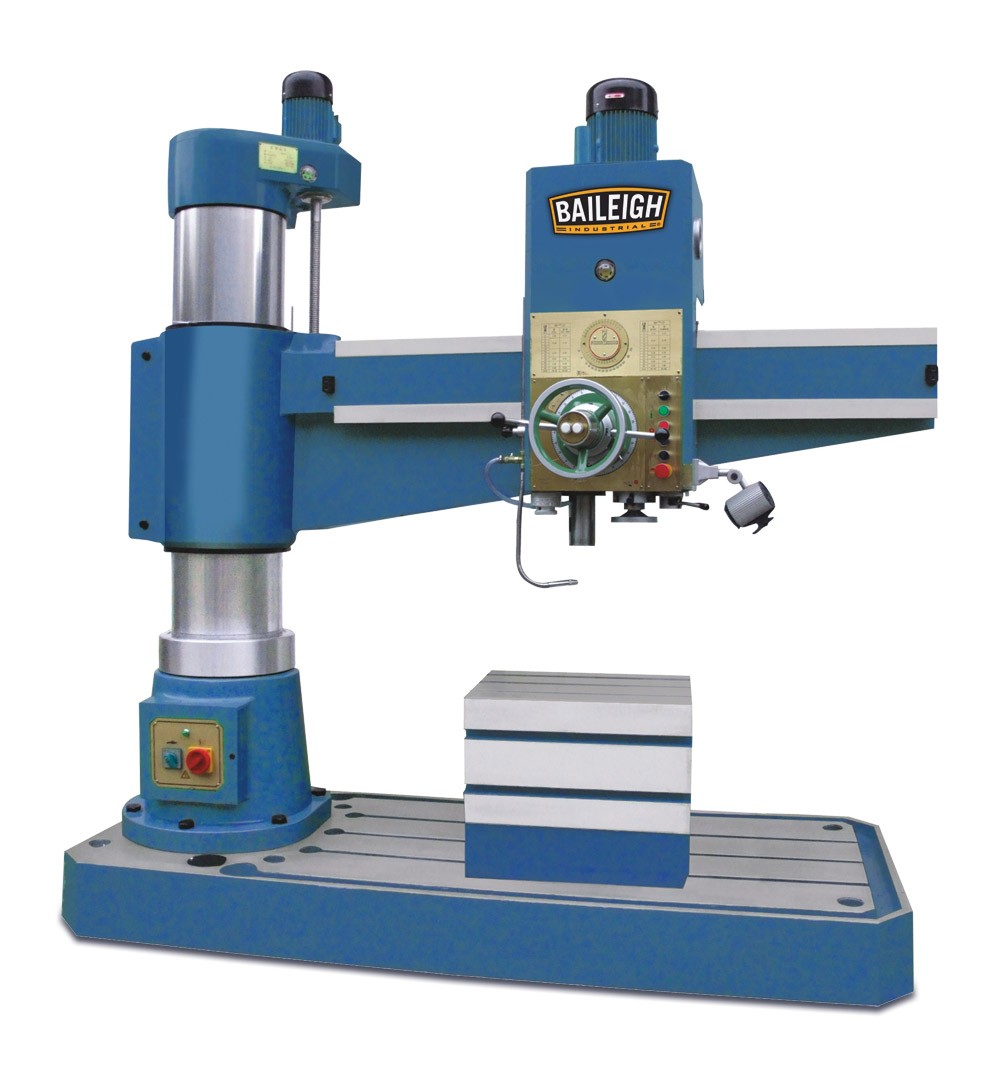

Baileigh Hydraulic Radial Drill Press RD-1600H
$26,001.47Current price is: $26,001.47.
- 2" maximum drilling capacity
- Heavy duty construction
- Power down feed
- Large 63" column
Baileigh Hydraulic Radial Drill Press RD-1600H is a Baileigh Industrial product in the Drill Presses collection.
Product Details
- 2" maximum drilling capacity
- Heavy duty construction
- Power down feed
- Large 63" column
- Description
- Are you in the market for a large radial drill for your fabrication shop? Does it have to have a really y large swing? Then the RD-1600H hydraulic radial drill press is for you. This press has a 5.25 hp motor that is powered by 220-volt three phase power.
- Features
- MT5 spindle
- Box shape worktable
- 220V 3-phase
- Includes spindle protection cover, quick chuck, tapping chuck, Industrial coolant system, work light, and box shaped work table.
- Specifications
- Item Number: RD-1600H
- Max. Drill Capacity: 2"
- Distance from Spindle to Column Center : 13.7" to 63"
- Diameter of Column: 13.7"
- Spindle Taper: MT5
- Spindle Travel: 12.4"
- Spindle Speed Range: 25 to 2000 rpm
- Range of Spindle Feeds: .001" to .125"
- Spindle Feeds: 16
- Distance Between Spindle Nose and Base: 12.6" to 48"
- Table Size: 24.8" x 19.6" x 19.6"
- Base Size: 94.4" x 39.3" x 7.8
- Overall Size: 98” x 40”~96” x 103”~112” Accounting for Beam Movements
- Motor: 5.25 hp
- Power: 220V 3-phase
- Shipping Weight: 9500lbs
- Shipping Dimensions (Inches): 109x45x102
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1008486
- UPC: 731325420999
- Shipping Method: Flatbed
- Weight: 9,500 lb
- Dimensions: 109 × 45 × 102 in
- Country of Origin: China
| Weight | 9500.0 lbs |
|---|---|
| Dimensions | 109.0 × 45.0 × 102.0 in |
| Brand | Baileigh Industrial |
