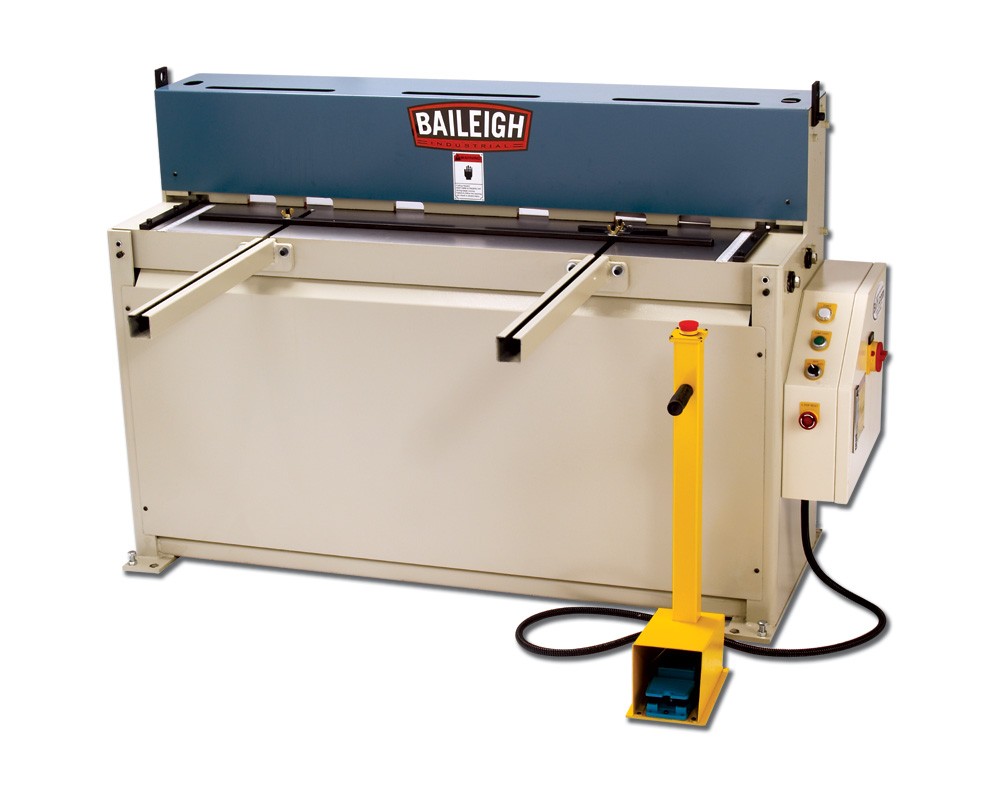

Baileigh Industrial 3HP 220V Single Phase 52” Hydraulic Medium Duty Shear SH-5214 BA9-1007148
$7,961.85Current price is: $7,961.85.
- Back Gauge Length: 24"
- Thickness (SS): 14 ga. (18 ga.)
- Strokes Per Minute: 35
- Front Gauge Length: 24"
Baileigh Industrial 3HP 220V Single Phase 52” Hydraulic Medium Duty Shear SH-5214 BA9-1007148 is a Baileigh Industrial product in the Shears collection.
Product Details
- Back Gauge Length: 24"
- Thickness (SS): 14 ga. (18 ga.)
- Strokes Per Minute: 35
- Front Gauge Length: 24"
- Description
- A dependable tool for a great price, this hydraulic shear draws strength from a welded steel plate frame. Auto mode with 35 strokes per minute makes the SH-5214 efficient for production.
- Features
- 52” length.
- 14 gauge mild steel maximum capacity.
- Minimum capacity of 24 gauge mild steel.
- Runs on 220-volt single-phase power.
- Adjustable 24” backgauge ensures precise repeatability.
- Front arm extensions and table guides keep the material square to the blade.

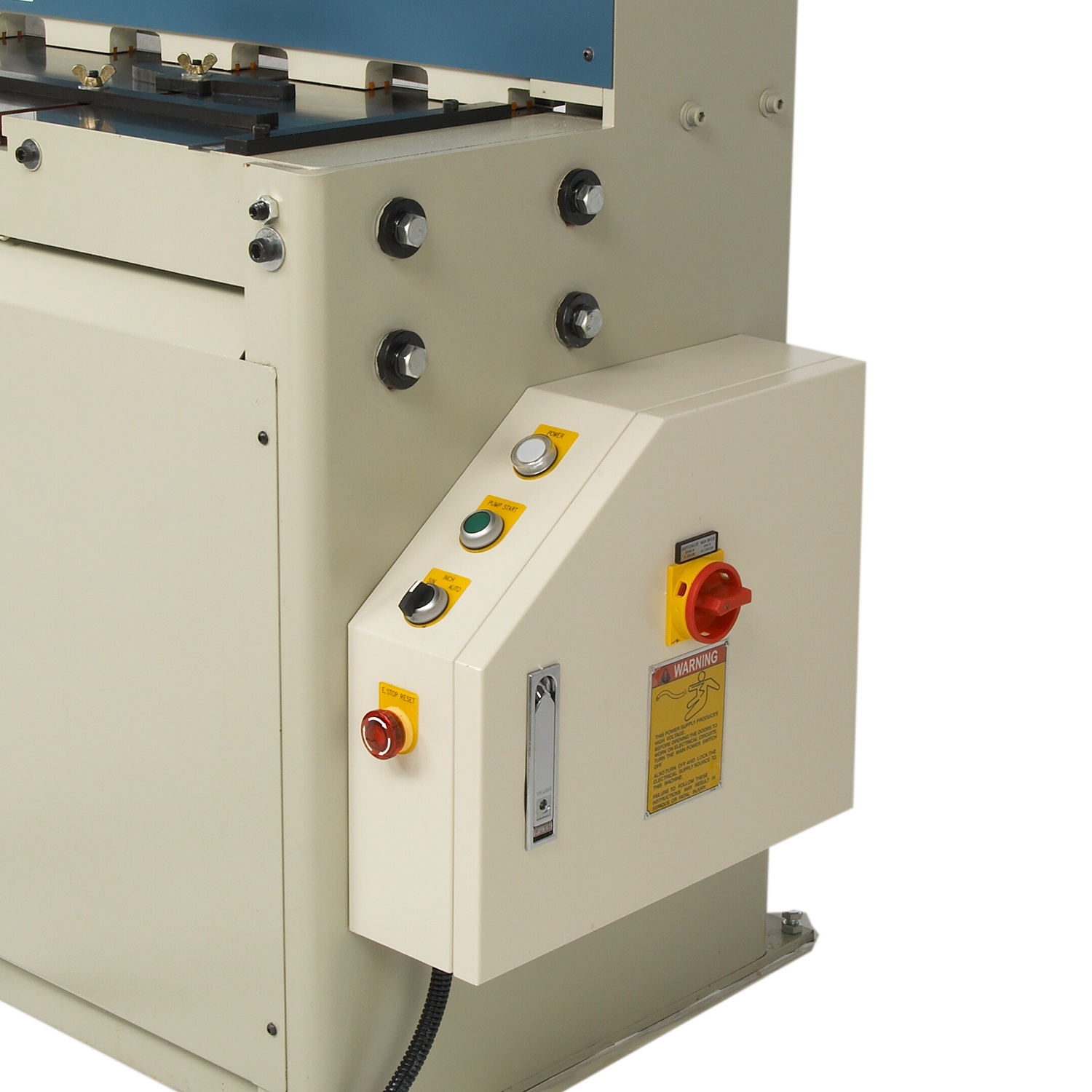

- 3 modes on the operator console:
- Inch mode: Jog the control and ease the blade down to the material.

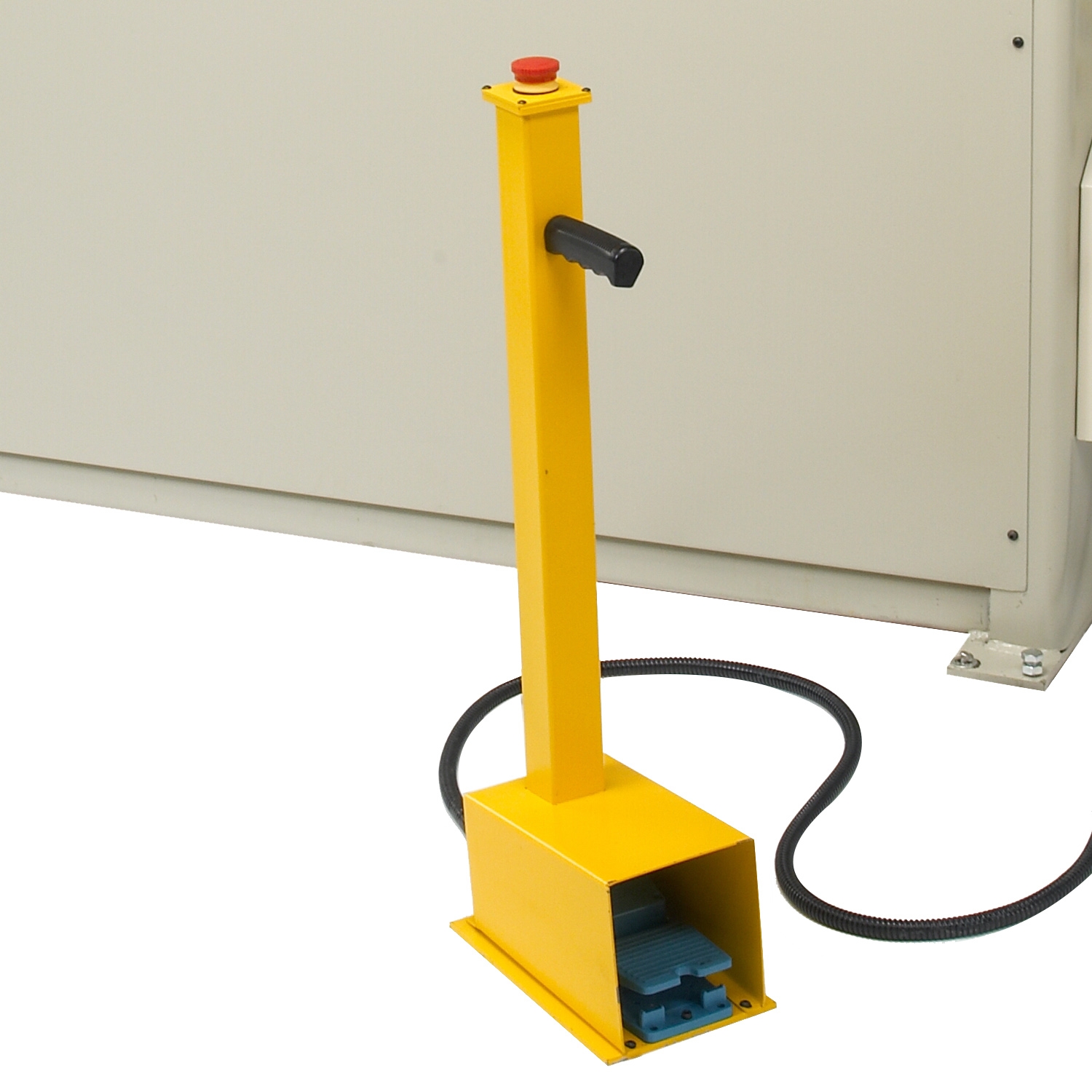

- Single mode: Make one cut cycle per foot pedal push.
- Auto mode: Continue cycling as you hold the pedal down.
- Comes standard with high carbon chromium blades.
- Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
- Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
- Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
- Covered by a 1-year parts warranty.
- Baileigh stocks replacement parts, including blades, in house for fast shipping.
- Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.
- Specifications
- Item Number: SH-5214
- Shear Length: 52"
- Motor: 3 hp
- Blade Angle: 1°
- Power: 220V Single Phase
- Shipping Weight: 1,880 lbs.
- Minimum Material Thickness: 24ga
- Shipping Dimensions: 75” x 33” x 55”
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1007148
- UPC: 731325413960
- Shipping Method: LTL Freight
- Weight: 1,880 lb
- Dimensions: 75 × 33 × 55 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 1880.0 lbs |
|---|---|
| Dimensions | 75.0 × 33.0 × 55.0 in |
| Brand | Baileigh Industrial |
