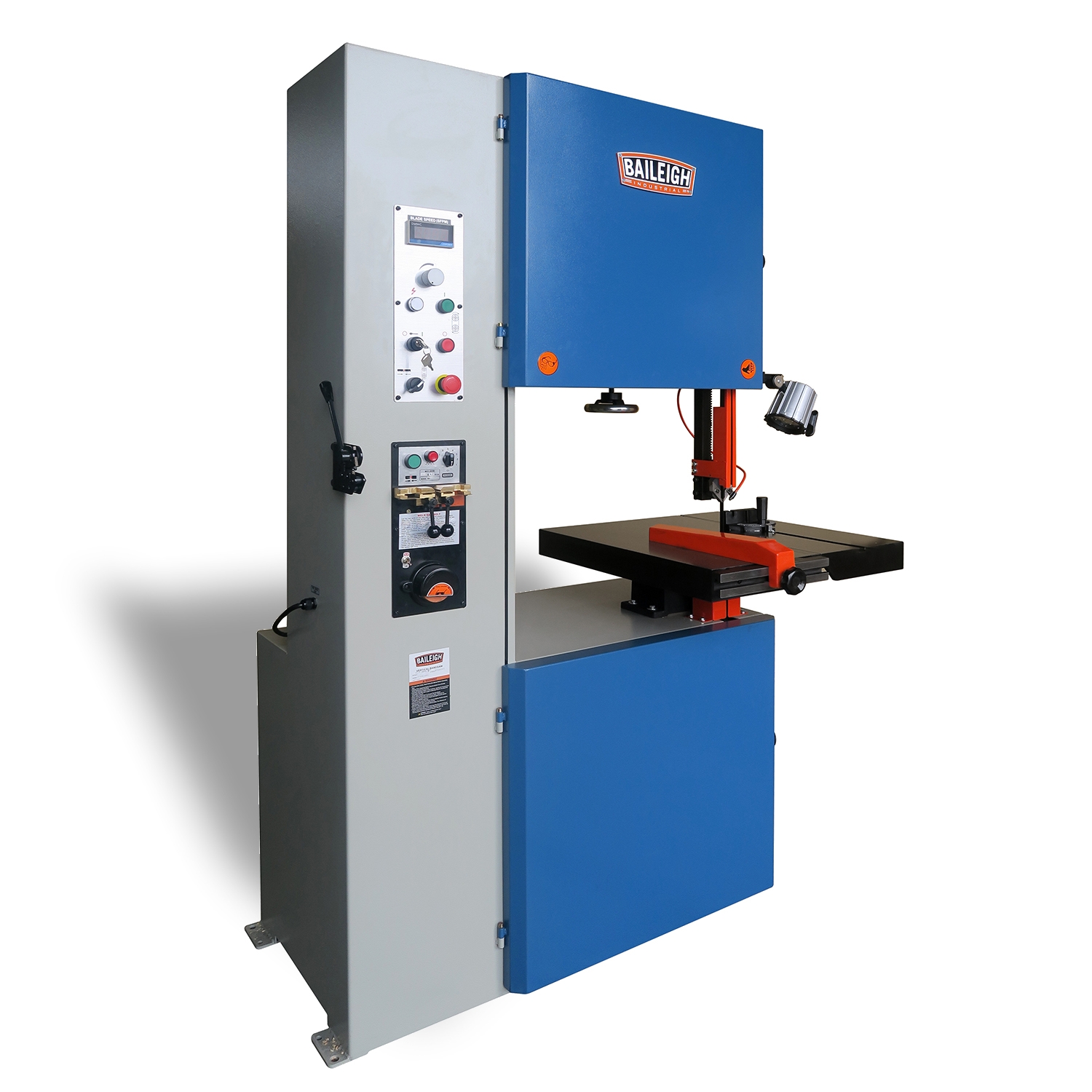

Baileigh Industrial 3HP 220V Three Phase Vertical Band Saw BSV-24VS-V2 1230391

Baileigh Industrial 3HP 220V Three Phase Vertical Band Saw BSV-24VS-V2 1230391 is a Baileigh Industrial product in the Band Saws collection.

Product Details

• Maximum Thickness: 12.2"
• Speed Control: Inverter
• Table Size: 24" x 24"(cast) & 7.8" x 24"(steel)
• Welder Capacity: 0.74"
• Description
• The BSV-24VS-V2 is the largest non-mitering vertical bandsaw in Baileigh’s line up, this metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.
• Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.
• Features
• 3 hp motor runs on 220-volt three phase power.
• Wide 23.6" throat depth.
• 12.2” maximum cutting thickness.
• Accepts standard 1/8” to 5/8” blades.
• Cast iron table can pivot left to right.
• Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
• Inverter controlled variable speeds from 85 to 2200 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
• DRO lets you see the blade speed, so you can choose the right settings for your material and extend blade life.
• This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
• Halogen work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.
• Both the saw and its replacement parts are typically in stock for fast deliveries.
• Includes lifetime technical support by phone. You can call Baileigh’s team of experienced reps whenever you need help with this metal-cutting band saw.
• Specifications
• Item Number: BSV-24VS-V2
• Slant of Table: 45°R & 15°L
• Motor: 3 hp
• Included Accessories: Blade welder, LED work light, Chip blower, Rip fence, Miter gauge
• Throat Depth: 23.6"
• Table Height: 36.4"
• Blade Length: 177.95”-179.13"(4520-4550mm)
• Blade Speed (fpm): 85-2200 Variable Speed
• Blade Thickness: 0.032"
• Power: 220V / 3-phase
• Shipping Weight: 1,025 lbs.
• Included Blade Size: 0.118”(13mm) x 14T
• Shipping Dimensions (L x W x H): 53.54” x 33.46” x 85.43”
• Machine Dimensions (L x W x H): 49.6" x 33" x 86.22"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1230391
• UPC: 19907702474
• Shipping Method: LTL Freight
• Weight: 1,025 lb
• Dimensions: 54 × 34 × 86 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
