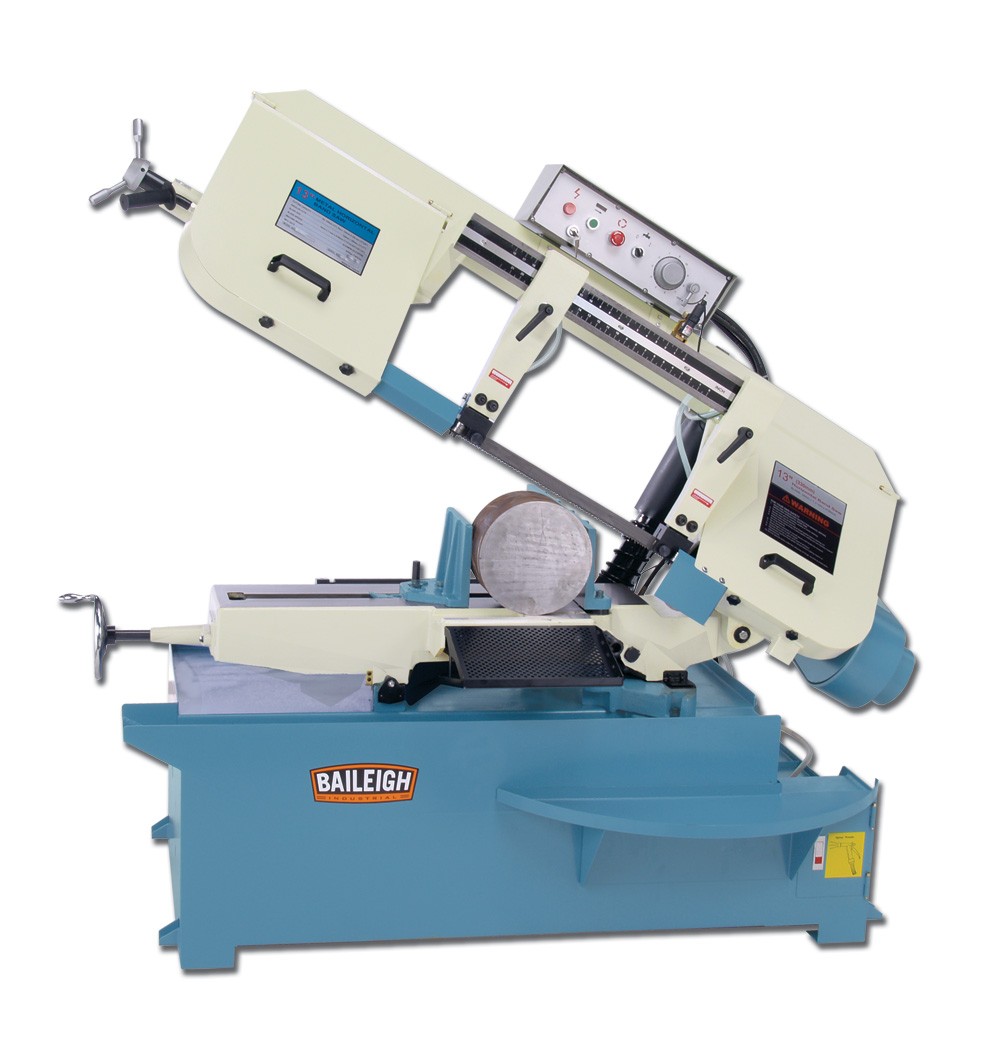

Baileigh Metal Cutting Bandsaw BS-330M
$13,554.11Current price is: $13,554.11.
- Cuts Metal and More
- 1-1/4" Blade Standard
- Variable-Speed
- Automatic Shut-Off
Baileigh Metal Cutting Bandsaw BS-330M is a Baileigh Industrial product in the Band Saws collection.
Product Details
- Cuts Metal and More
- 1-1/4" Blade Standard
- Variable-Speed
- Automatic Shut-Off
- The BS-330M manual bandsaw from Baileigh Industrial has been a mainstay in our lineup since it was introduced in 2005. This saw will provide years of trouble free use in any environment. The BS-330M has a maximum capacity of 13" OD round, but can cut up to 13" x 18½" rectangle when stood upright.
- The Blade speed on the BS-330M is variable form 82 to 270 feet per minute. This allows the operator to set the speed at the perfect fpm for the material being cut. The 3 hp motor on the BS-330M is powered by 220 volt 3 phase power for more reliability and efficiency over single phase.
- The BS-330M bandsaw features a mitering head that can go to 45 degrees. Like most bandsaws from Baileigh Industrial, the mitering head and bow are made from heavy duty cast iron to reduce vibrations during the cutting process. A large 1-1/4" blade runs through tungsten carbide blade guides for a more precise cut, both are standard issue on the BS-330M.
- Operation of the BS-330M manual band saw is also very easy and features a hydraulic descent feature for larger production runs that increases blade life and reduces operator fatigue. The blade will also stop running when the saw gets to the bottom of the cut to promote safety.
- The BS-330M is almost always in stock for quick deliveries.
- Return: Manual
- Miter Adjustment: Swivel Head and Vise
- Miter Angle: 0 – 45º
- Motor: 3 Hp
- Capacity Rectangular 90 x 45 x 45L: 13" x 18.9" x 11" x 10.04"
- Table Height: 30.5"
- Capacity Round 90º x 45º: 13" x 8.86"
- Capacity Square 90º x 45º: 13" x 8.86"
- Blade Guide: Carbide x Roller
- Blade Size (H x W x L): 1.25" x .043" x 161.4"
- Blade Speed (fpm): 82 – 270
- Descent Control: Hydraulic
- Drive: Belt x Pulley
- Power: 220V / 3-Phase
- Shipping Weight: 1,826 lbs.
- Shipping Dimensions: 90" x 37" x 61"
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1001517
- UPC: 731325398076
- Shipping Method: LTL Freight
- Weight: 1,720 lb
- Country of Origin: Taiwan
| Weight | 1720.0 lbs |
|---|---|
| Brand | Baileigh Industrial |
