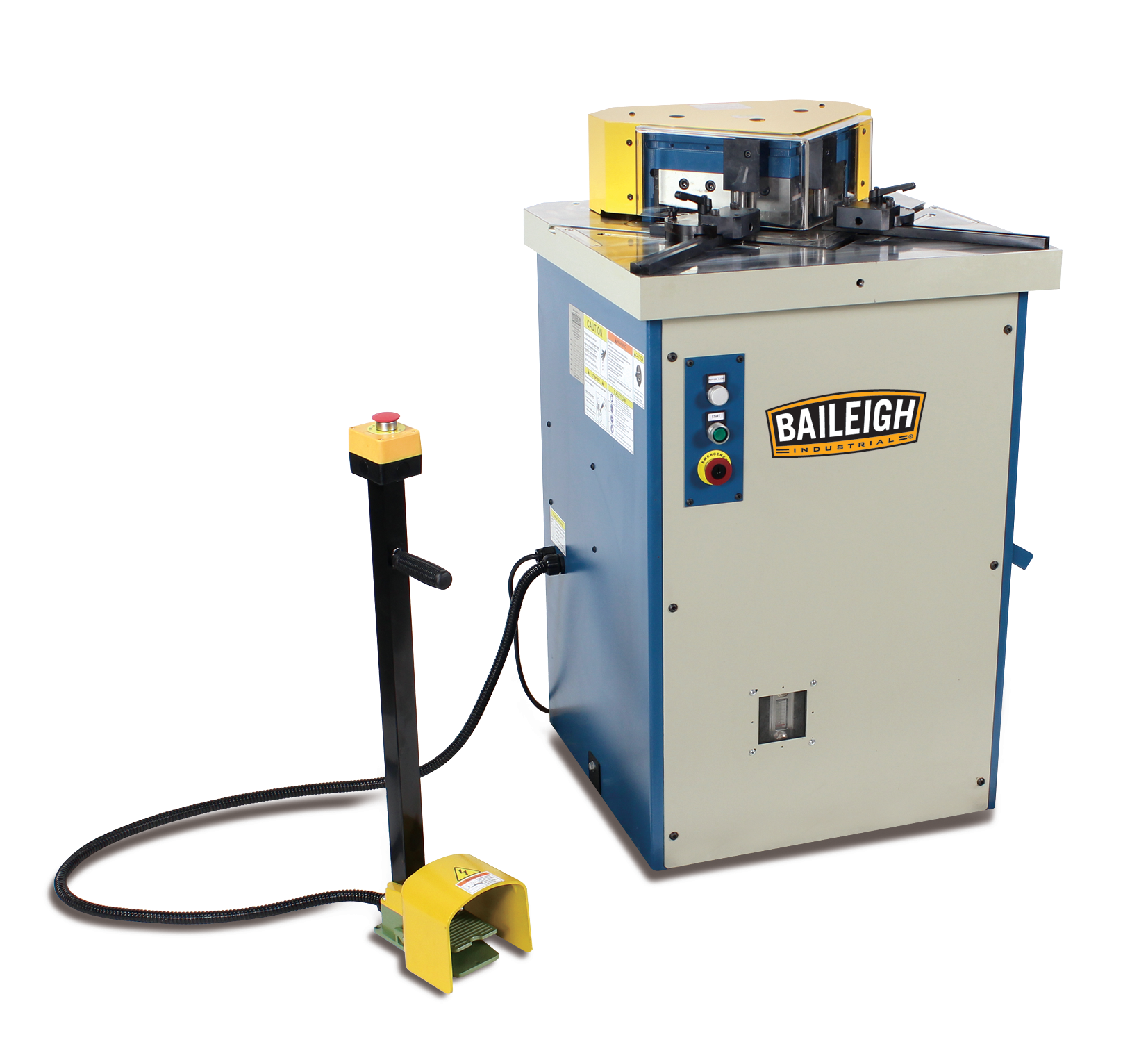

Baileigh Sheet Metal Notcher SN-F04-MS
$11,024.29Current price is: $11,024.29.
- Blade Length 8"
- Max. Capacity Mild Steel 9ga.
- 4HP Motor
- 15 Strokes Per Minute
Baileigh Sheet Metal Notcher SN-F04-MS is a Baileigh Industrial product in the Notchers collection.
Product Details
- Blade Length 8"
- Max. Capacity Mild Steel 9ga.
- 4HP Motor
- 15 Strokes Per Minute
- Description
- If you are looking for a little more capacity from your corner notcher, try the SN-F04-MS sheet metal corner notcher from Baileigh Industrial. The SN-F04-MS is the great for making perfect corners in metal that are impossible with hand tools. This corner notcher has a 6mm or 4 gauge mild steel capacity, so it can make quick work of most any job. The SN-F04-MS corner notcher has blades that are fixed at 90°, ensuring a perfect notch every time. A 25.5" x 25.5" oversized working table includes table guides, for even more accuracy. The SN-F04-MS sheet metal notcher has 8.5" long blades that can be flipped and resharpened many times for even more life and cost savings. The blades are also negatively raked to pull the material to the stops during the cut, for the most accuracy available. The SN-F04-MS sheet metal notcher comes with a powerful 220V 3 phase motor for years of notching and with a operator controlled foot pedal controls the SN-F04-MS is capable of 15 strokes per minute.
- Motor: 4HP
- Strokes Per Minute: 15
- Table Size: 27"x23.5"
- Blade Gap Adjustment: Manual
- Max. Cpacity Mild Steel (SS Capacity With Optional Blades): 9 ga. (13ga.)
- Power: 220V/3-phase
- Shipping Weight: 1100lbs
- Shipping Dimensions: 60"x44"x68"
- Max Notch Dimensions: 8-1/2"x8/1/2"
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1007213
- UPC: 731325414530
- Shipping Method: LTL Freight
- Weight: 1,155 lb
- Country of Origin: Taiwan
| Weight | 1155.0 lbs |
|---|---|
| Brand | Baileigh Industrial |
