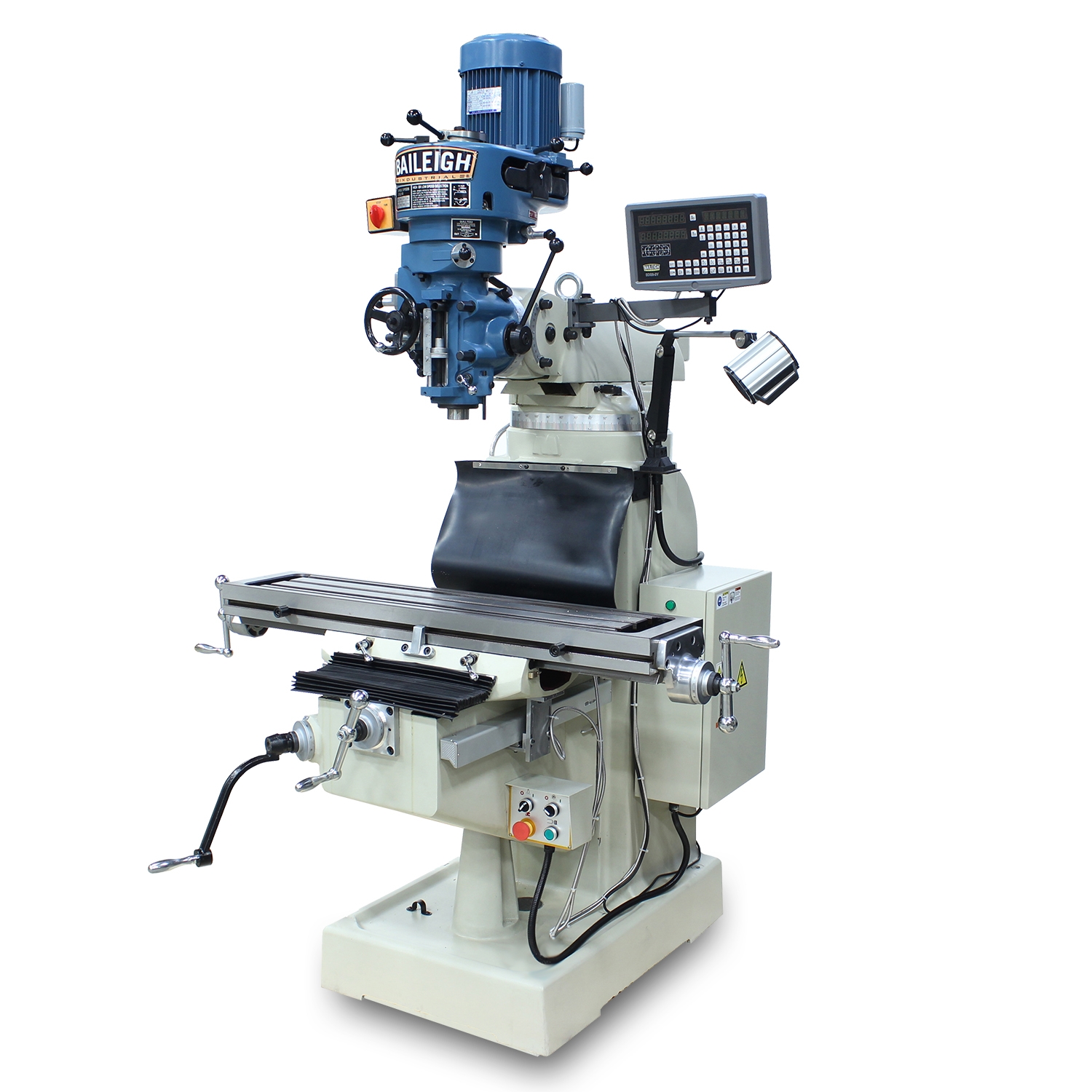

Baileigh Vertical Knee Mill VM-942E-1
$7,149.50Current price is: $7,149.50.
- Spindle Speeds 8
- Spindle Travel 5"
- Spindle Speed Range 80, 140, 230, 350, 650, 1100, 1800, 2760 RPM
- T-Slot Width 5/8"
Baileigh Vertical Knee Mill VM-942E-1 is a Baileigh Industrial product in the Milling Machines collection.
Product Details
- Spindle Speeds 8
- Spindle Travel 5"
- Spindle Speed Range 80, 140, 230, 350, 650, 1100, 1800, 2760 RPM
- T-Slot Width 5/8"
- Description
- Baileigh Industrial has a line of vertical milling machines to meet any shops requirements, whether it is price, size, or power. The VM-942E-1 vertical milling machine fits into the price category, but that does not mean that it doesn’t have features to back it up and make it a great value.
- The VM-942 is an 8 speed milling machine that allows speed adjustments from 60 to 2760 rpm. Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money. Speaking of the quill or spindle Baileigh Industrial has specified a R8 spindle taper for the VM-942E-1. The R8 taper is the most common taper in the industry making tooling easy to source.
- The VM-942E-1 has a powerful 3 hp motor that runs on 220 volt single phase power and features a two axis digital read out. Other standard features of the VM-942 milling machine include a, coolant system dovetail slide ways, way covers, and halogen wok light.
- Specifications
- Item Number VM-942E-1
- Table Size 42" x 9"
- Spindle Center To Column Min Max 0 – 12"
- Spindle Diameter 3-11/32"
- Spindle Feed Per Rev .0015"/.003"/.006"
- Spindle Head Swivel 45° (F&R) 90° (R&L)
- Motor Spindle 3 hp
- Travel Auto X Axis 25-1/4"
- Travel Auto Y Axis 12-1/8"
- Travel Auto Z Axis 14-5/8"
- Spindle Nose To Table Min Max 2-3/8" – 17"
- Spindle Taper R8
- Table Load Capacity 770 lbs.
- Motor Coolant 1/8 hp
- Cross Travel Of Ram 13-1/2"
- Power 220V / 1-phase
- Shipping Weight 2,100 lbs.
- Shipping Dimensions 60" x 60" x 83"
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1020695
- UPC: 19907767763
- Shipping Method: LTL Freight
- Weight: 2,250 lb
- Country of Origin: China
| Weight | 2250.0 lbs |
|---|---|
| Brand | Baileigh Industrial |
