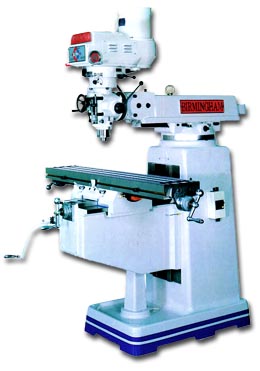

Birmingham Vertical Milling Machine 10″ x 54″ Variable Speed BPV-1054
$11,700.00Current price is: $11,700.00.
- Class 7 Spindle, R-8 Spindle, Chromed Quill
- Certified Meehanite Castings, Turcite B on Female Surfaces, 10″ x 54″ Table
- Easy to Read Dials, One Shot Lubrication, Dove Tail Ways Table and Knee
- Square Ways on Saddle, Hardened and Ground Table, Hardened and Ground X and Y Slideways
Birmingham Vertical Milling Machine 10″ x 54″ Variable Speed BPV-1054 is a Birmingham Machine Tools product in the Milling Machines collection.
Product Details
- Class 7 Spindle, R-8 Spindle, Chromed Quill
- Certified Meehanite Castings, Turcite B on Female Surfaces, 10″ x 54″ Table
- Easy to Read Dials, One Shot Lubrication, Dove Tail Ways Table and Knee
- Square Ways on Saddle, Hardened and Ground Table, Hardened and Ground X and Y Slideways
- Description
- This is our choice for those who need more work space. The 10 x 54 table allows you plenty of room for fixtures, multiple vises etc. The saddle is larger and rides on square ways.
- Features
- Dual Table Locks, Cool Ready Base
- Specifications
- Table Size: 10″ x 54″
- Table load capacity: 800 lbs.
- Table T-slot size: 5/8″ x 3″
- Longitudinal travel hand only: 38″
- Longitudinal travel w/power feed: 34 1/4″
- Cross travel: 18″
- Vertical travel: 18″
- Ram travel: 18″
- Quill travel: 5″
- Spindle taper: R8
- Head swivel RH.LH: 90°/90°
- Head tilting f/b: 45°/45°
- Ram turret swivel: 360°
- Spindle motor: 3 hp 3Ø(2 hp 1ph 8 speeds)
- Spindle speeds type: step pulley OPTIONAL
- Spindle speeds (rpm) Step Head: 90-5600 (16 speeds)
- 90-2800 (8 speeds)
- Variable Speed Head: 60-4300 STANDARD….
- Net weight: 3400 lbs
- A x B x C: 89″ x 81″ x 72
- Options:
- Digital read out two and three axis… call for pricing many brands available.
- Power feeds, X, Y and Z
- Vises, Clamp Sets, Collet Sets, Coolant System, Power Draw Bar
Specifications
- Manufacturer: Birmingham Machine Tools
- SKU: BPV-1054
- Shipping Method: LTL Freight
- Weight: 3,400 lb
- Dimensions: 89 × 81 × 72 in
