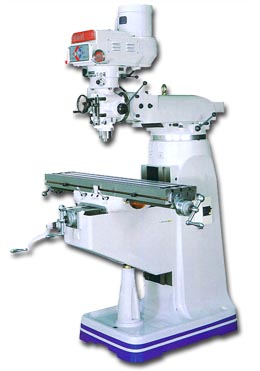

Birmingham Vertical Milling Machine 9″ x 49″ Variable Speed BPV-3949
$6,747.50Current price is: $6,747.50.
- Certified Meehanite Castings, Turcite B on Female Surfaces, 9″ x 49″ Table
- Easy to Read Dials, Dove Tail Ways, One Shot Lubrication,
- Hardened and Ground Table, Hardened and Ground X and Y Slideways
- Dual Table Locks, Dual Knee Locks
Birmingham Vertical Milling Machine 9″ x 49″ Variable Speed BPV-3949 is a Birmingham Machine Tools product in the Milling Machines collection.
Product Details
- Certified Meehanite Castings, Turcite B on Female Surfaces, 9″ x 49″ Table
- Easy to Read Dials, Dove Tail Ways, One Shot Lubrication,
- Hardened and Ground Table, Hardened and Ground X and Y Slideways
- Dual Table Locks, Dual Knee Locks
- Description
- The Birmingham BPV-3949 has all the same great features and specifications the BPS series has but includes a Variable Speed Drive system. To change the spindle RPM you simply turn a handle located on the right side of the work head.
- The machine features a Taiwan Made Class 7 Spindle Head mounted to a certified meehanite machine base manufactured in China with an ISO 9002 rating. All the female sliding surfaces are coated with Turcite B that reduces stick slip and extends the life of the way surfaces. This is how the best machines are built today.
- Features
- 3 HP, 16 Speed Step Pulley Head, Class 7 R8 Spindle, Chromed Quill
- Coolant Ready Base
- Specifications
- Table Size: 9″ x 49″
- Table load capacity: 600 lbs.
- Table T-slot size: 5/8″ x 3″
- Longitudinal travel hand only: 35 1/2″
- Longitudinal travel w/power feed: 33″
- Cross travel: 13 1/4″
- Vertical travel: 16″
- Ram travel: 12″
- Quill travel: 5″
- Spindle taper: R8
- Head swivel RH. LH.: 90°/90°
- Head tilting f/b: 45°/45°
- Ram turret swivel: 360°
- Spindle motor: 3 hp 3Ø std…… single phase available CALL
- Spindle speeds type: Variable Speed.
- Spindle speeds (rpm): 60 to 4300 RPM
- Net weight: 2400 lbs
- A x B x C: 86″ x 68″ x 67″
- Options:
- Digital read out two and three axis… call for pricing many brands available.
- Power feeds, X, Y and Z
- Vises, Clamp Sets, Collet Sets, Coolant System, Power Draw Bar
Specifications
- Manufacturer: Birmingham Machine Tools
- SKU: BPV-3949
- Shipping Method: LTL Freight
- Weight: 2,600 lb
- Dimensions: 86 × 68 × 67 in
| Weight | 2600.0 lbs |
|---|---|
| Dimensions | 86.0 × 68.0 × 67.0 in |
| Brand | Birmingham Machine Tools |
