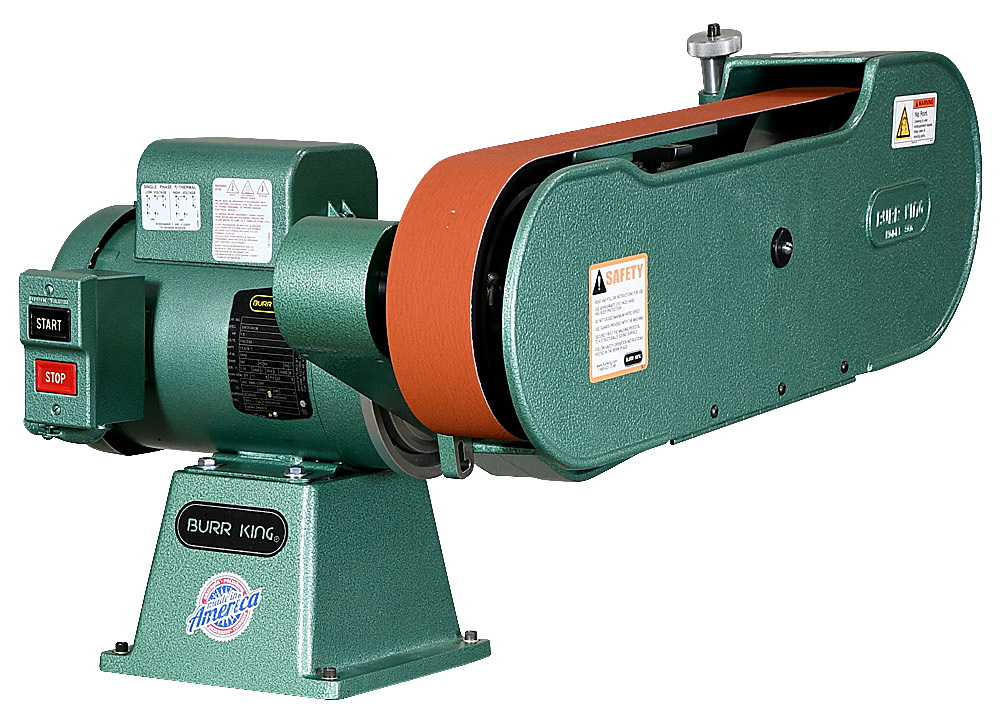

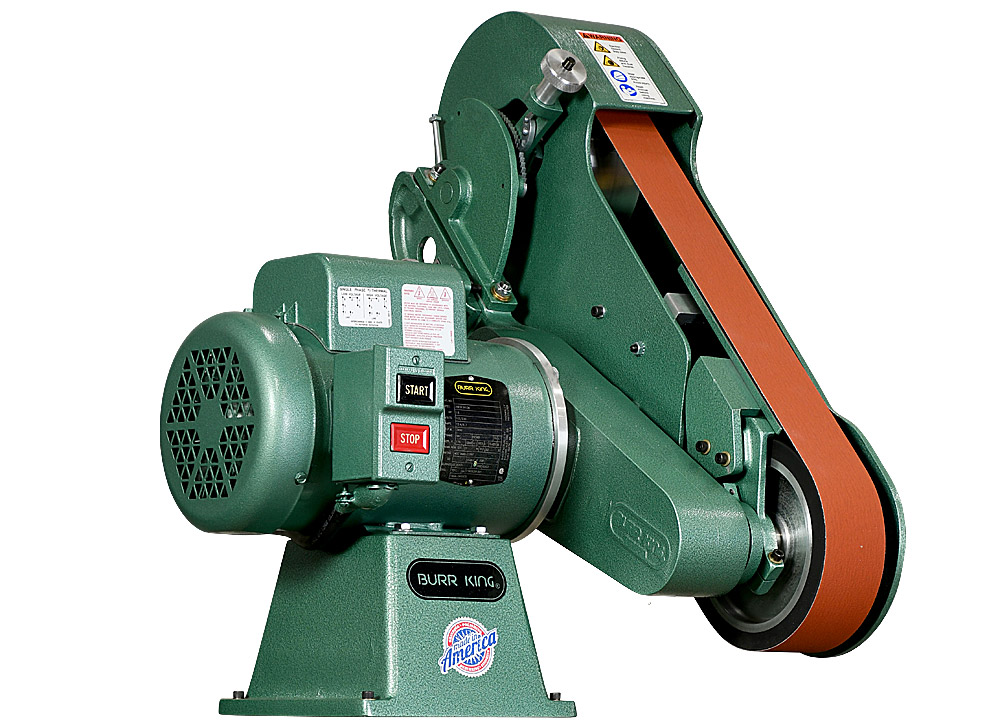

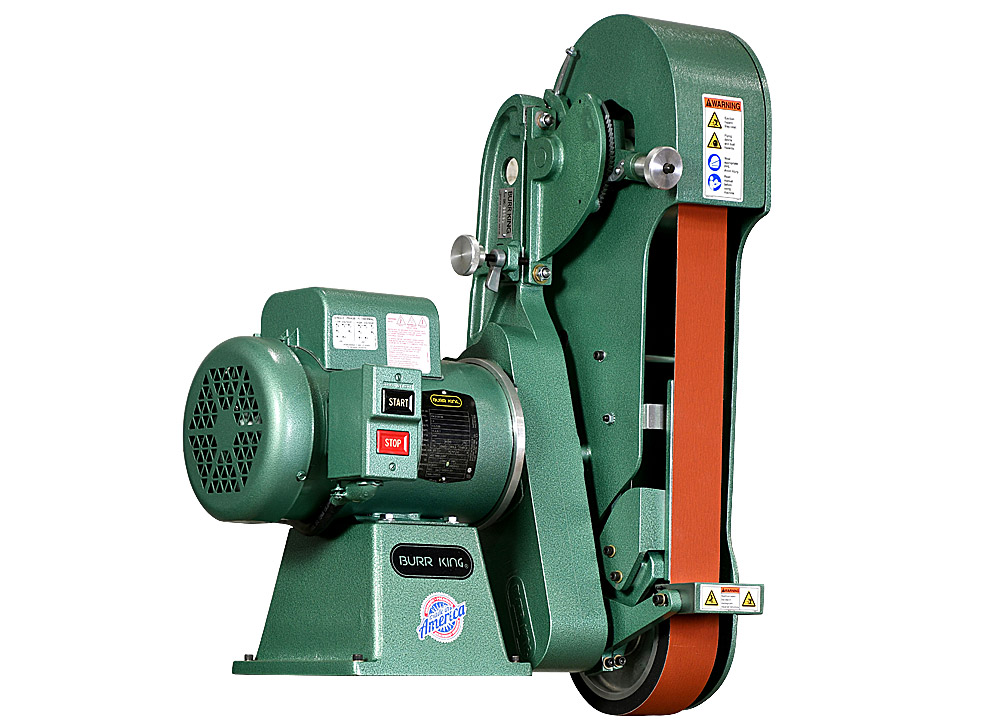

Burr King 2.5” x 60” Two Wheel 960-250 Fixed Speed 1.5 HP 120V Single Phase Belt Grinder 90100
$2,232.10Current price is: $2,232.10.
- Fixed Speed: 8000 SFPM
- Contact Wheel Size: 7 x 2.5"
- Quick belt change
- Motor: 1.5 HP 120V Single Phase
Burr King 2.5” x 60” Two Wheel 960-250 Fixed Speed 1.5 HP 120V Single Phase Belt Grinder 90100 is a Burr King product in the Grinding & Sanding collection.
Product Details
- Fixed Speed: 8000 SFPM
- Contact Wheel Size: 7 x 2.5"
- Quick belt change
- Motor: 1.5 HP 120V Single Phase
- Description
- Burr King's family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work positions. These machines are frequently selected as tool post grinders, roll grinders, and for fixturing into centerless grinding applications. Model 960-250 has a standard 60" belt up to 2.5" wide and can be bench or pedestal mounted (pedestal not included).
- Features
- Contact wheel, platen and work support grinding
- Adjustable belt tension
- Positive belt tracking
- Up to 8000 SFPM belt speed standard
- Compact footprint friendly to "cell" manufacturing
- Adapts for "tool post" or "on center" grinding
- Adapts for robot mounts
- Precision machined cast aluminum frame
- OSHA compliant, enclosed guarding
- Specifications
- Motor: 1.5 HP 120V Single Phase 60Hz
- Wheels: 2
- Throat Clearance: None
- Contact Wheel Hardness: 55 Duro
- Belt Tension Quick Change Assembly: Yes
- Positive Belt Tracking Adjustment: Yes
- Overall Height, Width, Depth: 30" x 21" x 30"
- Safety Belt Guard: Yes
- Base Area: 8.5" x 8"
- Steel Backup Platen: 2.5" x 8"
- Adjustable Work Rest: Yes
- Construction: Cast Aluminum
- Bench or Pedestal Mounted: Yes
- Pedestal Included: No
- Process Evaluation: Grinding
- Main Application: Belt Grinding
- Available Accessories
- Optional Pedestal Mounts
- Magnetic Starter
- Dust Scoop
Specifications
- Manufacturer: Burr King
- SKU: 90100
- Shipping Method: LTL Freight
- Weight: 110 lb
- Dimensions: 24 × 22 × 27.5 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 110.0 lbs |
|---|---|
| Dimensions | 24.0 × 22.0 × 27.5 in |
| Brand | Burr King |
