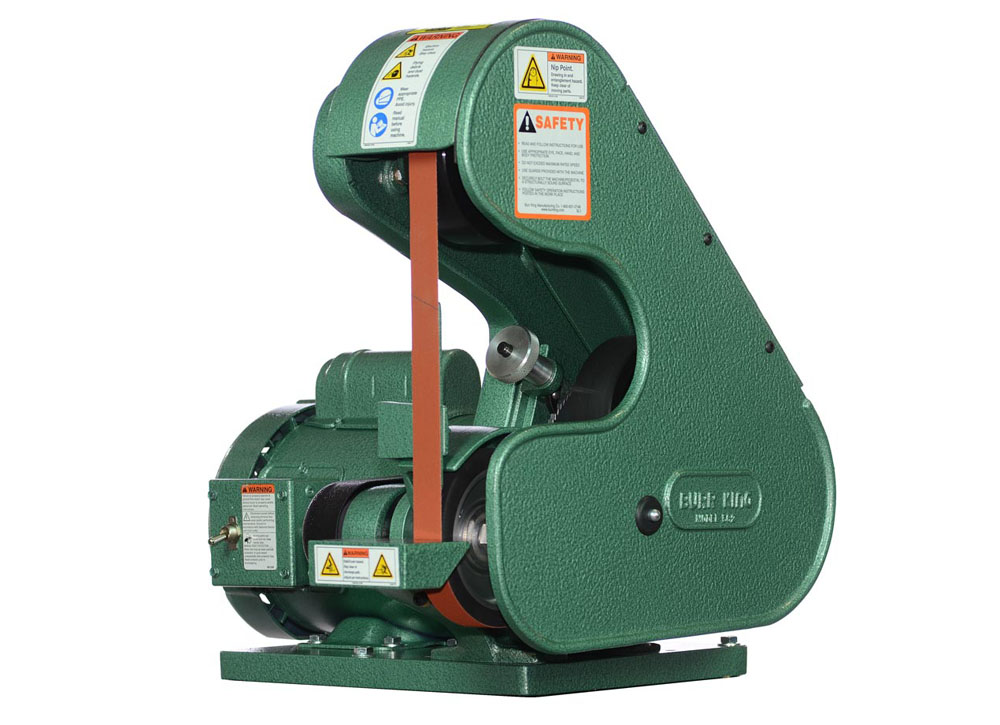

Burr King 1” x 42” Three Wheel Model 562 Variable Speed 3/4 HP 120V Single Phase Belt Grinder 57110
$2,281.50Current price is: $2,281.50.
- Variable Speed: 530-5300 SFPM
- Contact Wheel Size: 4-3/4” x 1"
- Throat Clearance: 5-1/2”
- Motor: 3/4 HP 120V Single Phase
Burr King 1” x 42” Three Wheel Model 562 Variable Speed 3/4 HP 120V Single Phase Belt Grinder 57110 is a Burr King product in the Grinding & Sanding collection.
Product Details
- Variable Speed: 530-5300 SFPM
- Contact Wheel Size: 4-3/4” x 1"
- Throat Clearance: 5-1/2”
- Motor: 3/4 HP 120V Single Phase
- Description

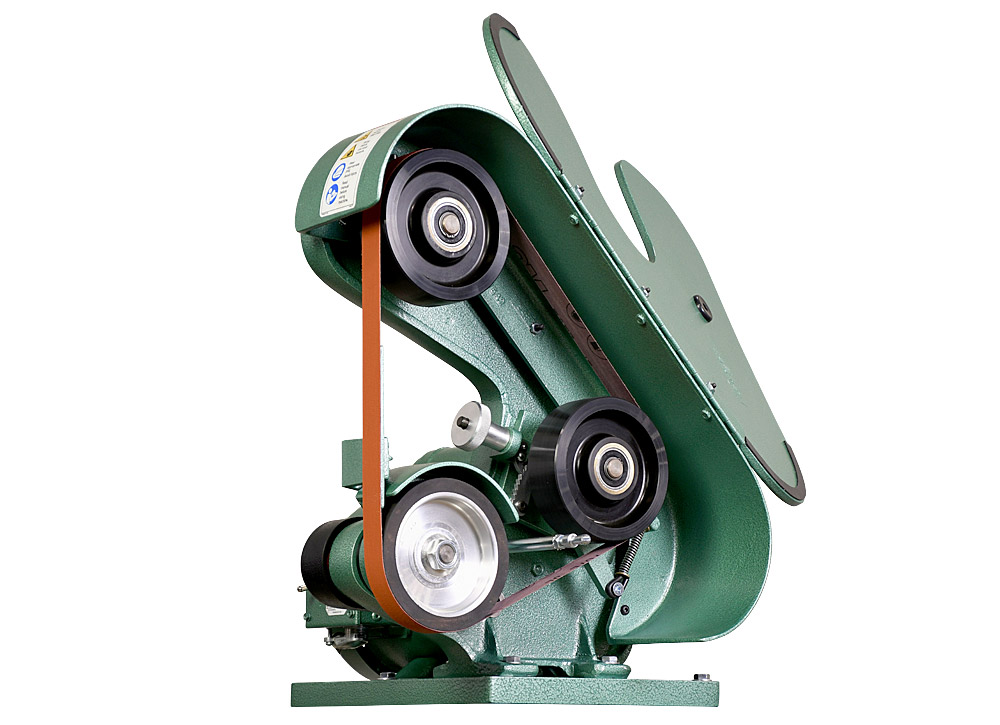

- Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension. Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability. Available in easily adjusted variable speed and aggressive single speed. Model 562 has a standard 42" belt up to 1" wide and can be bench or pedestal mounted (pedestal not included).
- Features
- Contact wheel, platen and work support grinding
- Slack belt grinding
- Adjustable belt tension
- Positive belt tracking
- Quick belt change
- Large throat clearance for enhanced work point access
- Precision machined cast aluminum frame
- Accepts internal grinding attachments

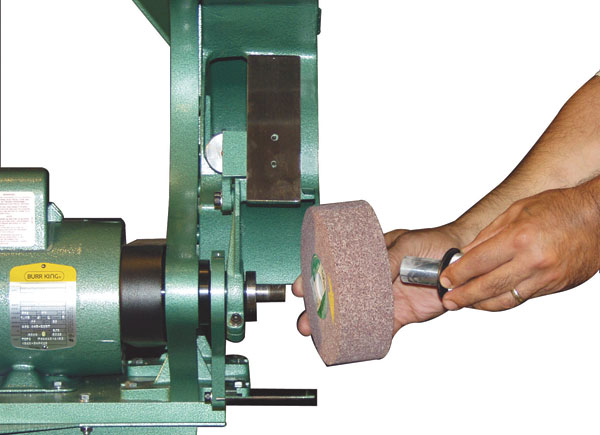

- Accepts nylon, buffing, wire, fiber wheels (Must remove wheel guard to fit 6" diameter wheels)
- Compact footprint friendly to "cell" manufacturing
- OSHA compliant, enclosed guarding.
- Specifications
- Motor: 3/4 HP 120V Single Phase 50-60Hz
- Wheels: 3
- Contact Wheel Hardness: 55 Duro
- Belt Tension Quick Change Assembly: Yes
- Positive Belt Tracking Adjustment: Yes
- Overall Height, Width, Depth: 20" x 17" x 15"
- Safety Belt Guard: Yes
- Base Area: 10" x 13"
- Steel Backup Platen: 1-1/8" x 5" x ¼”
- Adjustable Work Rest: Yes
- Construction: Cast Aluminum
- Bench or Pedestal Mounted: Yes
- Pedestal Included: No
- Main Application: Belt Grinding
- Available Accessories
- Optional Pedestal Mounts
- Dust Scoop
Specifications
- Manufacturer: Burr King
- SKU: 57110
- Shipping Method: LTL Freight
- Weight: 85 lb
- Dimensions: 24 × 22 × 27.5 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 85.0 lbs |
|---|---|
| Dimensions | 24.0 × 22.0 × 27.5 in |
| Brand | Burr King |
