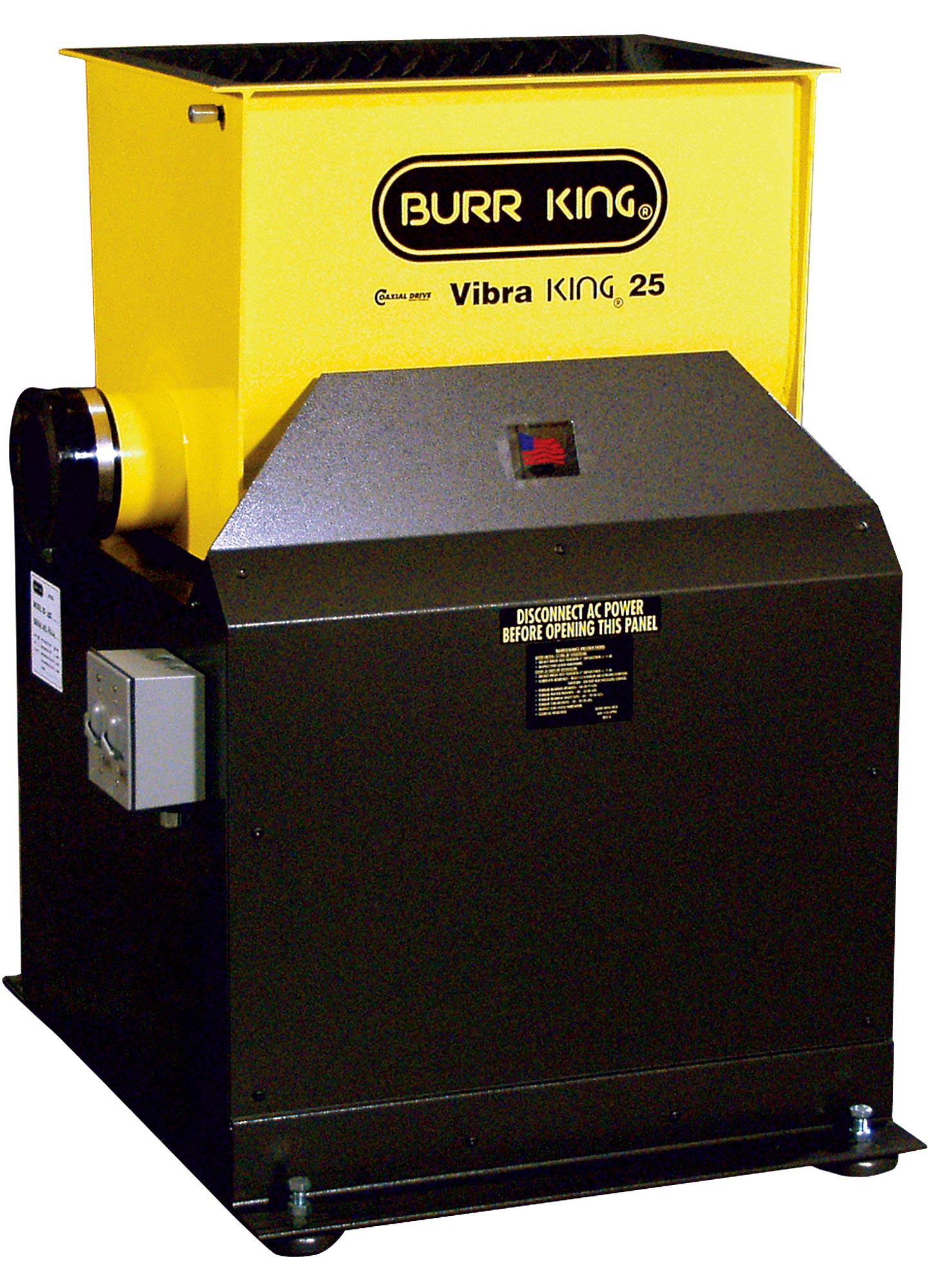

Burr King Model 25 Vibra King 120V Single Phase 2.5 Cubic Foot Vibratory Chamber 25100
$5,003.70Current price is: $5,003.70.
- 2.5 Cubic Feet Capacity
- Motor: 1-1/2 HP 120V Single Phase
- Max Length Part: 19”
- Quiet performance
Burr King Model 25 Vibra King 120V Single Phase 2.5 Cubic Foot Vibratory Chamber 25100 is a Burr King product in the Grinding & Sanding collection.
Product Details
- 2.5 Cubic Feet Capacity
- Motor: 1-1/2 HP 120V Single Phase
- Max Length Part: 19”
- Quiet performance
- Description
- Burr King vibratory chambers deliver quiet, high-performance deburring, polishing, descaling and surface conditioning. Optional process timers may be added to the M25. These timers permit precise process timing control to manage critical finishes and economize valuable shop time.
- Features
- Operate Wet or Dry
- Portable design
- Integrated, metered compound delivery system
- Flow-through design
- Replaceable drain
- Fully adjustable amplitude
- Bronze caged, sealed long life bearings
- Rugged welded steel construction
- Integrated discharge chute
- Specifications
- Total Volume: 2.5 Cubic feet
- Working Volume: 2.1 Cubic feet
- Motor: 1-1/2 HP 120V Single Phase 60Hz
- Tub Depth: 15”
- Tub Length: 20”
- Tube Width: 16”
- Media Capacity: 150 lbs
- Part Capacity: 100 lbs

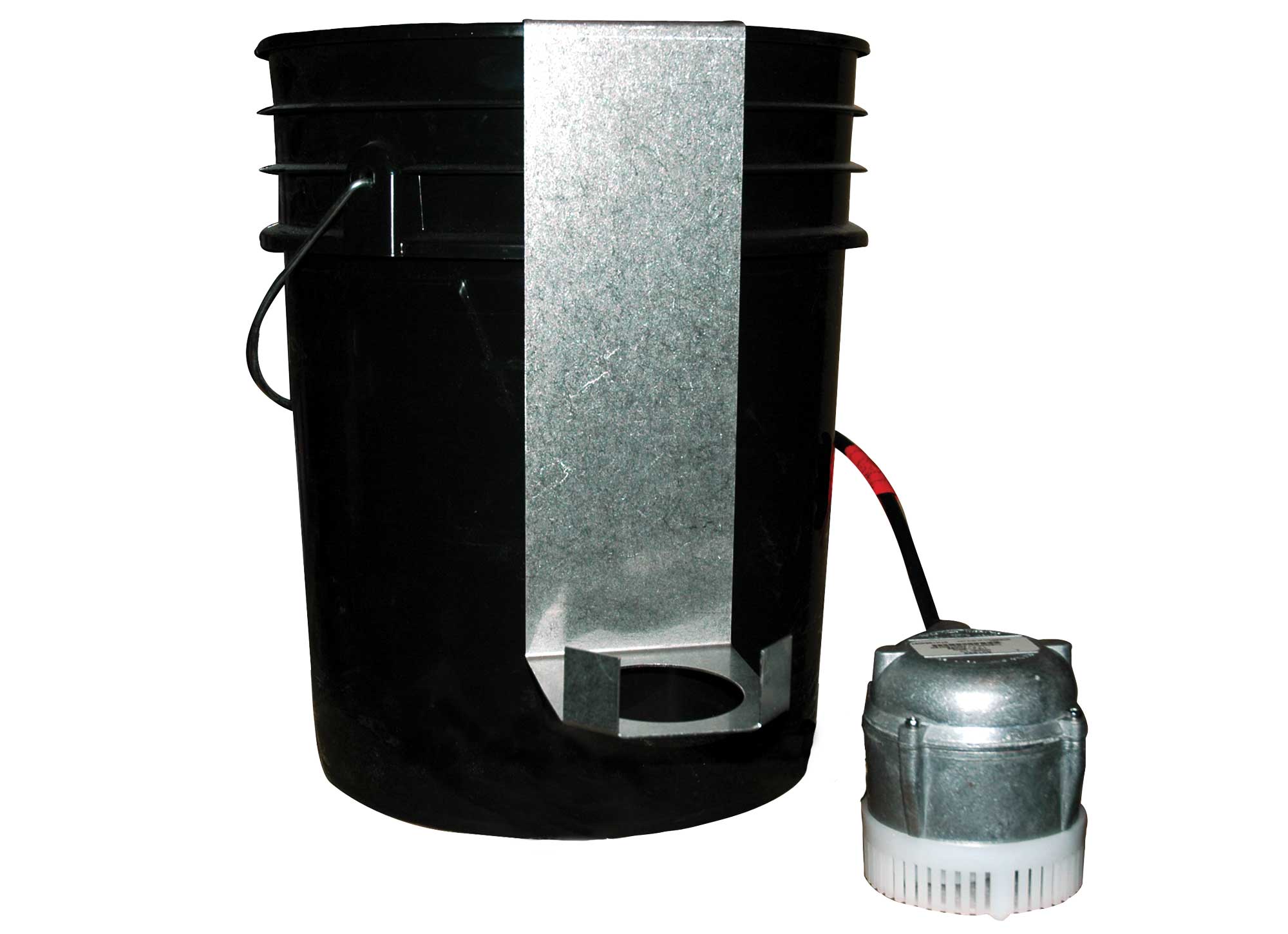

- 1000 SumpPak & Pump Included: Yes
- Wet or Dry Operation: Yes
- Flow Thru Drain: Yes
- Process Timer: No
- Overall Length: 29”
- Overal Width: 33”
- Overall Height: 41”
- Available Accessories
- Vibra Hush Lid
- Deflector and Dividers
Specifications
- Manufacturer: Burr King
- SKU: 25100
- Shipping Method: LTL Freight
- Weight: 480 lb
- Dimensions: 36 × 60 × 50 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 480.0 lbs |
|---|---|
| Dimensions | 36.0 × 60.0 × 50.0 in |
| Brand | Burr King |
