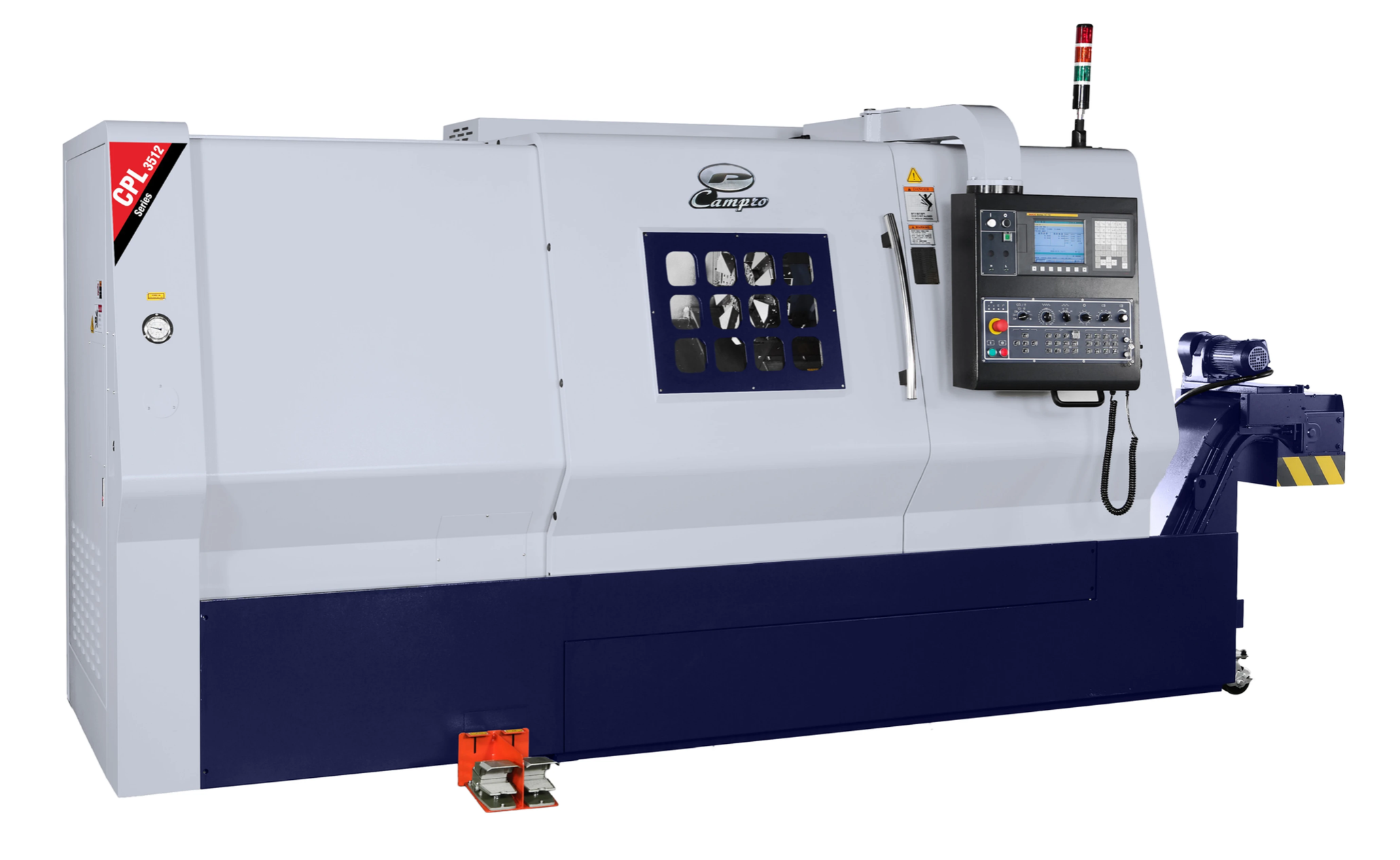

Campro USA Three Phase Two Axis CNC Lathe Turning Center with 12” Chuck CPL-3512
$81,770.00Current price is: $81,770.00.
- Swing Over Bed: 27.5”
- Swing Over Cross Slide: 19.6”
- Maximum Turning Diameter: 19.6”
- Maximum Turning Length: 39.4”
Campro USA Three Phase Two Axis CNC Lathe Turning Center with 12” Chuck CPL-3512 is a Campro USA product in the Lathes collection.
Product Details
- Swing Over Bed: 27.5”
- Swing Over Cross Slide: 19.6”
- Maximum Turning Diameter: 19.6”
- Maximum Turning Length: 39.4”
- Description
- The CPL series is Campro's highly flexible and profitable CNC Turning Center. High performance linear motion guideways, One Piece, 45 Degree cast iron inclined bed to ensure quick chip evacuation. Campro USA’s CPL series CNC Turning Center is based on a high quality one piece cast iron bed for superior rigidity and anti-vibration characteristics. 45 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production Management System) represents the first step in smart manufacturing.
- Features
- 3-Jaw Power 12” Hydraulic Chuck
- Hard Jaw: 1 Set
- Soft Jaw: 3 Set
- Hydraulic Unit
- Manual Tailstock
- Chain Type Chip Conveyor with Bucket
- Coolant System
- Coolant Pump
- Pretensioned Ballscrews on 2 Axes
- Hand Wheel (MPG)
- Heat Exchanger
- Oil Skimmer
- 3-Color Signal Light
- Working Lamp
- Tool box
- Fanuc operator and maintenance manuals
- Instruction Manuel, Parts List, and Electrical Diagram
- WARRANTY-Machine: One Year, Parts
- WARRANTY-Control: Two Years, Parts & Labor
- Specifications
- Working Area Swing Over Bed: 27.5” Swing Over Cross Slide: 19.6” Maximum Turning Diameter: 19.6” Maximum Turning Length: 39.4”
- Travel X Axis Travel: 9.8” + 0.9” Z Axis Travel: 39.4” Rapid Traverse: 945 IPM
- X Axis Travel: 9.8” + 0.9”
- Z Axis Travel: 39.4”
- Rapid Traverse: 945 IPM
- Spindle Spindle Motor: 30 / 35 HP Maximum Speed: 2,000 RPM Hydraulic Chuck: 12” Spindle Nose: A2-11 Hole Through Draw Tube: 4.6”
- Spindle Motor: 30 / 35 HP
- Maximum Speed: 2,000 RPM
- Hydraulic Chuck: 12”
- Spindle Nose: A2-11
- Hole Through Draw Tube: 4.6”
- Turret O.D. / I.D.: 1.0” / 1.57” Turret Type: 10 Station
- O.D. / I.D.: 1.0” / 1.57”
- Turret Type: 10 Station
- Tailstock Quill Diameter: 4.3” Quill Travel: 7.8” Quill Taper: MT – #5
- Quill Diameter: 4.3”
- Quill Travel: 7.8”
- Quill Taper: MT – #5
- General Floor Space Required (W x D): 179” x 83” Machine Weight: 14,330 lbs. Standard Power Source: 205-235 Volts / 3 Phase / 60HZ Power Capacity Minimum: 74 Amps (30 KVA)
- Floor Space Required (W x D): 179” x 83”
- Machine Weight: 14,330 lbs.
- Standard Power Source: 205-235 Volts / 3 Phase / 60HZ
- Power Capacity Minimum: 74 Amps (30 KVA)
- Options
- Collet chuck
- Programmable Tailstock
- Special Purposed Chip Conveyor
- Oil Mist Collector
- Tool Setter
- Parts Catcher
- Automatic Bar Feeder
- Automatic Door
- Automatic Power Off
- Servo Turret
- VDI Turret
- Air Condition
- CE Modification
- Transformer
Specifications
- Manufacturer: Campro USA
- SKU: CPL-3512
- Shipping Method: Flatbed
- Weight: 14,430 lb
- Dimensions: 184 × 87 × 97 in
| Weight | 14430.0 lbs |
|---|---|
| Dimensions | 184.0 × 87.0 × 97.0 in |
| Brand | Campro USA |
