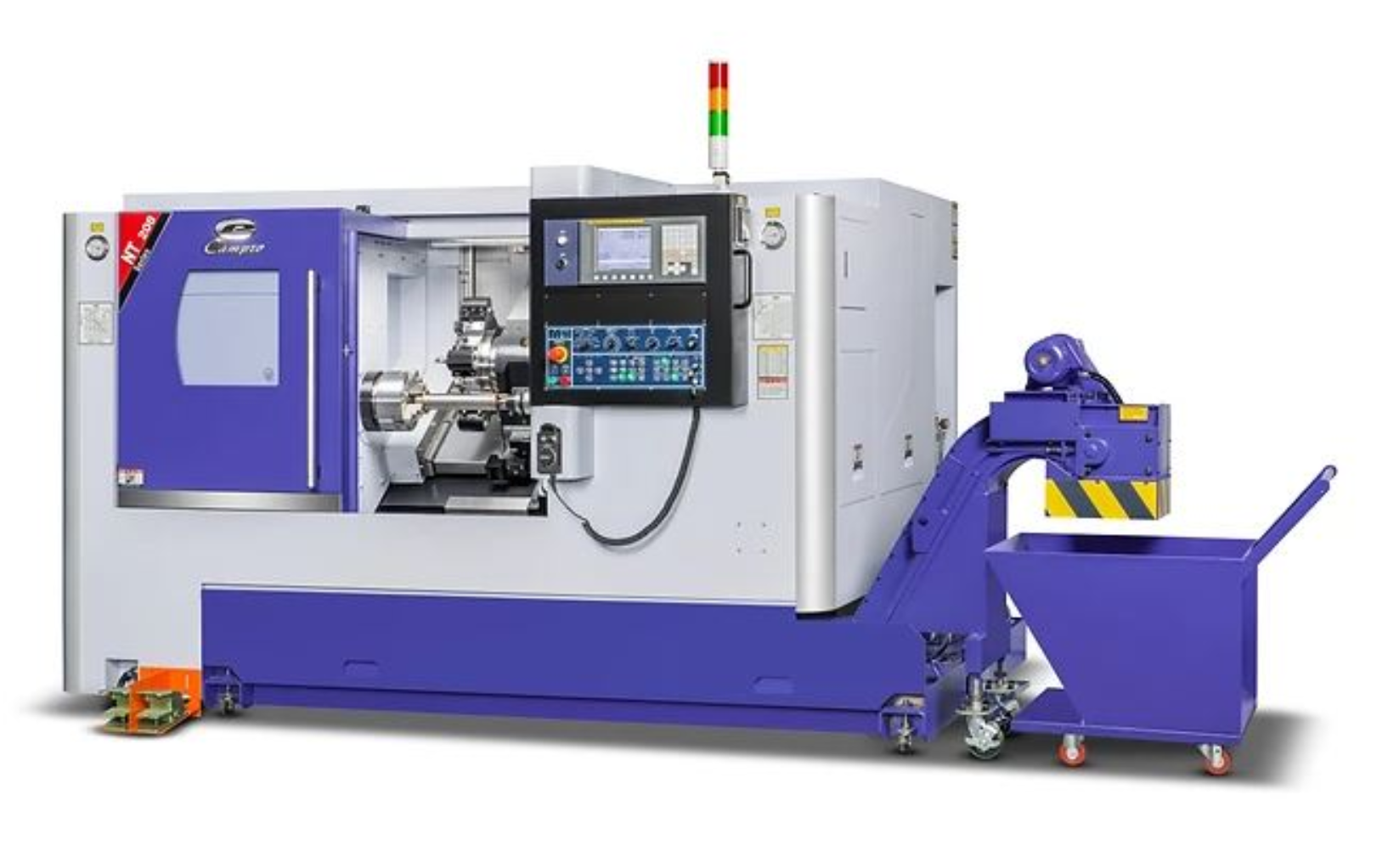

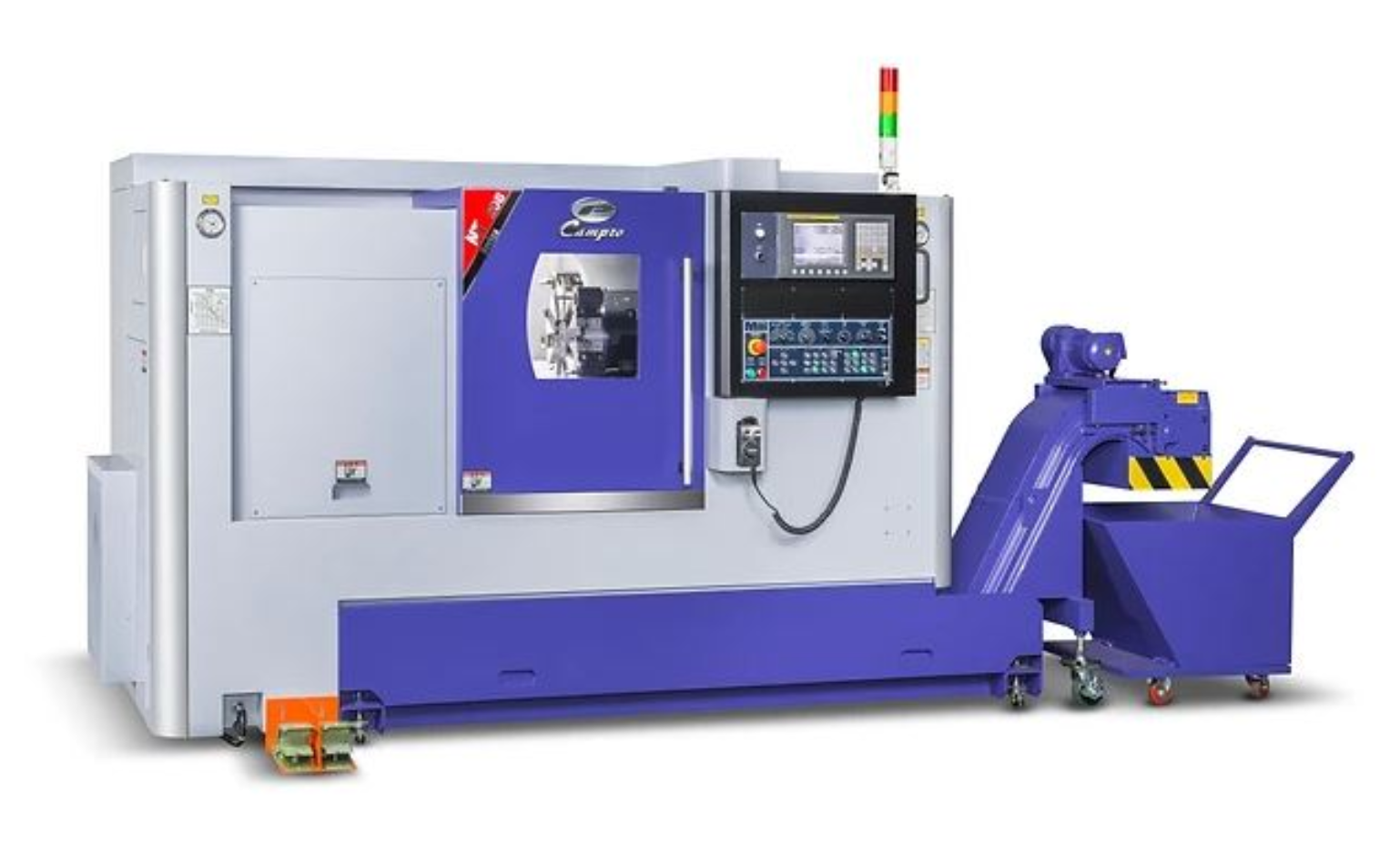

Campro USA Three Phase Two Axis CNC Lathe Turning Center with 8” Chuck NT-208

Campro USA Three Phase Two Axis CNC Lathe Turning Center with 8” Chuck NT-208 is a Campro USA product in the Lathes collection.

Product Details

• Swing over bed: 22.84”
• Swing over cross slides: 15.35”
• Maximum turning diameter: 16.54”
• Maximum turning length: 21.65”
• Description
• The NT-208 is Campro's highly flexible and profitable CNC Turning Center
• High performance heavy duty box guideways, 30 Degree cast iron inclined bed to ensure quick chip evacuation.
• Campro USA’s NT-208 series CNC Turning Center is based on a high quality cast iron bed for superior rigidity and anti-vibration characteristics.
• 30 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production Management System) represents the first step in smart manufacturing.
• Features
• 3-jaw, 8” hydraulic chuck
• Manual tailstock
• Chain type chip conveyor with bucket
• Coolant system
• Oil skimmer
• Tool box
• Instruction manual, parts list, and electrical diagram
• Fanuc operator and maintenance manuals
• WARRANTY-Machine: One Year, Parts
• WARRANTY-Control: Two Years, Parts & Labor
• Specifications
• Working Area Swing over bed: 22.84" (580 mm) Swing over cross slides: 15.35” (390 mm) Maximum turning diameter: 16.54” (420 mm) Maximum turning length: 21.65” (550 mm)
• Swing over bed: 22.84" (580 mm)
• Swing over cross slides: 15.35” (390 mm)
• Maximum turning diameter: 16.54” (420 mm)
• Maximum turning length: 21.65” (550 mm)
• Travel X Axis Travel: 8.27” + 0.79” (210 + 20 mm) Z Axis Travel: 22.44” (570 mm) Rapid Traverse: 787 / 945 IPM (20 / 24 m/min)
• X Axis Travel: 8.27” + 0.79” (210 + 20 mm)
• Z Axis Travel: 22.44” (570 mm)
• Rapid Traverse: 787 / 945 IPM (20 / 24 m/min)
• Spindle Spindle Motor: 15 / 20 HP (11 / 15 KW) Maximum Speed: 4,200 RPM Hydraulic Chuck: 8” Spindle Nose: A2-6 Hole Through Draw Tube: 2.598” (66 mm)
• Spindle Motor: 15 / 20 HP (11 / 15 KW)
• Maximum Speed: 4,200 RPM
• Hydraulic Chuck: 8”
• Spindle Nose: A2-6
• Hole Through Draw Tube: 2.598” (66 mm)
• Turret O.D. / I.D.: Inch Turret 1.0” / 1.5” Turret Type: 12 – Servo driven
• O.D. / I.D.: Inch Turret 1.0” / 1.5”
• Turret Type: 12 – Servo driven
• Tailstock Quill Diameter: 3.15” (80 mm) Tailstock Travel: 18.1” (460 mm) Quill Travel: 4.72” (120 mm) Quill Taper: MT – #4
• Quill Diameter: 3.15” (80 mm)
• Tailstock Travel: 18.1” (460 mm)
• Quill Travel: 4.72” (120 mm)
• Quill Taper: MT – #4
• General Floor Space Required (W x D): 151.14” X 76.77” (3,839 X 1,950 mm) Height: 70.28” (1,785 mm) Machine Weight: 9,150 LBS. (4,150 kg) Standard Power Source: 205-235 Volts / 3 Phase / 60HZ Power Capacity Minimum: 57 Amps (20 KVA)
• Floor Space Required (W x D): 151.14” X 76.77” (3,839 X 1,950 mm)
• Height: 70.28” (1,785 mm)
• Machine Weight: 9,150 LBS. (4,150 kg)
• Standard Power Source: 205-235 Volts / 3 Phase / 60HZ
• Power Capacity Minimum: 57 Amps (20 KVA)
• Options
• Hydraulic Clamping Manual Tailstock
• Programmable Tailstock
• Special Purposed Chip Conveyor
• Air Condition
• Collet Chuck
• Oil mist Collector
• Tool Setter
• Parts Catcher
• Automatic Bar Feeder Interface
• Automatic Door
• Automatic Power Off
• 12-Station Hydraulic Turret
• Servo Turret
• Coolant Gun
• Air Gun
• CE Modification
• Transformer

Specifications

• Manufacturer: Campro USA
• SKU: NT-208
• Shipping Method: Flatbed
• Weight: 9,250 lb
• Dimensions: 156 × 82 × 75 in
