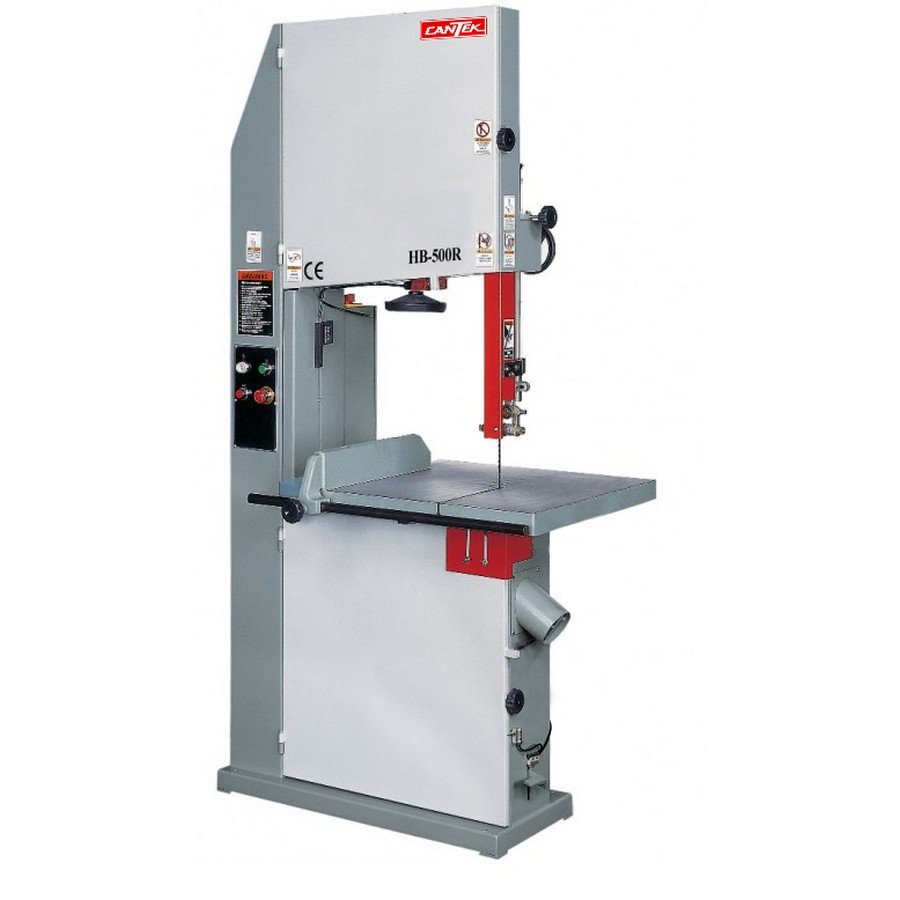

Cantek HB500R3 20″ Band Saw 3HP Three-Phase
$2,940.00Current price is: $2,940.00.
- 20"Band Saw Size & Wheel Diameter (in)
- 156-1/4" ~ 157-1/2"Blade Length (in)
- 4450 FPMBlade Speed
- 4450 FPMBlade Speed (SFPM)
9 in stock
Overview
Cantek HB500R3 20" Band Saw 3HP Three-Phase is documented as a Bandsaw from Cantek America. The exact CANHB500R-230-3 configuration is mapped to GT Machinery Solutions SKU CANHB500R3. Recorded technical data includes horsepower: 3HP, motor power (hp): 3HP, and prewired voltage (v.): 230/3/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- · Heavy gauge steel frame ensures stable and vibration free cutting

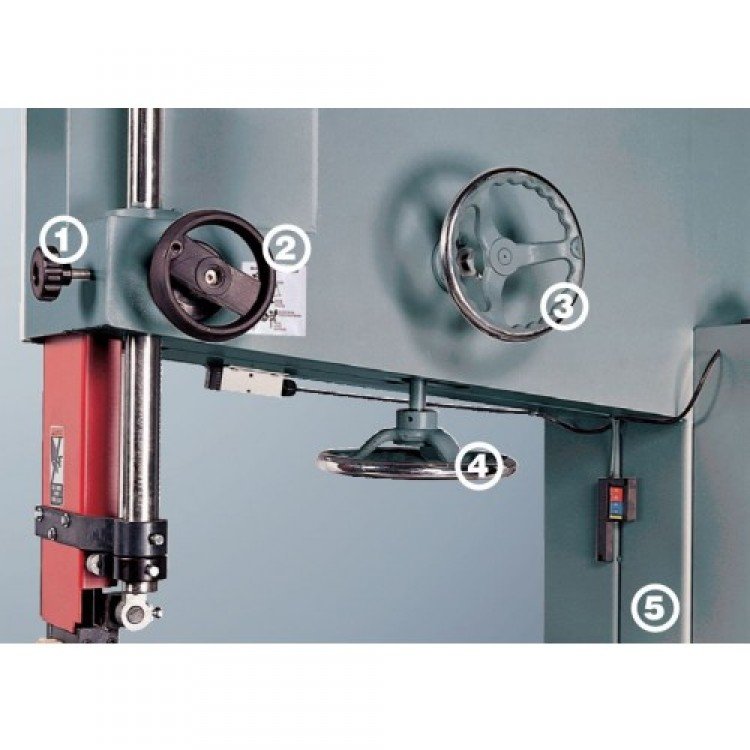

- · Rack & pinion guide adjustment
- · Saw wheels are laminated with rubber for accurate blade tracking
- · Table is made of cast iron and surface is precision ground.

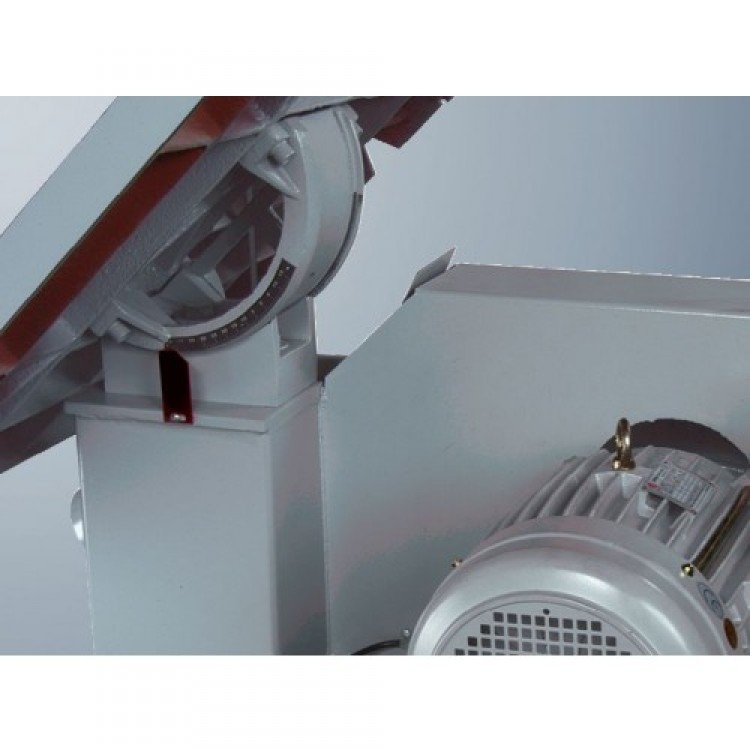

- · Table tilts to 45° for bevel cuts
- · Convenient blade tension adjustment by a handwheel
- · Cast iron top & bottom wheels are precision machined and dynamically balanced
- · Foot brake
- · Ball bearing upper and lower guides

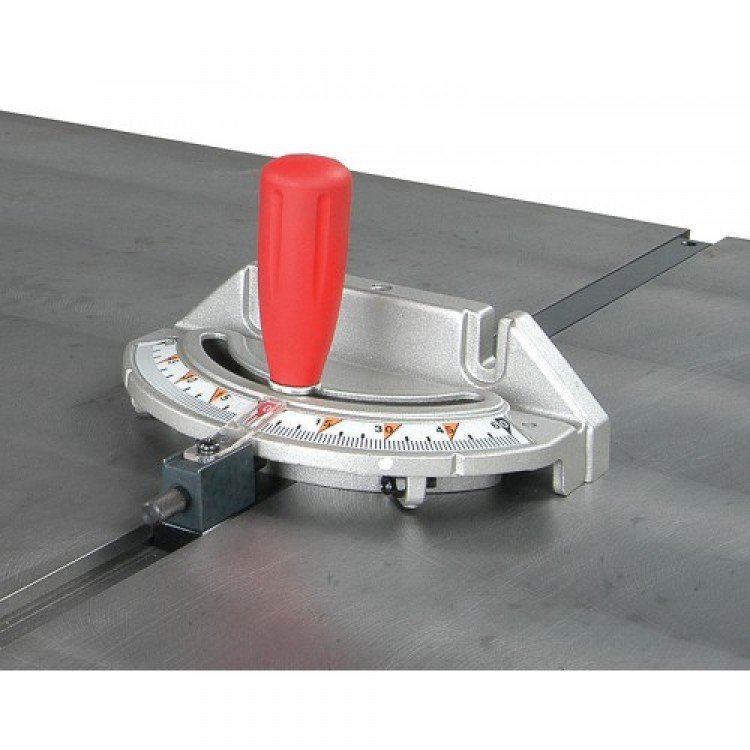

- · Standard equipment includes: Rip Fence, & Mitre Gauge
Technical Specifications
| Band Saw Size & Wheel Diameter (in) | 20" |
|---|---|
| Blade Length (in) | 156-1/4" ~ 157-1/2" |
| Blade Speed | 4450 FPM |
| Blade Speed (SFPM) | 4450 FPM |
| Blade Width (in) | 1/4" ~ 1-1/4" |
| Cutting Capacity Height (In.) | 11-7/8" |
| Dust Port Outside Diameter (in) | 4" |
| Height | 74" |
| Horsepower | 3HP |
| Length | 38-13/64" |
| Maximum Tilt | 45° |
| Motor Current (Amps) | 9.6 |
| Motor Phase | Three Phase |
| Motor Power (HP) | 3HP |
| Prewired Voltage (V.) | 230/3/60 |
| Product Type | Bandsaw |
| Table Size | 26-3/4" x 20-1/2" |
| Table Size (L x W) (In.) | 26-3/4" X 20-1/2" |
| Table Tilt (Deg.) | 0 – 45 Degrees |
| Weight | 770.000 lbs |
| Width | 27-1/2" |
Available Documents
| Weight | 770 lbs |
|---|---|
| Dimensions | 38.205 × 27.5 × 74 in |
| Brand | Cantek America |
