Cantek JDT65 Manual Dovetail Machine Single Phase
$4,200.00Current price is: $4,200.00.
- 1", 1.5", 2", 2.5" standardCenter to Center Dovetail Spacing (In.)
- Front 2.5", Rear 4"Dust Port Outside Diameter (In.)
- 1 HPHorsepower
- .71"Maximum Dovetail Height (In.)
2 in stock
Overview
Cantek JDT65 Manual Dovetail Machine Single Phase is documented as a Manual Dovetail Machine from Cantek America. The exact CANJDT65-230-1 configuration is mapped to GT Machinery Solutions SKU CANJDT65. Recorded technical data includes horsepower: 1 HP, motor power (hp): 1HP, and motor voltage (v.): 230/1/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Ideal for drawer production and furniture parts which require high quality dovetail joints.
- Max. workpiece size 59" x 16 ½"
- Workpieces are clamped by air clamps.
- Enclosed-type stand.
- Equipped with an indication bar for indicating cutting position.
- Tenon width can be micro-metrically adjusted in 2 mm.
- Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece.
- Equipped with one four-sided template providing four types of pitches between dovetails.
- Standard pitch 1", 1 ½", 2" and 2 ½” (Other sizes available on request)

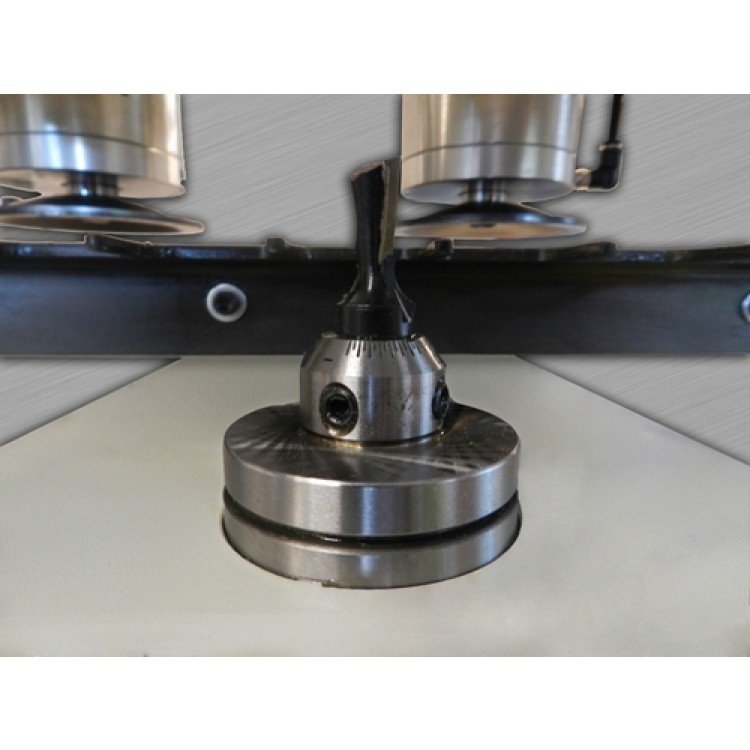

- The spindle accommodates 12 mm T.C.T. cutter bit.
Technical Specifications
| Center to Center Dovetail Spacing (In.) | 1", 1.5", 2", 2.5" standard |
|---|---|
| Dust Port Outside Diameter (In.) | Front 2.5", Rear 4" |
| Horsepower | 1 HP |
| Maximum Dovetail Height (In.) | .71" |
| Maximum Front Thickness (In.) | 2.36" |
| Maximum Side Thickness (In.) | .28" |
| Maximum Work Piece Size (In.) | 59" X 16.5" |
| Minimum Dovetail Height (In.) | .71" |
| Minimum Front Thickness (In.) | .28" |
| Minimum Side Thickness (In.) | .28" |
| Minimum Work Piece Size (L x W)(In.) | 7.9" X 2.4" |
| Motor Current (Amps) | 8 |
| Motor Phase | Single Phase |
| Motor Power (HP) | 1HP |
| Motor Voltage (V.) | 230/1/60 |
| Number of Dovetail Center Lines | 4 |
| Number of Spindles | 1 |
| Phase | 1 |
| Product Type | Manual Dovetail Machine |
| Spindle Speed (RPM) | 18500 RPM |
| Table Height From Floor (In.) | 46.5" |
| Weight | 539.000 lbs |
Available Documents
| Weight | 539 lbs |
|---|---|
| Brand | Cantek America |
