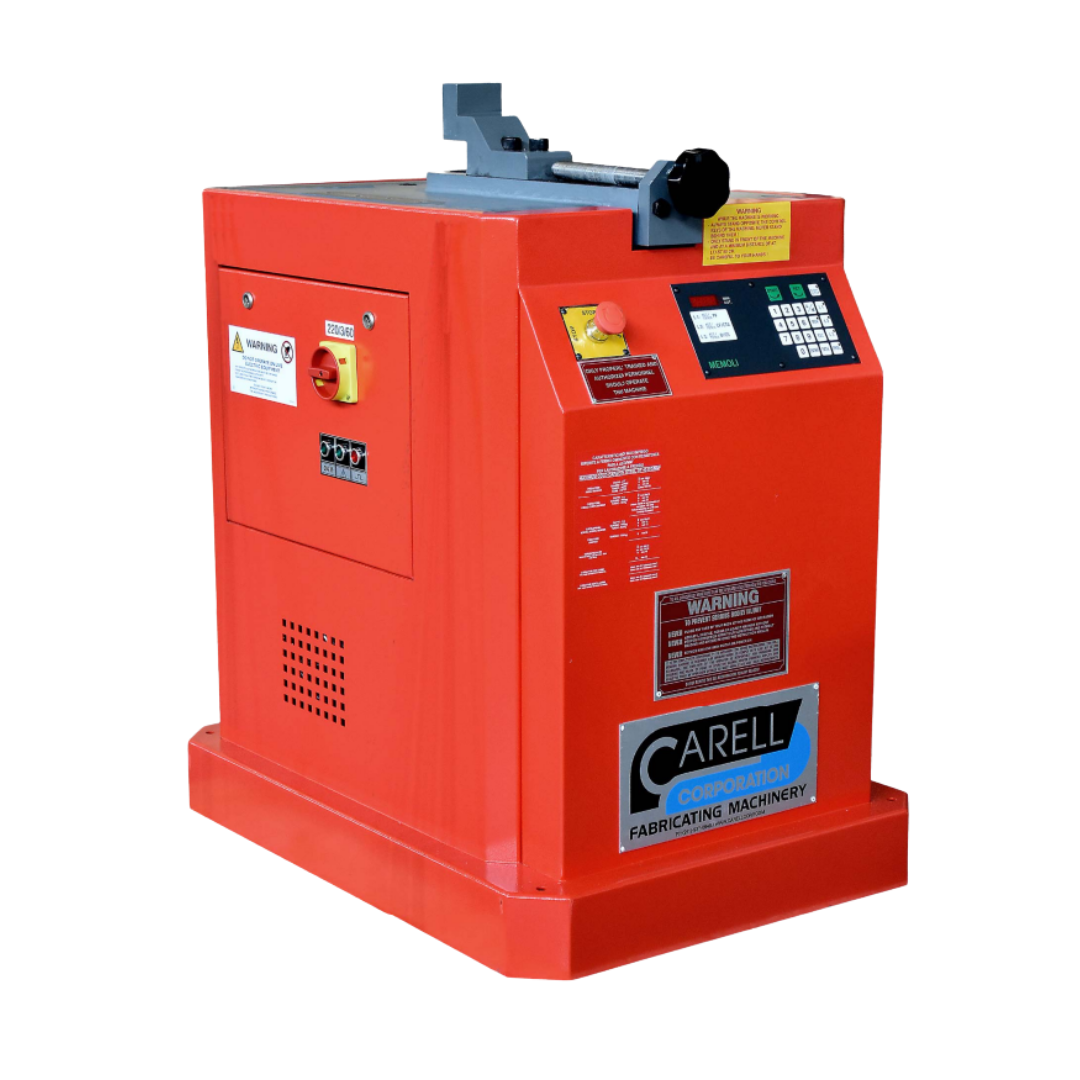

Carell Industrial E-Matic 230V Three Phase Programmable Universal Bending Folding & Forming Machine Ematic CE/CN
$7,499.50Current price is: $7,499.50.
- Bending speed: 4-30 second/180° (load dependent)
- Max bend angle: continuous to 9999°
- Rotation Speed: 7 rpm
- Working height: 36”
Carell Industrial E-Matic 230V Three Phase Programmable Universal Bending Folding & Forming Machine Ematic CE/CN is a Carell Industrial Solutions product in the Metal Forming & Shaping collection.
Product Details
- Bending speed: 4-30 second/180° (load dependent)
- Max bend angle: continuous to 9999°
- Rotation Speed: 7 rpm
- Working height: 36”
- Description
- E-Matic Super CE-CN is a multi-use bending/forming machine consisting of a base unit with gear driven central arbor and an adjustable clamping system to which can be mounted a wide variety of bar working, tube bending, scroll forming, profile rolling and bar twisting attachments. The unit uses a PLC control to set the bending angle with 9-program memory with 5 bends per program. Bends are input via push button membrane controls. High quality bends and folds and forms are produced swiftly and efficiently without using an internal mandrel. An electric motor and an oil bath speed reducer power the unit.
- Features
- Welded steel heavy duty base, lower, wider and stable for maximum versatility in tooling mounting and safety
- Adjustable bend angle preset by means of PLC push button control with memory
- MAN-AUT Function: auto function allows automatic bend & return with one command, programmable dwell time after bend/before return to allow part extraction
- Bends up to 180 degree bends in one operation, 360 and continuous in step mode
- Quick change tooling that can be carried out in a few seconds
- Wide range of bending radii: from ½” to 15” as tooling types permit
- Controls: push button type & key pad mounted on easy to use inclined panel, 24V
- Safety equipment: emergency stop palm button and degree limit input per tool type
- Extra capacity: 4.4 HP self braking TEFC electric motor
- Accessories: brake forming, scrolling, twisting, compression bending, section bending
- Specifications
- Bend tolerance: +/- 0.5°
- Memory: 45 steps
- Control voltage: 24 VAC
- Motor Power: 4.4 HP Self-Braking TEFC
- Electrical Requirements: 230V Three Phase 60Hz
- Machine Dims: 34” x 25” x 48”
- Approx Weight: 500 lbs
- Optional Add-Ons
- 230V Single Phase available (please contact a sales rep for more info)
- Foot pedal allows remote bend activation
- Pneumatic or hydraulic operation
- Super Scroll: 20” diameter x 5/8” bar
- PF Option: bar brake/folding tooling
- D Option: bar twisting tooling
- CT Option: tube bending tooling
- CS/3 Option: scroll tooling w/3 formers
- CF Option: curve/radius tooling
Specifications
- Manufacturer: Carell Industrial Solutions
- SKU: Ematic CE/CN
- Shipping Method: LTL Freight
- Weight: 500 lb
- Dimensions: 36 × 33 × 56 in
| Weight | 500.0 lbs |
|---|---|
| Dimensions | 36.0 × 33.0 × 56.0 in |
| Brand | Carell Industrial Solutions |
