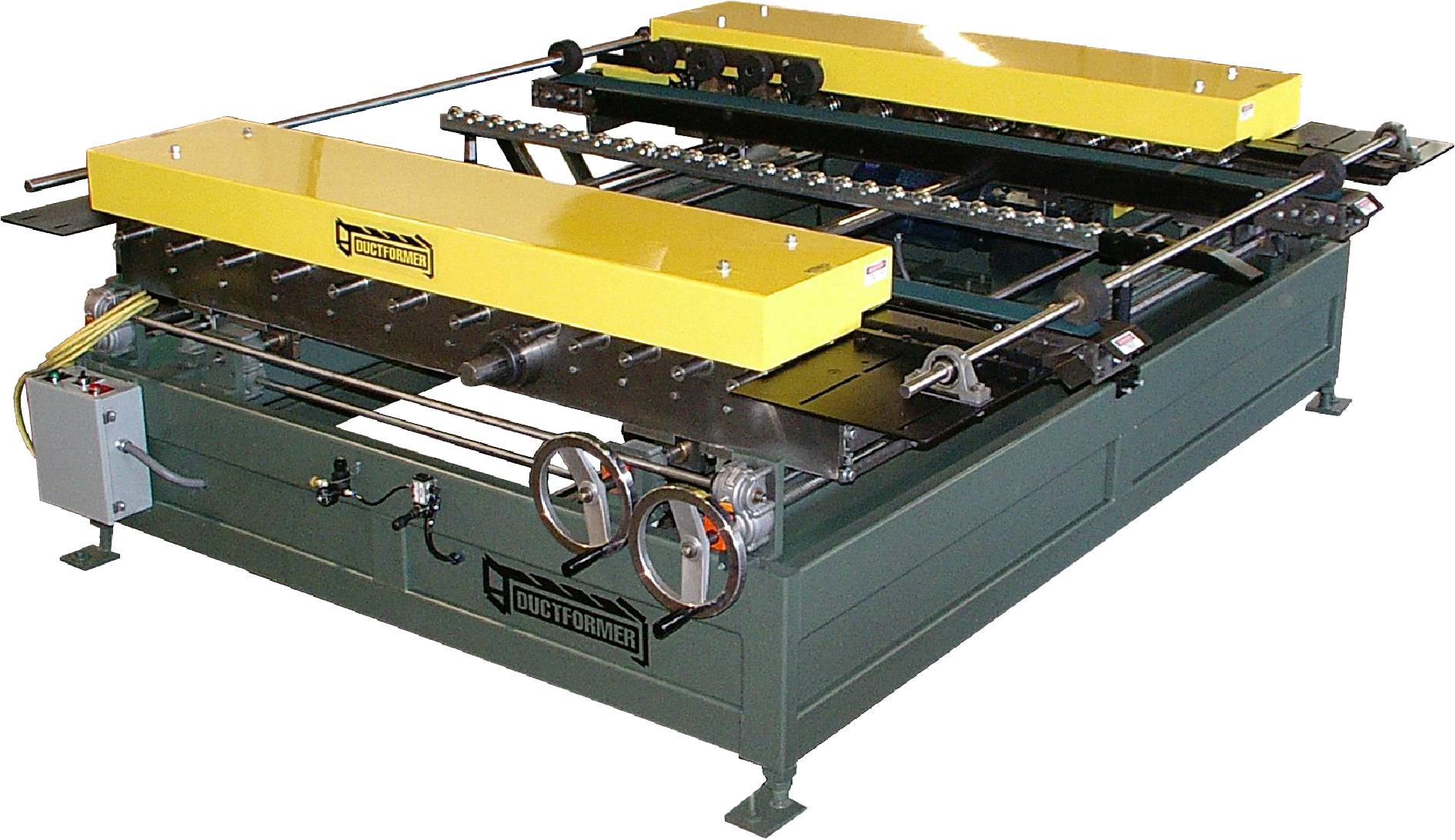

Ductformer 10HP 230V Three Phase C-Style Dual Head TDFC Rollformer CR12-TDFC-DH
$62,725.00Current price is: $62,725.00.
- Motor: 10HP 230V Three Phase
- Line Speed: 60 FPM
- Gauge Capacity: 18-26 Ga
- Passline Height: 36”
Ductformer 10HP 230V Three Phase C-Style Dual Head TDFC Rollformer CR12-TDFC-DH is a Ductformer product in the Metal Forming & Shaping collection.
Product Details
- Motor: 10HP 230V Three Phase
- Line Speed: 60 FPM
- Gauge Capacity: 18-26 Ga
- Passline Height: 36”
- Description
- Ductformer’s Dual Head CR12 TDFC Rollformer is designed for installation in existing Duct Coil Lines or can be used as a Free Standing Unit. The rollformer is designed to accept and form the C-Style flange down both edges of the 18-26 gauge blank.
- The TDFC Flange application has proven to be the most cost-effective method to construct and install commercial rectangular ductwork. The Ductformer TDFC Rollformer features an all gear drive, oil bath reducer, heavy duty spindles and quality Anti-friction Sealed Roller Bearing to provide years of maintenance free service. For this reason, you will discover how quiet and smooth the Ductformer performs. The quality of craftsmanship and superior design puts Ductformer years ahead of their competition. Ductformer’s robust yet simplistic design makes the TDFC Rollformer the work horse of any shop for many years to come.
- Features
- 12 Forming Stations
- All Welded Frame Construction
- All Gear Drive
- Self-Adjusting Full Gauge Range
- Oil Bath Gear Reducer
- Heavy Duty Spindle Shafts
- Anti-Friction Roller Bearings
- Universal Left/Right Hand Design
- Specifications
- Width Variable: 36” to 60”
- Gauge Range: 18-26 Ga
- Dimensions: 105”L x 119”W x 48”H
- Weight: 4,300 lbs
Specifications
- Manufacturer: Ductformer
- SKU: CR12-TDFC-DH (230V)
- Shipping Method: Flatbed
- Weight: 4,300 lb
- Dimensions: 105 × 119 × 48 in
- Country of Origin: United States of America
| Weight | 4300.0 lbs |
|---|---|
| Dimensions | 105.0 × 119.0 × 48.0 in |
| Brand | Ductformer |
