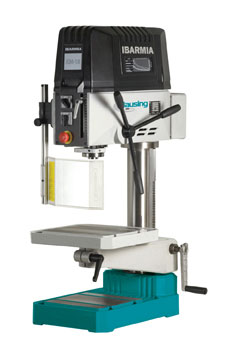

Clausing Erlo Belt-Drive 230V Three Phase 19.7” 10-Speed Step-Pulley Round-Column Floor Drill Press KL18
$8,092.50Current price is: $8,092.50.
- Spindle taper: 3MT
- Quill diameter: 2.44”
- Spindle travel (drilling depth): 4.72”
- Spindle Speeds (10, step pulley): 294/426/588/852/1002/1488/2004/2400/2976/4800 rpm
Clausing Erlo Belt-Drive 230V Three Phase 19.7” 10-Speed Step-Pulley Round-Column Floor Drill Press KL18 is a Clausing Industrial product in the Drill Presses collection.
Product Details
- Spindle taper: 3MT
- Quill diameter: 2.44”
- Spindle travel (drilling depth): 4.72”
- Spindle Speeds (10, step pulley): 294/426/588/852/1002/1488/2004/2400/2976/4800 rpm
- Features
- Depth scale and adjustable depth stop
- Thermomagnetic switch
- Spindle reversing switch
- Automatic tool ejector
- Emergency STOP
- High/low speed range selector
- Drill guard with micro switch
- Capacities
- Drilling Steel: 0.71” Cast iron: 1”
- Steel: 0.71”
- Cast iron: 1”
- Tapping Steel: 0.55” Cast iron: 0.71”
- Steel: 0.55”
- Cast iron: 0.71”
- Specifications
- Base to spindle: 47.6”
- Spindle center to column: 9.84”
- Spindle to table (min/max): 4.13” / 25.2”
- Worktable dims: 10.6” x 11.8”
- Column diameter: 3.94”
- Electrical Requirements: 230V Three Phase 0.6HP
- Machine Dims: 24” x 15” x 70”
- Approx Weight: 550 lbs
- Optional Add-Ons
- Other voltages available (please contact a sales rep for more info)
- Rotating table (MG-K)
- Front wheel for fine quill feed (VWH-K)
- Depth scale read-out system (LBC-K)
- Auto spindle reversing for tapping multi head (RS-K)
- Auto thread system by master spindle (RHP-K)
- Hydro-pneumatic power feed unit (HB-K)
- Coolant system in base (ERB-K)
- Cross table (MB-1)
- Oversized table (MB-44)
- Solid fixed base table (MB-55)
- 3/16” to ¾” drill chuck with key (1897)
- 3JT to 3MT arbor (1898)
- Emergency stop foot pedal (PPE)
- Cycle start foot pedal (PST)
Specifications
- Manufacturer: Clausing Industrial
- SKU: KL18
- Shipping Method: LTL Freight
- Weight: 693 lb
- Dimensions: 32 × 23 × 83 in
| Weight | 693.0 lbs |
|---|---|
| Dimensions | 32.0 × 23.0 × 83.0 in |
| Brand | Clausing Industrial |
