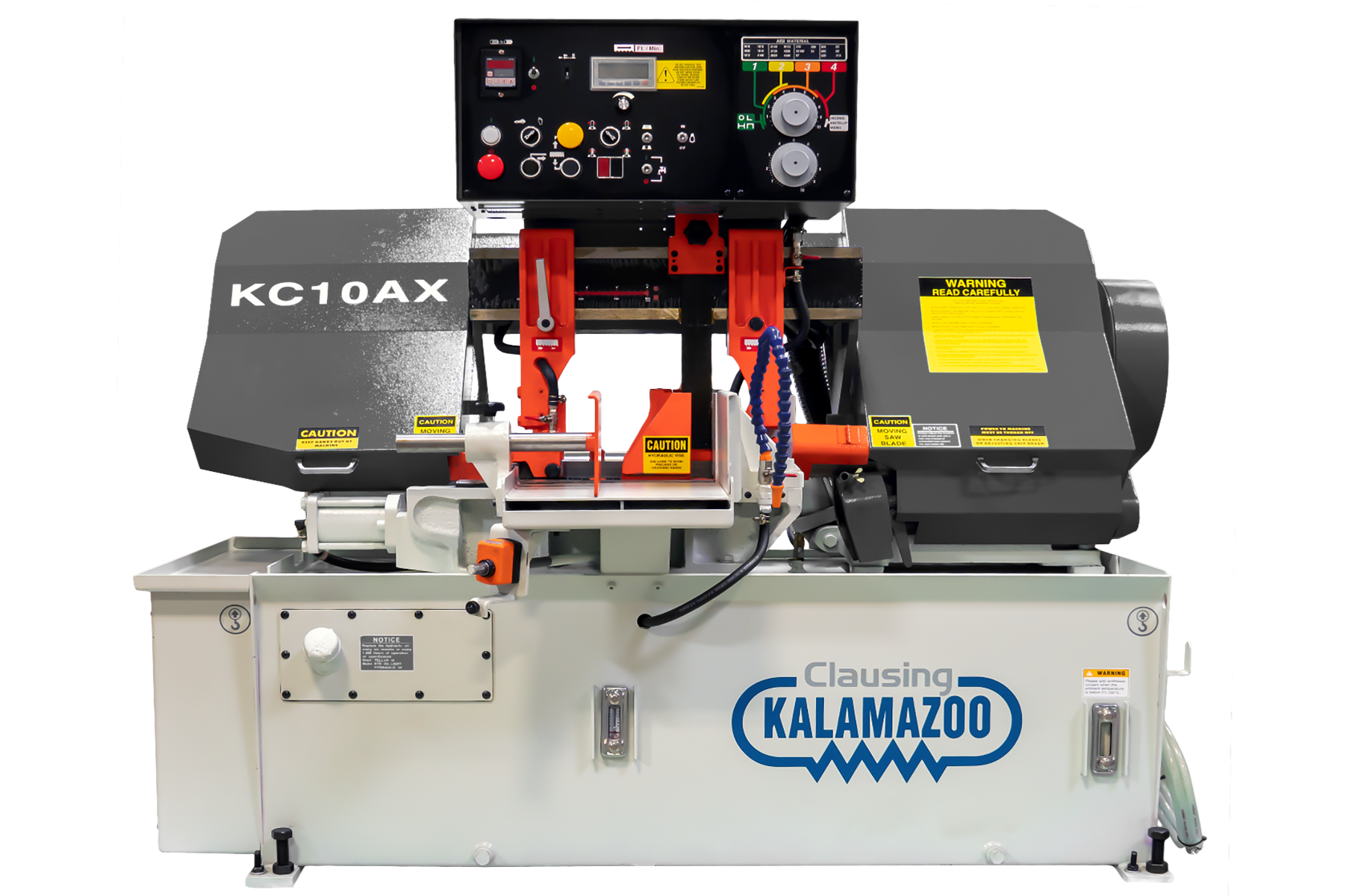

Clausing Kalamazoo 230V Three Phase 10”x11” Variable Speed Automatic Horizontal Bandsaw KC10AX
$14,897.50Current price is: $14,897.50.
- Band wheel diameter: 15.75”
- Blade size: 1¼” x 0.043” x 138”
- Blade speeds: 66-328 fpm (variable speed)
- Bed Height: 26”
Clausing Kalamazoo 230V Three Phase 10”x11” Variable Speed Automatic Horizontal Bandsaw KC10AX is a Clausing Industrial product in the Band Saws collection.
Product Details
- Band wheel diameter: 15.75”
- Blade size: 1¼” x 0.043” x 138”
- Blade speeds: 66-328 fpm (variable speed)
- Bed Height: 26”
- Description
- This Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in both semi-automatic and fully automatic operation.
- A powerful drive motor provides the power and the optional hydraulic bunding attachment makes multiple cuts easy. The hydraulic shuttle feed system offers up to nine indexes.
- Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as its reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
- Features
- Full or semi-automatic operation
- Infinitely variable blade speeds
- LED blade speed readout
- Vise clamps work piece both sides of blade
- Hydraulic down feed
- Automatic height setting feature
- Auto shutoff at end of material or after preset number of cuts
- Front-mounted digital length gauge
- Blade breakage/stoppage switch
- 110V control circuit
- Overload protection
- Recirculating coolant system
- Shuttle vise
- Hydraulic blade tension system
- (1) general purpose bi-metal blade
- Flushing hose for cleanup
- Tool kit
- Operator’s manual
- 90° Cutting Capacities
- Round: 10”
- Rectangular: 10” x 11”
- Specifications
- Feed accuracy: ± 0.004” to 0.008”
- Length of remnant material (manual): 0.59”
- Length of remnant material (automatic): 1.97”
- Min cut thickness: 0.354”
- Bundle cutting (requires purchase of optional hydraulic bundle cutting attachment) Width: 6.1” x 7.87” Height: 1.97” to 4.72”
- Width: 6.1” x 7.87”
- Height: 1.97” to 4.72”
- Feed length/index: 15.75”
- Max feed (9 times): 141.75”
- Coolant: Recirculating
- Coolant Capacity: 16.8 gallons
- Hydraulic oil capacity: 10.5 gallons
- Hydraulic pump motor: 1HP
- Electrical Requirements: 230V Three Phase 60Hz
- Machine Dims: 74” x 73” x 62”
- Approx Weight: 2,660 lbs
- Optional Add-Ons
- Other voltages available (please contact a sales rep for more info)
- Stock stand assembly (P10)
- Vise press regulator, auto models (VP10)
- Chip conveyor (CM1000)
- Hydraulic bundle clamp (CM1001)
- Roller table, various sizes
- SAWZIT 1 gallon coolant (CSR1)
- SAWZIT 5 gallon coolant (CSR5)
Specifications
- Manufacturer: Clausing Industrial
- SKU: KC10AX
- Shipping Method: LTL Freight
- Weight: 2,830 lb
- Dimensions: 80 × 80 × 65 in
| Weight | 2830.0 lbs |
|---|---|
| Dimensions | 80.0 × 80.0 × 65.0 in |
| Brand | Clausing Industrial |
