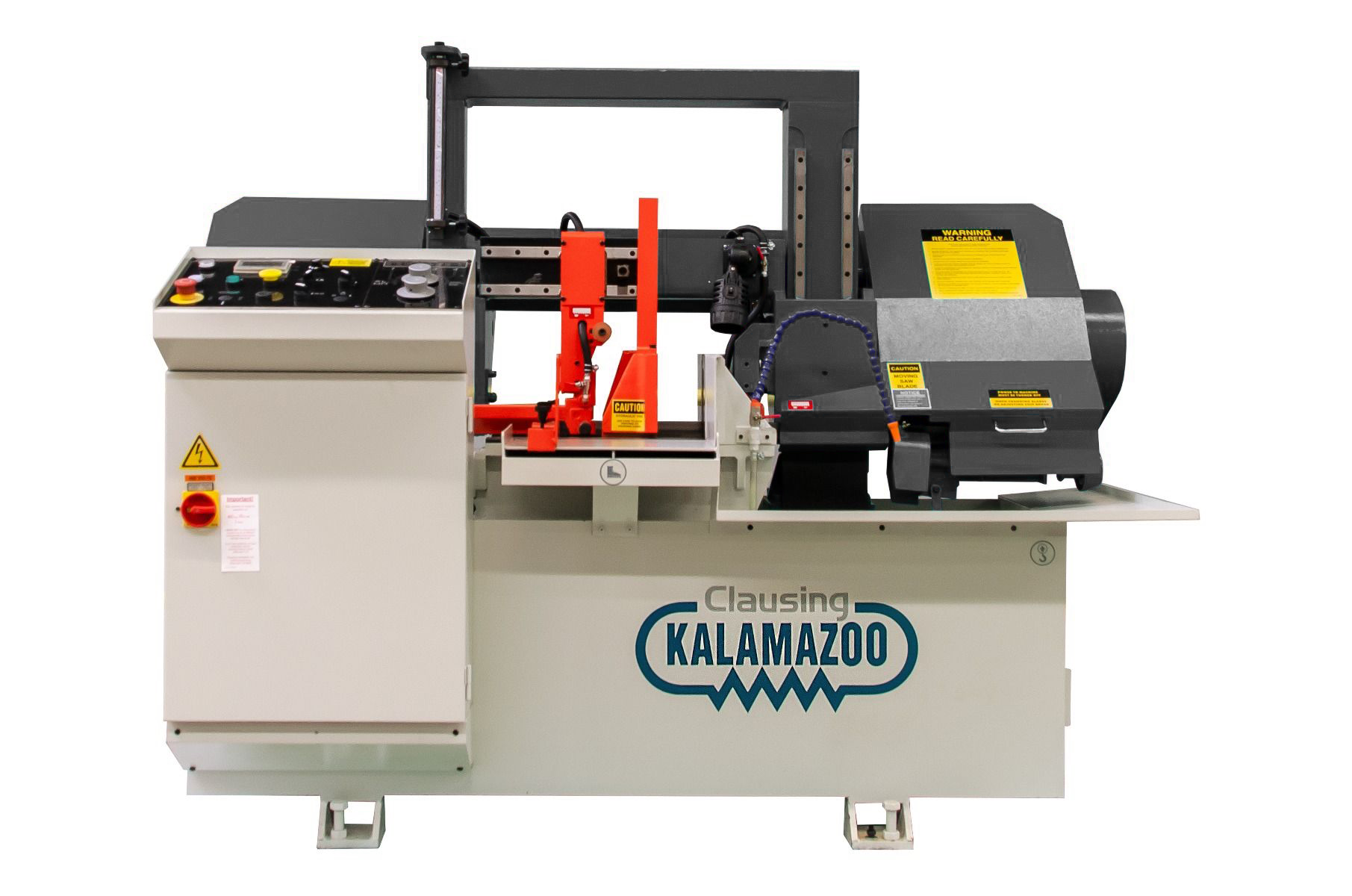

Clausing Kalamazoo 230V Three Phase 10” Semi-Automatic Double-Column Variable-Speed Horizontal Bandsaw H1013SA
$16,896.75Current price is: $16,896.75.
- Blade Size: 1.25” x 0.042” x 161”
- Blade Speeds (variable): 49-262 FPM
- Bed Height: 31.1”
- Coolant Capacity: 10.57 gallons
Clausing Kalamazoo 230V Three Phase 10” Semi-Automatic Double-Column Variable-Speed Horizontal Bandsaw H1013SA is a Clausing Industrial product in the Band Saws collection.
Product Details
- Blade Size: 1.25” x 0.042” x 161”
- Blade Speeds (variable): 49-262 FPM
- Bed Height: 31.1”
- Coolant Capacity: 10.57 gallons
- Description
- This Semi-Automatic Double Column Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance is semi-automatic operation.
- Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
- Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
- Features
- Infinitely variable speed
- Digital blade indicator
- Hydraulic powered chip conveyor
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation and parts manual
- Specifications
- Blade Tension: hydraulic
- Hydraulic Pump Motor: 1 HP
- Hydraulic Oil Capacity: 6.6 gallons
- Coolant: recirculating 1/8HP
- Electrical Requirements: 230V Three Phase 5HP
- Machine Dims: 47” x 78” x 61”
- Approx Weight: 2,100 lbs
- Cutting Capacities @ 90°
- Round: 10.2”
- Square: 10.2”
- Rectangular: 10.2” x 13.4”
- Optional Add-Ons
- Other voltages available (please contact a sales rep for more info)
- Stock Stand Assembly 21”-30” Height (P11)
- Vise Pressure Regulator Single Vise (VP10SA)
- Hydraulic Bundle Clamp (CM1002SA)
- HD Roll Tables, Various Sizes
- SAWZIT 1 Gallon (CSR1)
- SAWZIT 5 Gallon (CSR5)
Specifications
- Manufacturer: Clausing Industrial
- SKU: H1013SA
- Shipping Method: LTL Freight
- Weight: 2,500 lb
- Dimensions: 52 × 83 × 66 in
| Weight | 2500.0 lbs |
|---|---|
| Dimensions | 52.0 × 83.0 × 66.0 in |
| Brand | Clausing Industrial |
