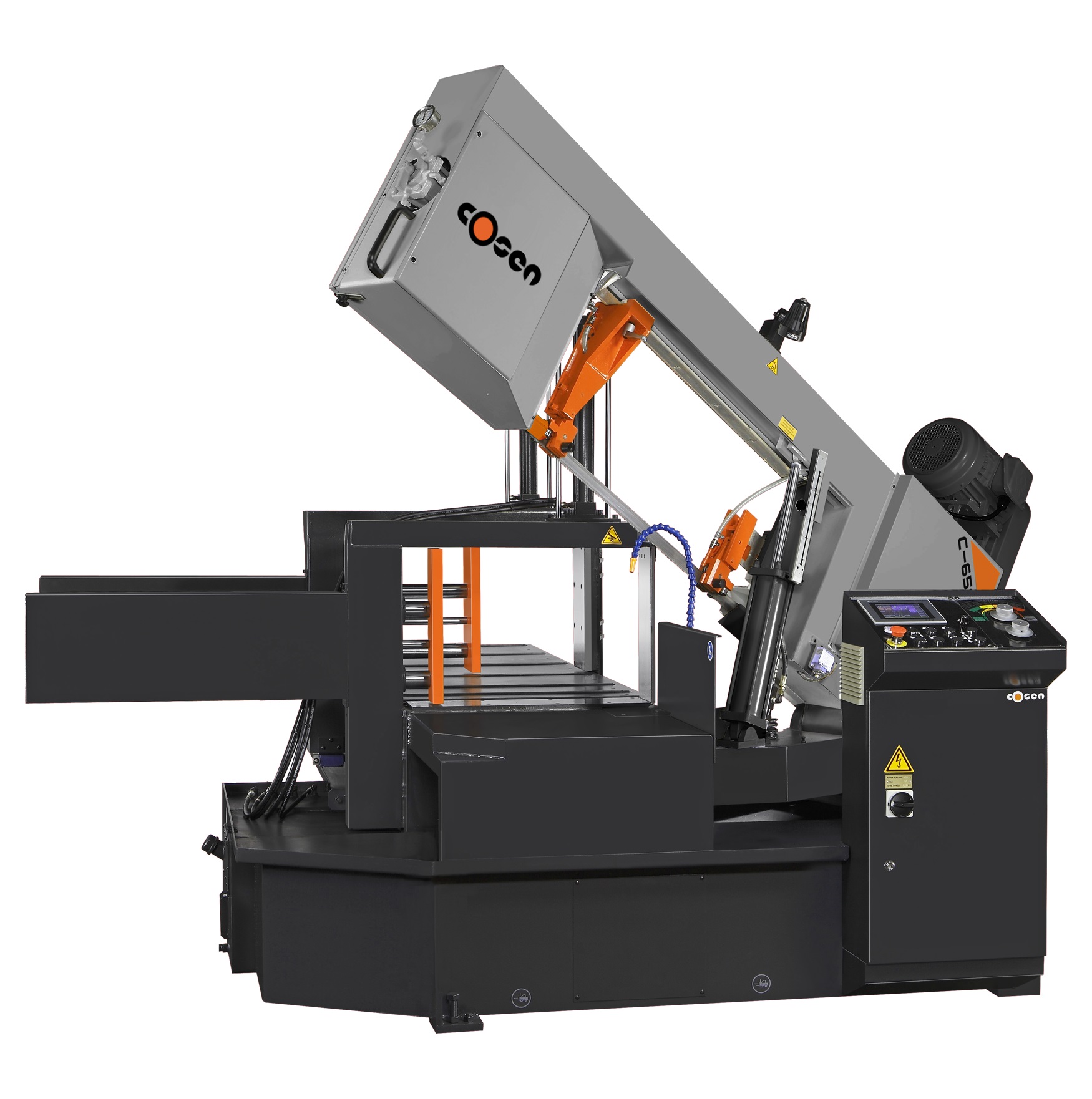

Cosen 16.5” Smart NC-100 Automatic Horizontal Scissor Style Mitering Band Saw C-650MNC
$40,036.75Current price is: $40,036.75.
- Round Capacity at 0°: 16.5”
- Rectangular Capacity at 0°: 15” x 25.6”
- Blade Motor: 7.5 HP
- Workbed Height: 29.5"
Cosen 16.5” Smart NC-100 Automatic Horizontal Scissor Style Mitering Band Saw C-650MNC is a Cosen product in the Band Saws collection.
Product Details
- Round Capacity at 0°: 16.5”
- Rectangular Capacity at 0°: 15” x 25.6”
- Blade Motor: 7.5 HP
- Workbed Height: 29.5"
- Description
- Smart NC-100 (SNC-100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advanced technology, are all words that describe Cosen's C-650MNC production machine, making it the perfect saw for mass fabrication production settings.
- Features
- Allows for straight cutting and miter cutting from 0 to 60 degrees
- Hydraulic cylinder supports the saw head with ball joint
- Gearbox designed to accept high lateral pressure (no thermal distortion)
- Inverter blade drive system which allows infinitely variable blade speeds
- 5.7” HMI touchscreen
- Adjustable flood coolant system
- Motor driven, synchronized wire blade brush
- Carbide blade guides and bearings provides additional blade support
- Rigid cast-iron guide arms
- Automatic hydraulic blade tensioning device
- Cast-iron hydraulic vise
- Save-A-Blade feature
- Precision feed pressure and feed rate dual valve system for optimal cutting performance
- Computer controlled multiple indexing up to 999” max length
- Specifications
- Capacity: 0° Angle: Round: 16.5” Rectangular: 15” x 25.6” 45° Angle: Round: 16” Rectangular: 16” x 16” 60° Angle: Round: 10” Rectangular: 16” x 10”
- 0° Angle: Round: 16.5” Rectangular: 15” x 25.6”
- Round: 16.5”
- Rectangular: 15” x 25.6”
- 45° Angle: Round: 16” Rectangular: 16” x 16”
- Round: 16”
- Rectangular: 16” x 16”
- 60° Angle: Round: 10” Rectangular: 16” x 10”
- Round: 10”
- Rectangular: 16” x 10”
- Blade Speed: 66 – 330 FPM
- Blade Size (LxWxT): 17' 5" x 1.5" x .050
- Coolant Motor: 1/8 HP
- Weight: 6,613 lbs
- Floorspace (LxWxH): 114" x 142" 98.4"
Specifications
- Manufacturer: Cosen
- SKU: C-650MNC
- Shipping Method: Flatbed
- Weight: 6,332 lb
- Dimensions: 140 × 90 × 83 in
- Warranty: 1 Year (Parts)
| Weight | 6332.0 lbs |
|---|---|
| Dimensions | 140.0 × 90.0 × 83.0 in |
| Brand | Cosen |
