Dake Model 14CX 120V Single Phase 14” Throat Variable-Speed Multi-Purpose Vertical Bandsaw MB14CX
$1,687.62Current price is: $1,687.62.
- Blade Width: 1/8” – ¾”
- Blade Length: 115”
- Blade Speed (variable): Low: 60-1600 fpm, High: 160-4400 fpm
- Miter Slot: 3/8” – ¾”
Dake Model 14CX 120V Single Phase 14” Throat Variable-Speed Multi-Purpose Vertical Bandsaw MB14CX is a Dake Corporation product in the Band Saws collection.
Product Details
- Blade Width: 1/8” – ¾”
- Blade Length: 115”
- Blade Speed (variable): Low: 60-1600 fpm, High: 160-4400 fpm
- Miter Slot: 3/8” – ¾”
- Description
- Dake’s line of industrial strength, metalworking vertical bandsaws are engineered for long-lasting performance. Offering a model for every job and budget. You are sure to find a bandsaw that meets your shop’s needs. A robust frame construction reduces wobble and vibration assuring precise cuts with fewer errors. The Dake vertical bandsaws provide easy operation with years of trouble-free service.
- Features
- Disc brake with micro switch
- 110V outlet on back for optional light
- Window for safe blade tensioning
- Window for safe blade tracking
- Blade tension guide

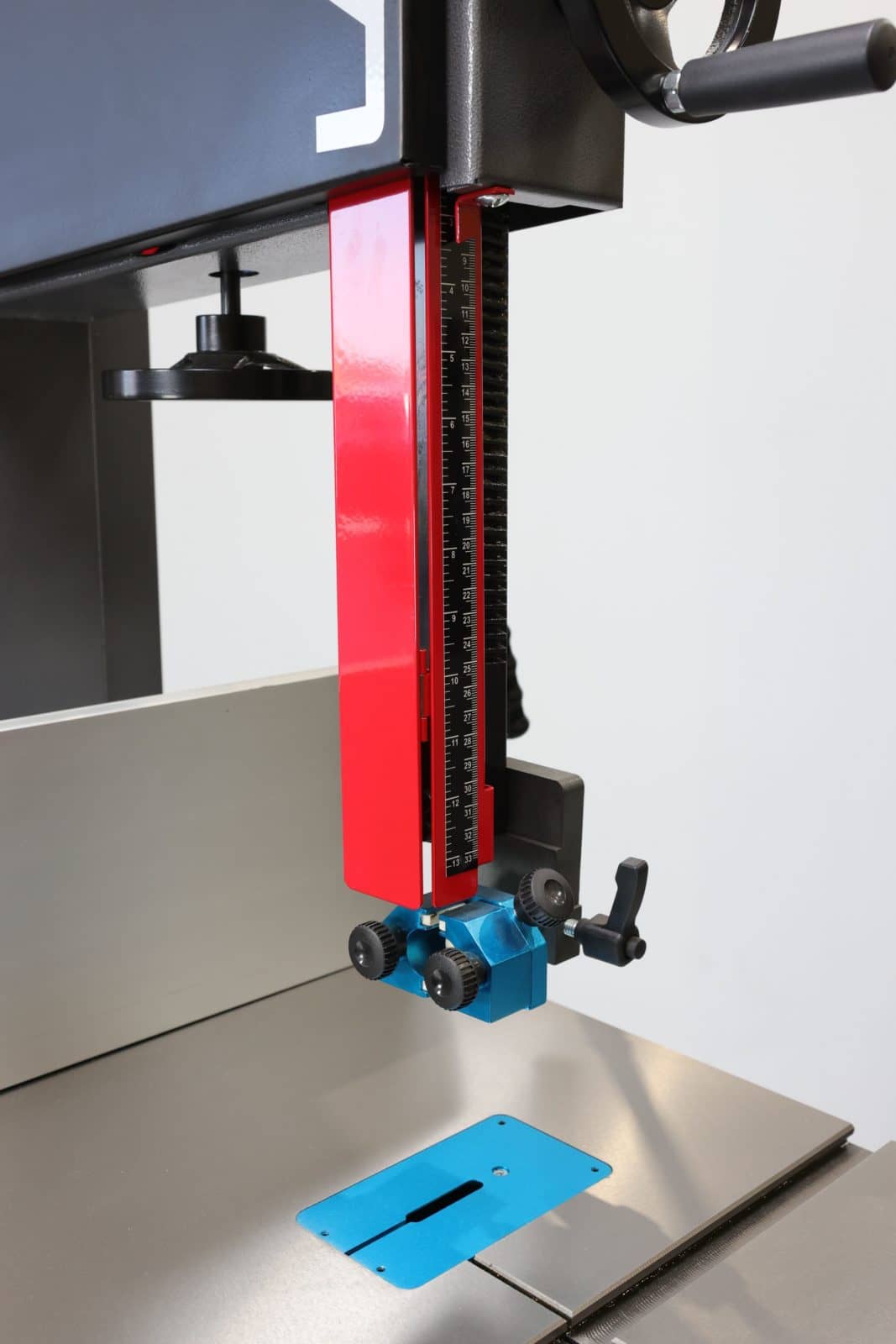

- Worm gear & pinion upper guide
- 10 point ceramic guides

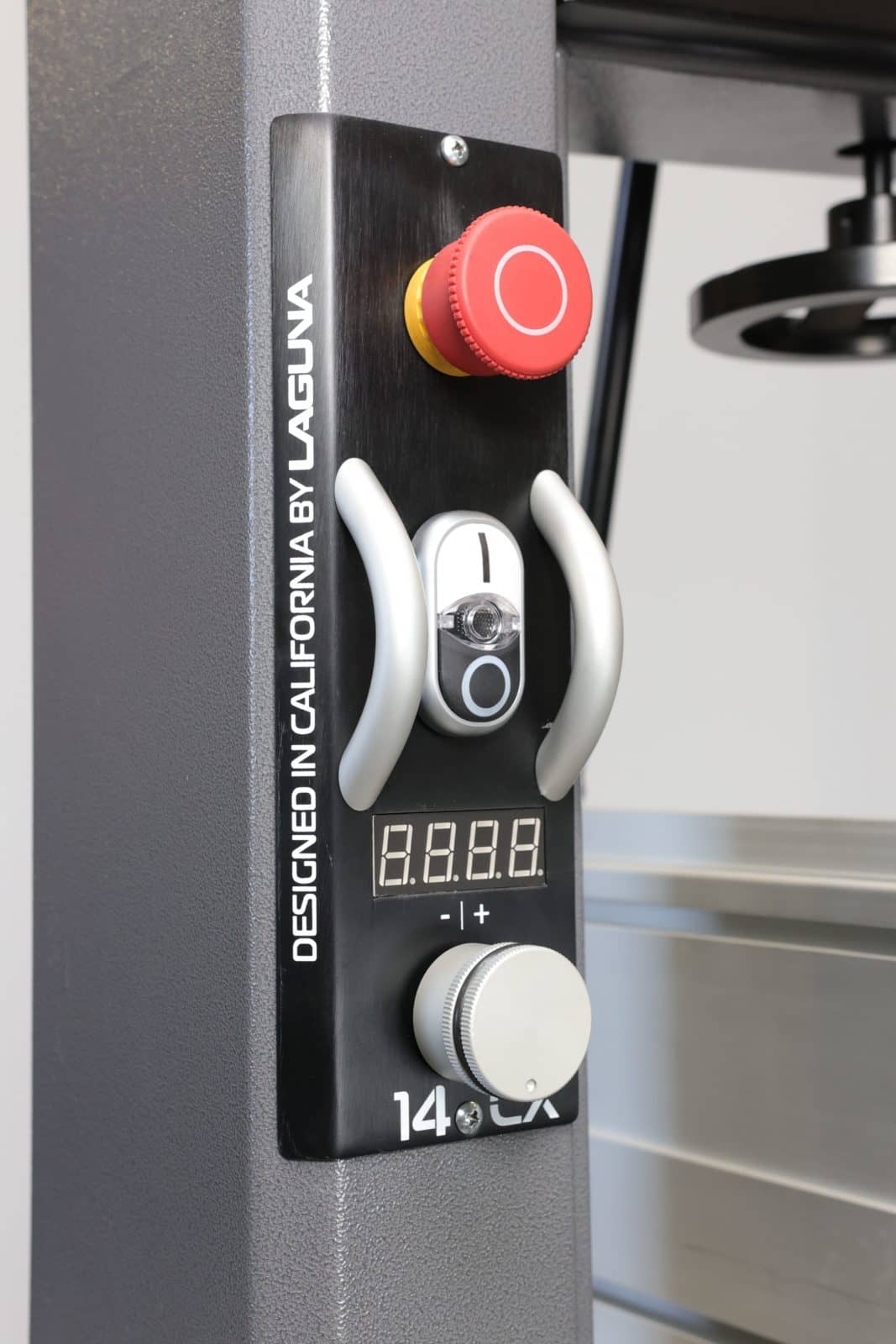

- Electronic variable speed
- Low blade speed: 60-1600 fpm
- High blade speed: 160-4400 fpm
- Dynamically balanced cast iron wheels
- Urethane single piece snap-on tires
- Cast table size: 21.5” x 16”
- Table tilt: 7°, ±45°
- Quick release blade tension
- Dust ports: 4” x 2”
- One bi-metal, metal cutting blade included
- Standard Equipment
- Bi-metal blade
- Specifications
- Band Wheels Number: 2
- Band Wheels Size: 14”
- Throat Size (Band to Column): 14”
- Max Work Height: 12”
- Worktable Dims: 21.5” x 16”
- Worktable Tilt: 7° Left / 45° Right
- Worktable Height: 38”
- Electrical Requirements: 120V Single Phase 1.75HP
- Machine Dims: 33” x 20.5” x 70.5”
- Approx Weight: 286 lbs
- Optional Add-Ons
- LED Bar Light (303852)
- LED Can Light (303815)
- Wheel Kit (MBA 14/12)
Specifications
- Manufacturer: Dake Corporation
- SKU: MB14CX
- Shipping Method: LTL Freight
- Weight: 315 lb
- Dimensions: 48 × 48 × 75 in
| Weight | 315.0 lbs |
|---|---|
| Dimensions | 48.0 × 48.0 × 75.0 in |
| Brand | Dake Corporation |
