DoAll SC-75A Circular Saw SC-75A
$48,797.50Current price is: $48,797.50.
- Cutting Capacity Round: 0.3″ – 3″ (8 – 75mm)
- Cutting Capacity Rectangle: 0.3-2.36″ x 0.3-2.36″ (8 – 60 x 8 – 60mm)
- Blade Motor: 15 HP (11.1 kW)
- Hydraulic Pump Motor: 2 HP (1.47 kW)
DoAll SC-75A Circular Saw SC-75A is a DoALL Sawing Products product in the Band Saws collection.
Product Details
- Cutting Capacity Round: 0.3″ – 3″ (8 – 75mm)
- Cutting Capacity Rectangle: 0.3-2.36″ x 0.3-2.36″ (8 – 60 x 8 – 60mm)
- Blade Motor: 15 HP (11.1 kW)
- Hydraulic Pump Motor: 2 HP (1.47 kW)
- Description

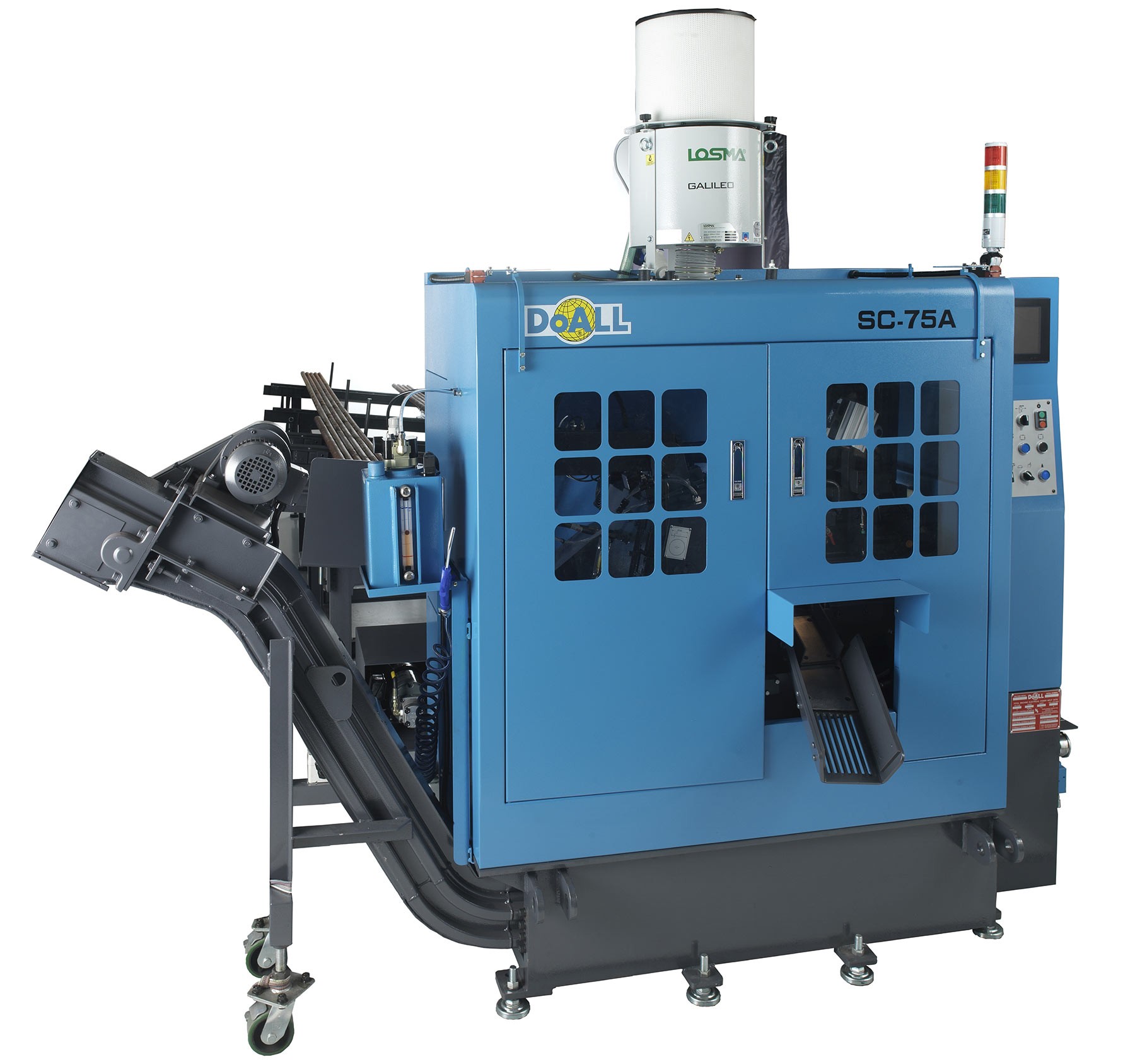

- The DoAll SC-75A circular saw offers automatic operation, numerical control and features solid heavy-duty construction which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life. This automatic cut off, cold saw is designed for cutting a wide range of metals on a high production basis.
- Specifications
- Cutting Capacity Round: 0.3″ – 3″ (8 – 75mm) Cutting Capacity Rectangle: 0.3-2.36″ x 0.3-2.36″ (8 – 60 x 8 – 60mm) Blade Motor: 15 HP (11.1 kW) Hydraulic Pump Motor: 2 HP (1.47 kW) Blade Speed: 30 – 150 rpm (9-45 mpm) Blade Size: 11.2″ (285mm) Blade Width: 0.079″ x 0.069″ (2×1.75mm) Blade and Bar Feed System: Servo Motor and Ball Screw Automatic Feed Length Single: 0.24″ to 24″ (6-600mm) Automatic Feed Length Multiple: 2.4″ to 236″ (60-6000mm) Remnant Length Drop: 2.4" (60mm) Cooling: Air Compressed Oil Mist Machine Weight With Table: 6173 lbs. (2800 kg) Floor Space Required (WxL): 110 x 270″ (2780x6850mm)
Specifications
- Manufacturer: DoALL Sawing Products
- SKU: SC-75A
- Shipping Method: Flatbed
- Weight: 7,200 lb
- Dimensions: 96 × 89 × 84 in
| Weight | 7200.0 lbs |
|---|---|
| Dimensions | 96.0 × 89.0 × 84.0 in |
| Brand | DoALL Sawing Products |
