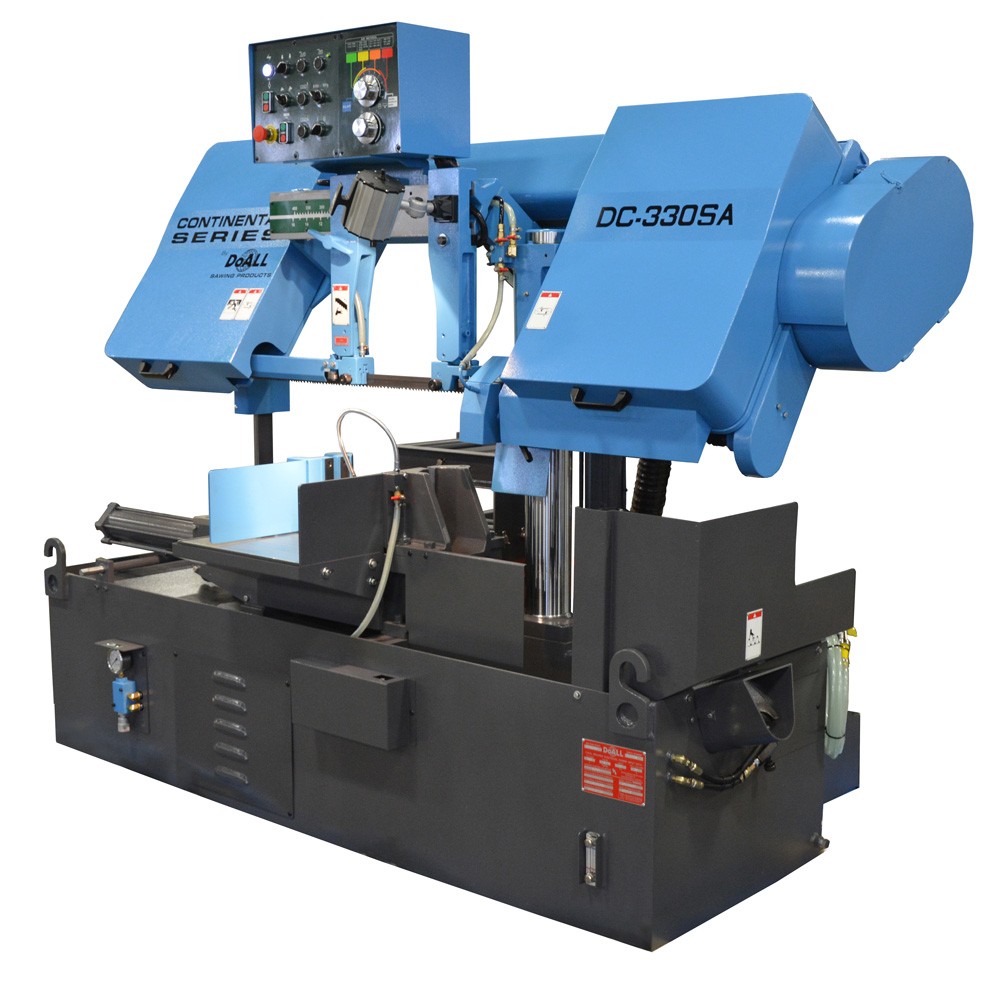

DoAll Semi Automatic Band Saw DC-330SA
$39,680.55Current price is: $39,680.55.
- Band Saw Blade (L x W x Gage): 167 x 1-1/4 x 0.042" (4242x34x1.1mm)
- Band Speed: 66-262 FPM (20 – 80 m/min)
- Machine Weight: 3638 lbs (1650 kg)
- Dimensions W x L x H: 88.2 x 47.6 x 61" (2240 x 1210 x 1550mm)
DoAll Semi Automatic Band Saw DC-330SA is a DoALL Sawing Products product in the Band Saws collection.
Product Details
- Band Saw Blade (L x W x Gage): 167 x 1-1/4 x 0.042" (4242x34x1.1mm)
- Band Speed: 66-262 FPM (20 – 80 m/min)
- Machine Weight: 3638 lbs (1650 kg)
- Dimensions W x L x H: 88.2 x 47.6 x 61" (2240 x 1210 x 1550mm)
- Description
- The DC-330SA Semi-Automatic Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut.
- Specifications
- Cutting Capacity Round: 13″ (330mm) Cutting Capacity Rectangle: 15.75″ x 13″ (400x330mm) Band Saw Blade (L x W x Gage): 167 x 1-1/4 x 0.042" (4242x34x1.1mm) Band Speed: 66-262 FPM (20 – 80 m/min) Band Drive: 5 hp (3.75kW) Hydraulic Pump: 1 hp (.75kW) Hydraulic Tank Capacity: 16 Gal. (60 Liters) Coolant Motor: ¼ hp (0.2 kw) Coolant Tank Capacity: 21 gal (80 L) Material Pass Line Height: 27-1/2″ (700mm) Machine Weight: 3638 lbs (1650 kg) Dimensions W x L x H: 88.2 x 47.6 x 61" (2240 x 1210 x 1550mm)
Specifications
- Manufacturer: DoALL Sawing Products
- SKU: DC-330SA
- Shipping Method: Flatbed
- Weight: 4,020 lb
- Dimensions: 95 × 90 × 67 in
| Weight | 4020.0 lbs |
|---|---|
| Dimensions | 95.0 × 90.0 × 67.0 in |
