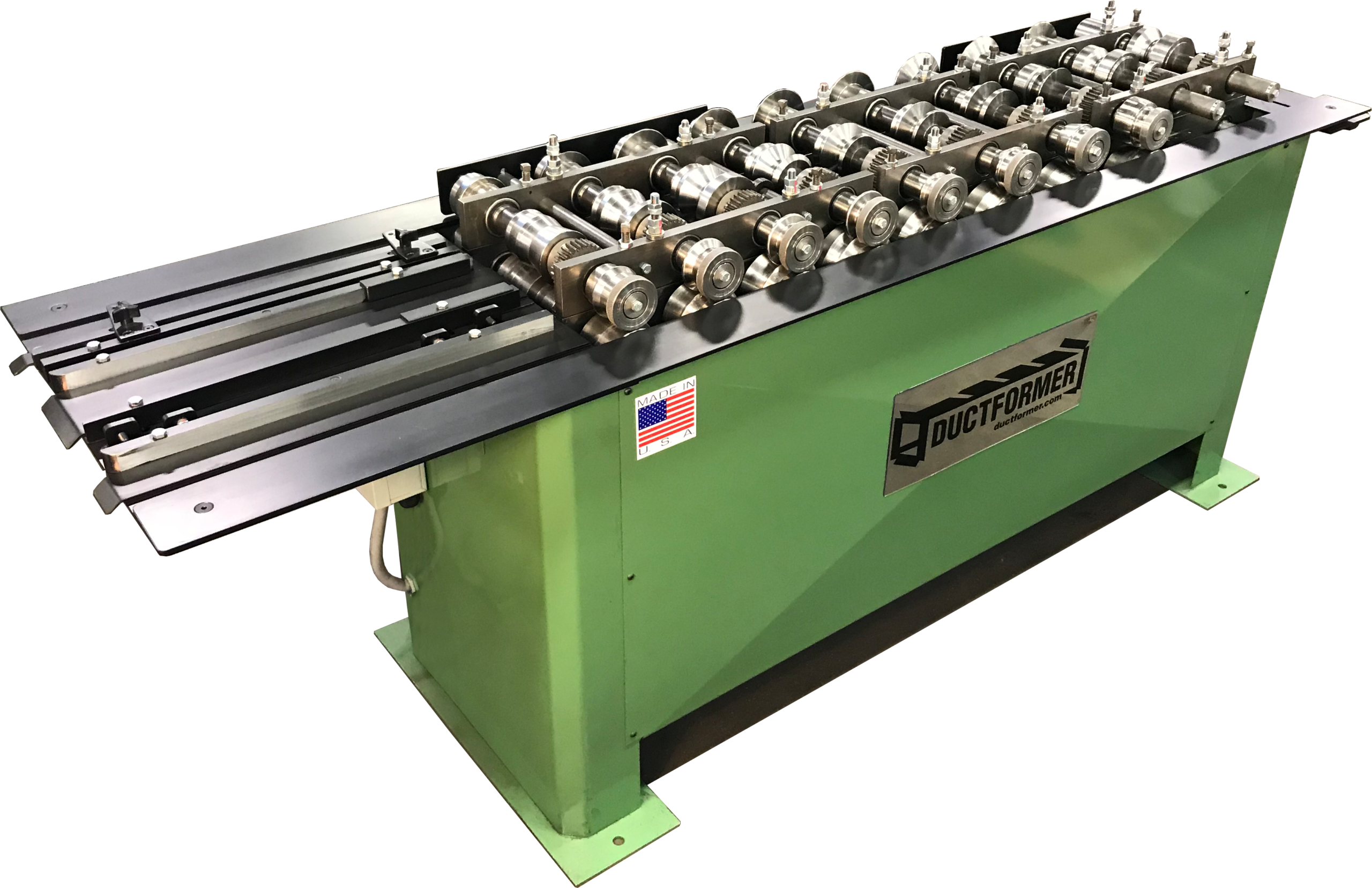

Ductformer 5HP 220V Three Phase Standing S Rollformer CR10-SS
$25,155.00Current price is: $25,155.00.
- Motor: 5HP 220V Three Phase
- Line Speed: 50 FPM
- Gauge Capacity: 20-26 Ga
- 24” Full Hardened Tool Steel Guides
Ductformer 5HP 220V Three Phase Standing S Rollformer CR10-SS is a Ductformer product in the Metal Forming & Shaping collection.
Product Details
- Motor: 5HP 220V Three Phase
- Line Speed: 50 FPM
- Gauge Capacity: 20-26 Ga
- 24” Full Hardened Tool Steel Guides
- Description
- The Ductformer CR10-SS forms the Standing-S profile from pre-cut strips. The Standing-S profile is similar to a standard S-Slip or Flat S section but incorporates a 1 ¼” tall vertical leg that provides additional strength and rigidity to the ductwork. As with all Ductformer rollformers, the quality of the CR10-SS can be observed as soon as the power is turned on. The silence of the machine while running reveals that the precision workmanship and superior design will guarantee years of dependable service.
- Features
- All Sealed Roller Bearings
- Heavy Duty Oil Bath Gear Reducer
- All Gear Drive
- High Efficiency Motor
- Specifications
- Dimensions: 94”L x 42”W x 46”H
- Weight: 1,700 lbs
- Options
- 5/8” Standing S
- 1/2” Standing S
Specifications
- Manufacturer: Ductformer
- SKU: CR10-SS (220V)
- Shipping Method: Flatbed
- Weight: 1,700 lb
- Dimensions: 94 × 42 × 46 in
- Country of Origin: United States of America
| Weight | 1700.0 lbs |
|---|---|
| Dimensions | 94.0 × 42.0 × 46.0 in |
| Brand | Ductformer |
